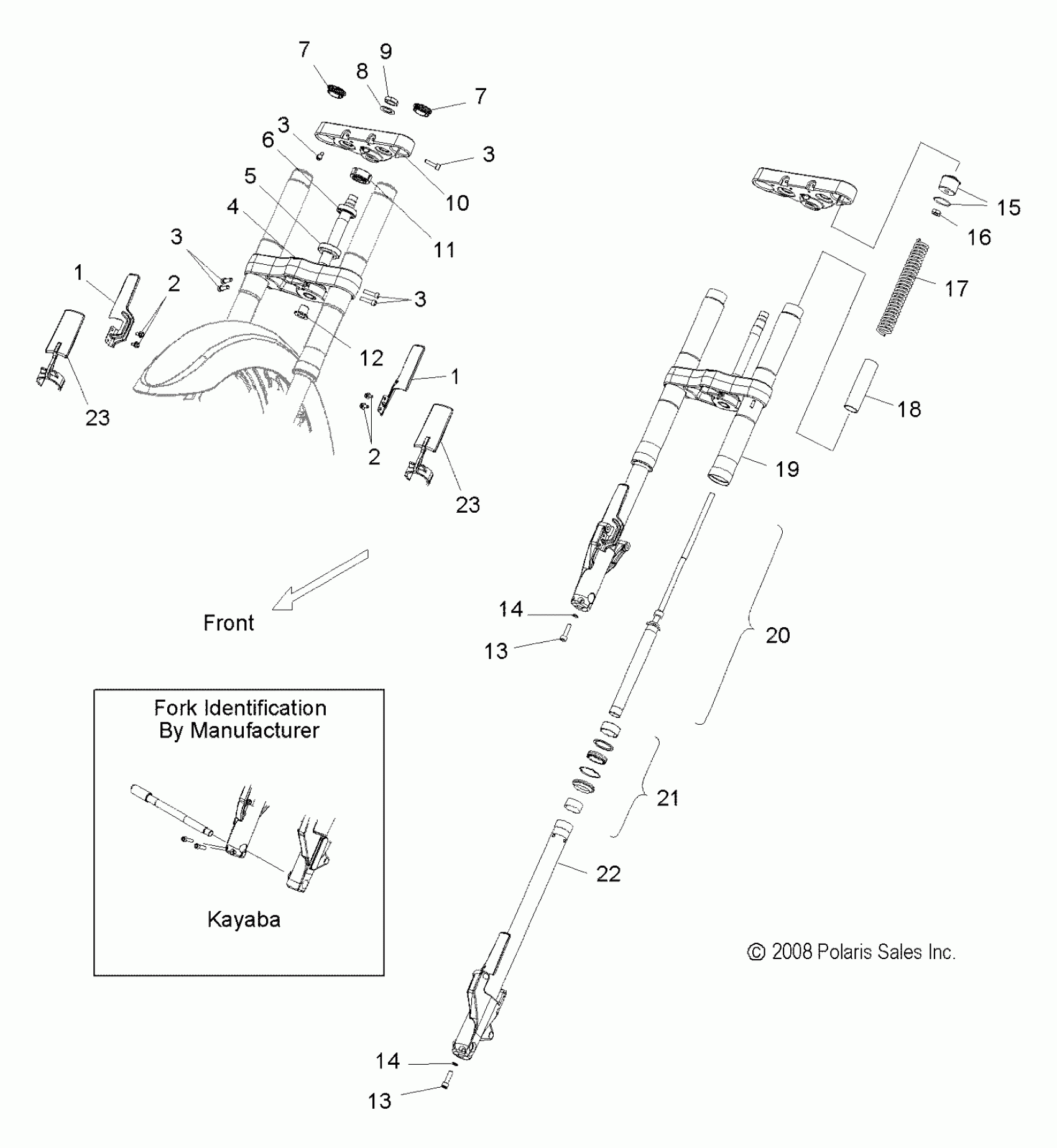

Polaris HAMMER/SPORT/8 BALL ALL OPTIONS - V10HB36DD/HS36DC/BB26DA SUSPENSION, FRONT FORKS, KAYABA - V10HB36DD/HS36DC/BB26DA ALL OPTIONS (49VICFORKS10KPK) Diagram

#

Description
Price

-

Asm., Fork, RH, Black Anodized Alum [8 Ball]

1823371-1261

Unavailable

-

Asm., Fork w/Bracket, LH, Black Anodized Alum [8 Ball]

1823369-1261

$1,124.99

-

Asm., Fork w/Bracket, LH, Bru

1823369-411

Unavailable

-

Asm., Fork, w/Bracket, RH, Black and Zinc [Sport]

1823370-468

$929.99

-

Asm., Fork, w/Bracket, RH, Bru

1823370-411

$365.08

-

Asm., Fork w/Bracket, LH, Black and Zinc [Sport]

1823369-468

$1,019.99

1

Guard, Fork, LH, Black [8 Ball]

5247013-266

Unavailable

1

Guard, Fork, LH, Chrome

5247013-156

$123.02

1

Guard, Fork, RH, Black [8 Ball]

5247014-266

Unavailable

1

Guard, Fork, RH, Chrome

5247014-156

Unavailable

1

Guard, Fork, LH, Black [8 Ball]

5247013-266

Unavailable

1

Guard, Fork, LH, Chrome

5247013-156

$123.02

1

Guard, Fork, RH, Black [8 Ball]

5247014-266

Unavailable

1

Guard, Fork, RH, Chrome

5247014-156

Unavailable

2

SCREW

7517257

$9.52

2

SCREW

7517257

$9.52

3

SCREW

7517361

$23.81

3

SCREW

7517361

$23.81

3

SCREW

7517361

$23.81

3

SCREW

7517361

$23.81

4

Asm., Bracket, Lower, 50mm, Bru [Incl. 3]

1823531-411

$389.99

4

Asm., Bracket, Lower, 50mm, Black [8 Ball][Incl. 3]

1823531-067

$389.99

5

BEARING, NEEDLE

3514416

$35.71

6

BEARING, BALL

3514549

$23.81

7

CAP, CHROME

5132481-156

$11.32

7

CAP, CHROME

5132481-156

$11.32

8

WASHER

7556246

$4.76

9

Nut, Top, Triple Clamp

5134148

$31.75

10

Bracket, 50mm, Upper, Chrome

5135827-156

$376.17

10

Bracket, 50mm, Upper, Bru

5135827-411

$319.99

11

NUT, STEERING HEAD

5631935

$27.78

12

CAP, STEERING STEM

5412473

$4.03

13

BOLT

7519082

$5.56

13

BOLT

7519082

$5.56

14

PACKING

1500798

$7.27

14

PACKING

1500798

$7.27

15

CAP, COMPLETE [INCL. O-RING]

5136807

$44.99

15

SEAL, O-RING

5413723

$36.41

16

NUT

7547446

$4.76

17

SPRING

7043497

Unavailable

18

SPACER

7556495

Unavailable

19

Tube, Outer, Clear

5632271-411

$504.99

19

TUBE, OUTER, BLACK

5632271-468

$540.99

20

CYLINDER COMPLETE

5136804

Unavailable

21

KIT, SEALS AND BUSHING [INCL. BUSHING, WASHER, OIL SEAL, DUST SEAL]

2204214

Unavailable

22

TUBE, INNER, LH, BLACK [INCL. 3]

5136811-067

$669.99

22

Tube, Inner, LH, Chrome [Incl. 3]

5136811-156

$559.99

22

Tube, Inner, LH, Bru [Incl. 3]

5136811-411

$474.99

22

Tube, Inner, RH, Black, Brake [Incl. 3]

5136809-067

$624.99

22

Tube, Inner, RH, Chrome, Brake [Incl. 3]

5136809-156

$494.99

22

Tube, Inner, RH, Bru, Brake [Incl. 3]

5136809-411

$156.75

23

GUARD, FORK, INV., BLACK

5438430

Unavailable

23

GUARD, FORK, INV., BLACK

5438430

Unavailable
