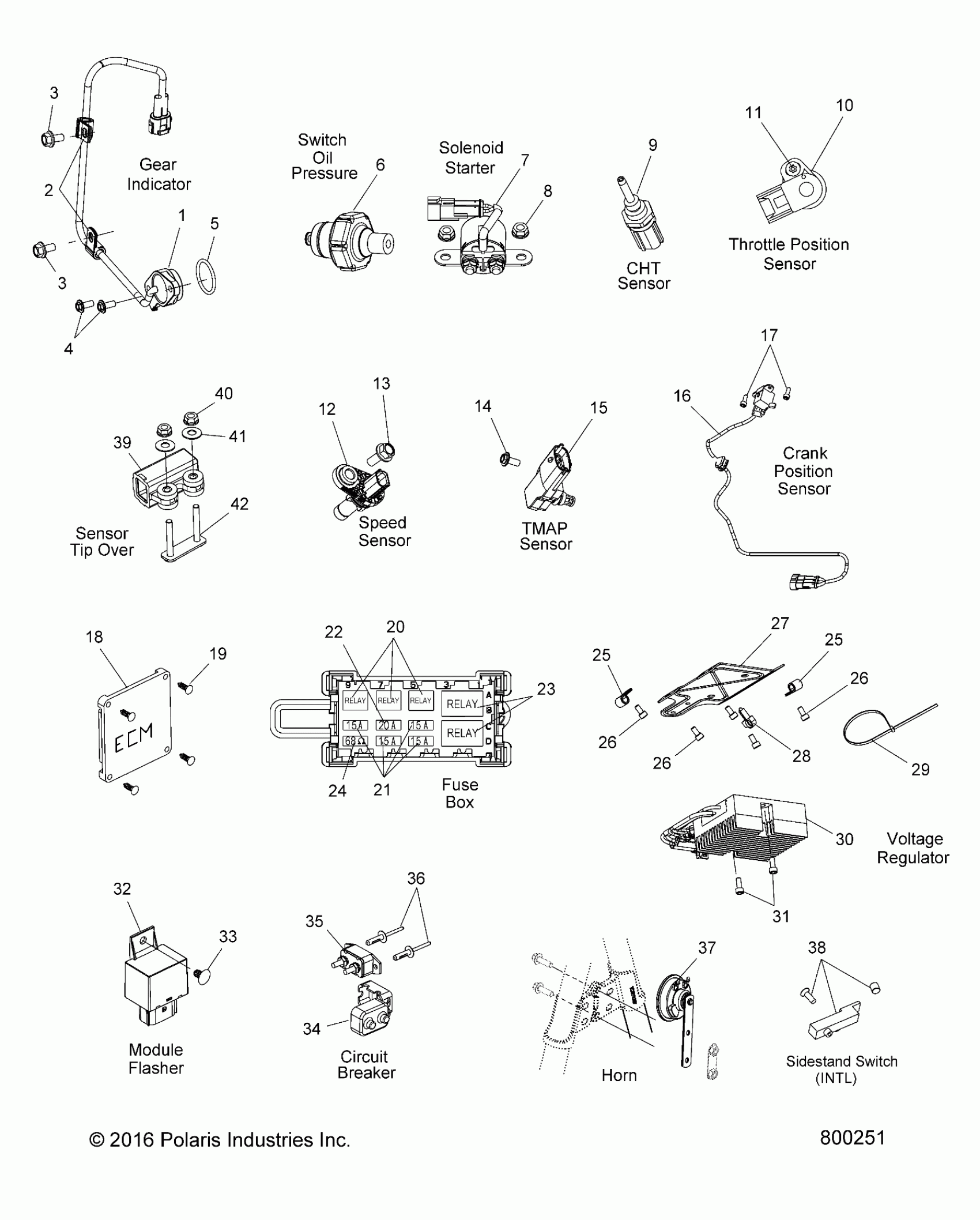

Polaris HAMMER S ALL OPTIONS (R02) - V17CHRAB ELECTRICAL, SWITCHES, SENSORS and COMPONENTS - V17CHRAB ALL OPTIONS (800251) Diagram

#

Description
Price

1

SWITCH, GEAR INDICATOR, N, OD

4013956

$52.60

2

CLAMP-REAR BRAKE

7080983

$4.35

3

Screw

7517278

$5.56

3

Screw

7517278

$5.56

4

SCREW

7518338

$5.99

5

O-RING

5412530

$1.60

6

SWITCH, OIL PRESSURE

4012668

$44.51

7

SOLENOID, STARTER,C1100,W/WASHER

4014471

$47.60

8

Nut

7710495

$5.22

9

SENSOR, CYLINDER HEAD TEMP

4014970

$64.75

10

SENSOR, THROTTLE POSITION

4012101

$519.99

11

SCREW

7518901

$4.76

12

SENSOR, VEHICLE SPEED

4011884

$232.37

13

SCREW

7517750

$10.32

14

SCREW

7518923

$0.79

15

Sensor, T-Map

2410422

$97.13

16

SENSOR, CRANK POSITION

4012280

$135.54

17

SCREW

7518045

$10.32

18

PCM, SERVICE

4015775

$644.99

19

CLIP, PLASTIC DART

7670141

$4.76

20

RELAY-SPST. 12V, 20A

4016186

$36.41

21

FUSE-MINI BLADE,15 AMP

2410280

$8.08

22

FUSE-PARK,20 AMP

2434017

$8.08

23

RELAY-SPST. 12V, 35A

4016299

$40.46

24

RESISTOR, 68 OHM, MINI

4013062

$44.51

25

CLAMP-REAR BRAKE

7080983

$4.35

25

CLAMP-REAR BRAKE

7080983

$4.35

25

CLAMP-REAR BRAKE

7080983

$4.35

26

Screw

7517739

$10.46

26

Screw

7517739

$10.46

27

BRACKET, CONNECTOR, ZINC/BLACK

5248079-408

$67.46

28

Clip

7670102

$2.38

29

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

30

REGULATOR, VOLT, BLACK

4012718

Unavailable

31

SCREW

7517272

$7.84

32

MODULE, FLASHER, 10W

4012103

$114.99

33

CLIP, PLASTIC DART

7670078

$3.79

34

BOOT

4010778

$5.65

35

NUT

7541931

$5.99

35

BREAKER, CIRCUIT

2410332

$32.37

36

Rivet

7081040

$1.19

37

HORN

4012448

$56.65

38

SCR-FLHD-M4X0.7X12MM,TORX [INTL]

7519276

$4.76

38

SWITCH, SIDE STAND [INTL]

4013130

$36.41

38

MAGNET, SIDE STAND [INTL]

4013131

$7.27

38

ASM., SIDE STAND SENSOR [INTL]

1017988

$36.41

39

SENSOR, TIP OVER

4011296

Unavailable

40

Nut

7710495

$5.22

42

PLATE, STUD, M4

1016624

$28.32
