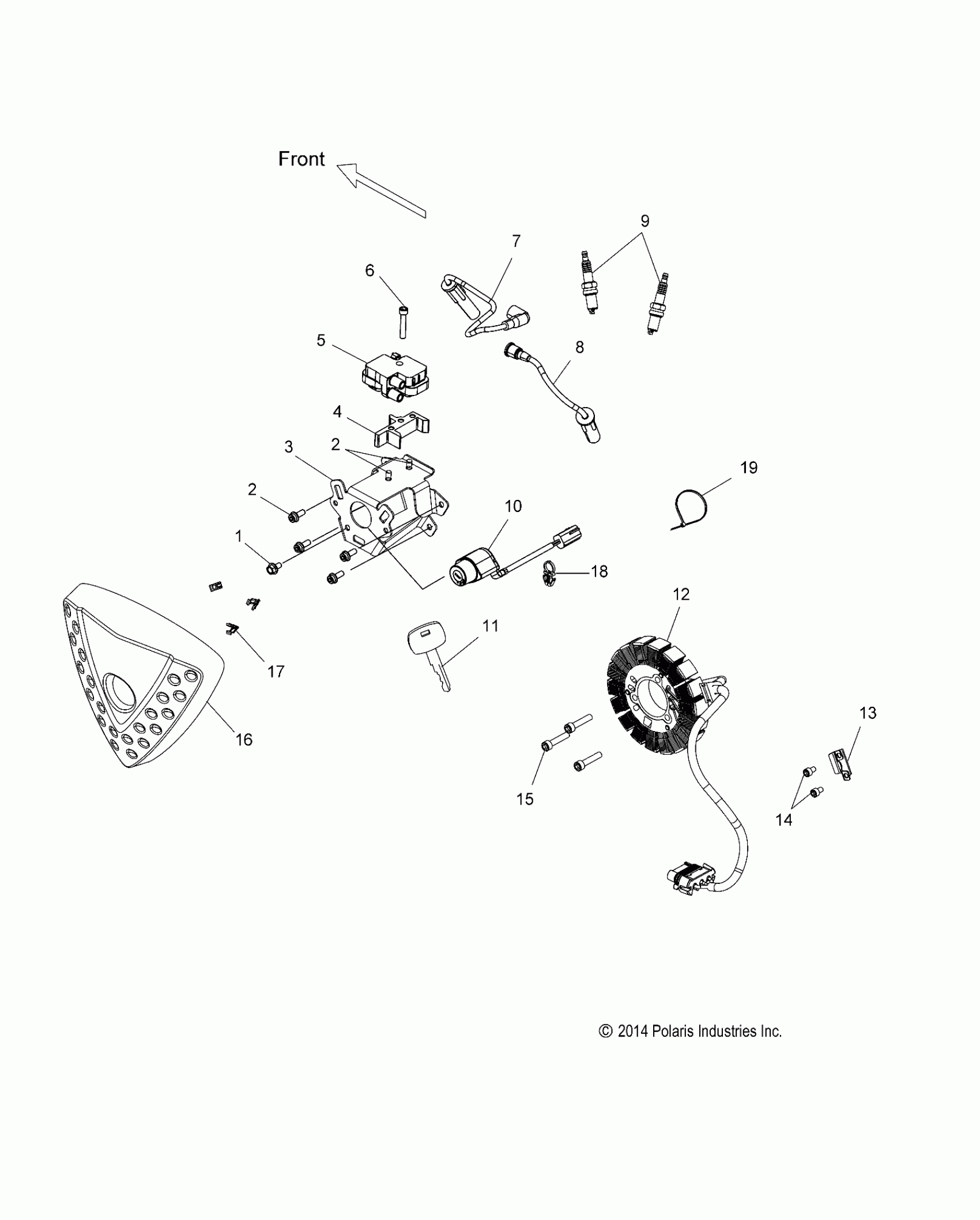

Polaris HAMMER S ALL OPTIONS (R02) - V17CHRAB ELECTRICAL, IGNITION SYSTEM - V17CHRAB ALL OPTIONS (49VICELECT15HMR) Diagram

#

Description
Price

1

SCREW

7517704

$7.19

2

SCREW

7518803

$3.99

2

SCREW

7518803

$3.99

3

BRACKET, IGNITION COIL

5255393

Unavailable

4

SPACER, IGNITION COIL

5510601

Unavailable

5

COIL-EFI

4010425

Unavailable

6

SCREW

7517259

$5.59

7

LEAD, SPARK PLUG [FRONT CYLINDER]

4012733

Unavailable

8

LEAD, SPARK PLUG [REAR CYLINDER]

4012746

Unavailable

9

PLUG, SPARK, DCPR6E

3070202

Unavailable

10

ASM., IGNITION SWITCH/FUEL CAP, BLACK

4012376-266

Unavailable

10

ASM., IGNITION SWITCH/FUEL/FORK LOCK, INTL, BLACK [APLA]

4012377-266

Unavailable

11

KEY, BLANK

4110239

Unavailable

12

STATOR, CHARGING, 20 MAG

4012715

Unavailable

13

CLIP, STATOR WIRE

5251115

Unavailable

14

SCREW

7517847

$3.19

15

SCREW

7517301

$2.39

16

COVER, IGNITION/COIL, TEXT BLACK

5439044

Unavailable

17

CLIP, TINNERMAN

7670136

$2.39

18

CLIP, SNAP-IN

7080756

$4.79

19

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
