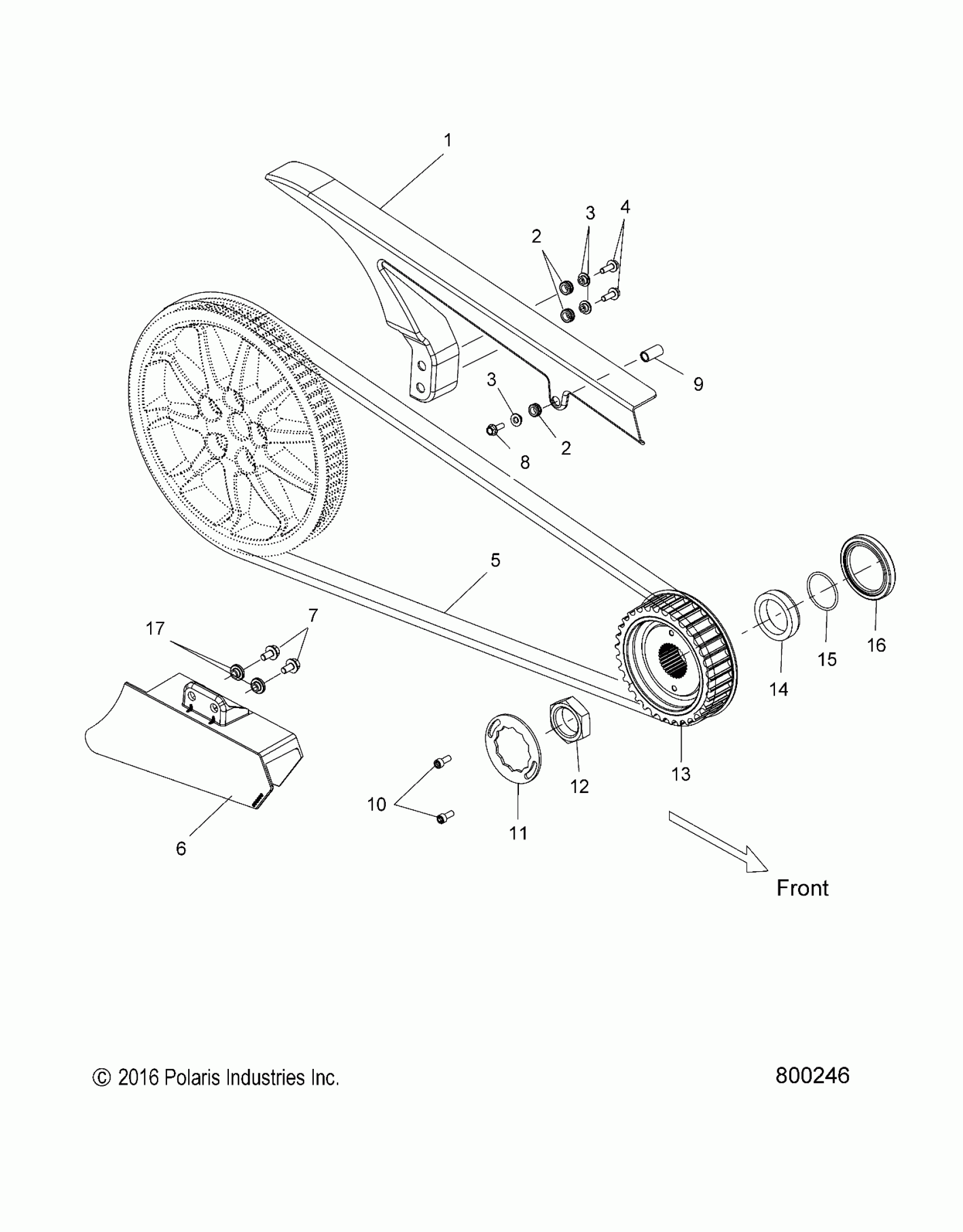

Polaris HAMMER S ALL OPTIONS (R02) - V17CHRAB DRIVE TRAIN, DRIVE SPROCKET and BELT and GUARDS - V17CHRAB ALL OPTIONS (800246) Diagram

#

Description
Price

1

GUARD, BELT, UPPER, BLACK

5247719-521

Unavailable

2

GROMMET

5412265

$3.97

2

GROMMET

5412265

$3.97

3

SLEEVE

5134082

$3.17

3

SLEEVE

5134082

$3.17

4

Screw

7517770

$2.38

5

BELT, DRIVE

3211102

$249.99

6

GUARD, BELT

5438684

$24.27

7

SCREW

7518591

$3.79

8

SCREW

7518147

$4.76

9

SPACER

5135339

$8.89

10

SCREW, HX FLG

7517257

$9.52

11

WASHER, LOCK

5258737

$23.81

12

NUT, HEX, THIN

7547311

Unavailable

13

SPROCKET, DRIVE, 33T RBL, WIDE

3235061

$209.99

14

SPACER, SPROCKET

5137737

$39.68

15

O-RING

5413767

$2.38

16

SEAL, LIP

3610118

$31.75

17

SLEEVE-TURNSIGNAL MOUNT

5134083

$3.17
