- HAMMER/HAMMER SPORT ALL OPTIONS - V09HB36/HS36
WHEELS, REAR - V09HB36/HS36 ALL OPTIONS (49VICWHEELRR09HMR)

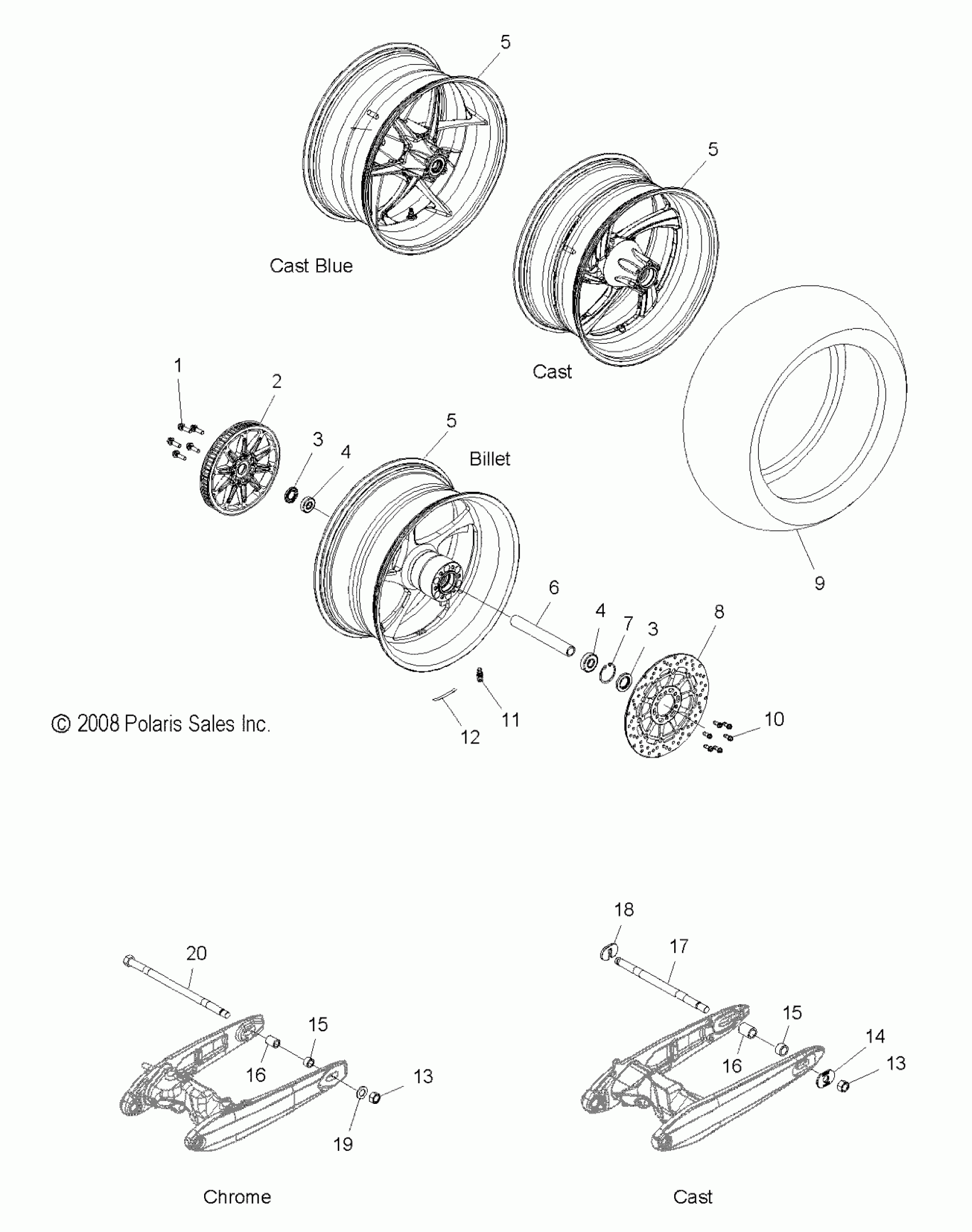

Polaris HAMMER/HAMMER SPORT ALL OPTIONS - V09HB36/HS36 WHEELS, REAR - V09HB36/HS36 ALL OPTIONS (49VICWHEELRR09HMR) Diagram
#
1
SCREW
7518878
Unavailable
2
Asm., Sprocket, Driven, 70T, Silver [Hammer]
1332399-385
Unavailable
2
Asm., Sprocket, Driven, 70T, F Black [Hammer Sport]
1332399-463
$434.99
3
SEAL
3610094
Unavailable
3
SEAL
3610094
Unavailable
4
BEARING, BALL
3514405
Unavailable
4
BEARING, BALL
3514405
Unavailable
5
Asm., Wheel, Rear, Cast, Black [Incl. 3-8,11,12]
1521154-266
Unavailable
5
Asm., Wheel, Rear, Cast, Blue [Incl. 3-8,11,12]
1521319-524
$553.49
5
Asm., Wheel, Rear, Cast, Silver [Incl. 3-8,11,12]
1521154-385
$464.99
5
Asm., Wheel, Rear, Billet, Rear [Incl. 3-8,11,12]
1521036-405
Unavailable
5
Asm., Wheel, Rear, Cast, Black [Incl. 3-8,11,12]
1521154-266
Unavailable
5
Asm., Wheel, Rear, Cast, Blue [Incl. 3-8,11,12]
1521319-524
$553.49
5
Asm., Wheel, Rear, Cast, Silver [Incl. 3-8,11,12]
1521154-385
$464.99
5
Asm., Wheel, Rear, Billet, Rear [Incl. 3-8,11,12]
1521036-405
Unavailable
5
Asm., Wheel, Rear, Cast, Black [Incl. 3-8,11,12]
1521154-266
Unavailable
5
Asm., Wheel, Rear, Cast, Blue [Incl. 3-8,11,12]
1521319-524
$553.49
5
Asm., Wheel, Rear, Cast, Silver [Incl. 3-8,11,12]
1521154-385
$464.99
5
Asm., Wheel, Rear, Billet, Rear [Incl. 3-8,11,12]
1521036-405
Unavailable
6
Spacer, Bearing [Cast Wheel]
5335683
Unavailable
6
Spacer, Bearing [Billet Wheel]
5334450
Unavailable
7
Ring, Retaining
7710526
Unavailable
8
Rotor, Brake [Hammer]
1910959-385
$264.99
8
Rotor, Brake, Black [Hammer Sport]
1910959-266
Unavailable
9
TIRE, REAR
5412522
Unavailable
10
SCREW
7518661
Unavailable
11
Valve, Rim [Cast Wheel]
1521312
Unavailable
11
Valve, Rim, Chrome [Billet Wheel]
1520995
Unavailable
12
Weight, Balance
1520618
Unavailable
13
NUT, HEX
7547226
$23.81
13
NUT, HEX
7547226
$23.81
14
WASHER, INDICATOR, AXLE, ZNC
5248452-236
Unavailable
15
SPACER, LH
5631479
Unavailable
15
SPACER, LH
5631479
Unavailable
16
SPACER, RH
5631581
Unavailable
16
SPACER, RH
5631581
Unavailable
17
Axle, Rear, 250
5135747
Unavailable
18
RETAINER, AXLE, REAR
5248599
Unavailable
19
Washer, Flat
7550001
$3.17
20
Spindle, Wheel, Rear
1014584
Unavailable
