Description

Price

1

SWITCH, GEAR INDICATOR

4010976

Unavailable

2

CLAMP-REAR BRAKE

7080983

$3.99

3

SCREW

7517257

$9.59

4

SCREW

7518338

$4.79

4

SCREW

7518338

$4.79

5

O-RING

5412530

$1.59

6

Switch, Oil Pressure

4010649

Unavailable

7

SOLENOID, STARTER

4012001

Unavailable

8

Nut

7710495

$4.79

9

Sensor, Cylinder Head Temp

4011299

Unavailable

10

SENSOR, THROTTLE POSITION

4012101

Unavailable

11

SCREW

7518901

Unavailable

12

SENSOR, VEHICLE SPEED

4011884

Unavailable

13

SCREW

7517750

Unavailable

14

Sensor, T-Map

2410422

Unavailable

15

SENSOR, CRANK POSITION

4012280

Unavailable

16

SCREW

7518045

$10.39

17

PCM, Service

4012388

$614.99

18

CLIP, PLASTIC DART

7670141

$4.79

19

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

20

FUSE-MINI BLADE,15 AMP

2410280

Unavailable

21

FUSE-IGNITION,10 AMP

2434016

$4.79

22

RELAY, SERIES 301

4011284

$31.99

23

CLAMP-REAR BRAKE

7080983

$3.99

23

CLAMP-REAR BRAKE

7080983

$3.99

24

Screw

7517739

$9.59

24

Screw

7517739

$9.59

24

Screw

7517739

$9.59

25

BRACKET, CONNECTOR, ZINC/BLACK

5248079-408

Unavailable

26

Clip

7670102

$2.39

27

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

28

Regulator, Voltage, Black

4012240

$339.99

28

Regulator, Voltage, Silver

4012241

$339.99

29

SCREW

7517272

$7.19

30

SWITCH-HANDWARMER,SPDT

4011319

$54.99

31

MODULE, FLASHER, 10W

4012103

Unavailable

32

CLIP, PLASTIC DART

7670078

$3.19

33

NUT

7547126

$3.19

34

BOOT

4010778

$5.59

35

BREAKER, CIRCUIT

2410332

Unavailable

36

Rivet

7081040

$1.49

37

SCREW

7518569

$3.99

38

Horn

4011589

Unavailable

39

PLATE, NUT, ZINC BLACK

1014760-408

Unavailable

40

SENSOR, TIP OVER

4011296

Unavailable

41

PLATE, STUD, M4

1016624

Unavailable

42

WASHER, FLAT

7556477

Unavailable

43

FUSE-PARK,20 AMP

2434017

Unavailable

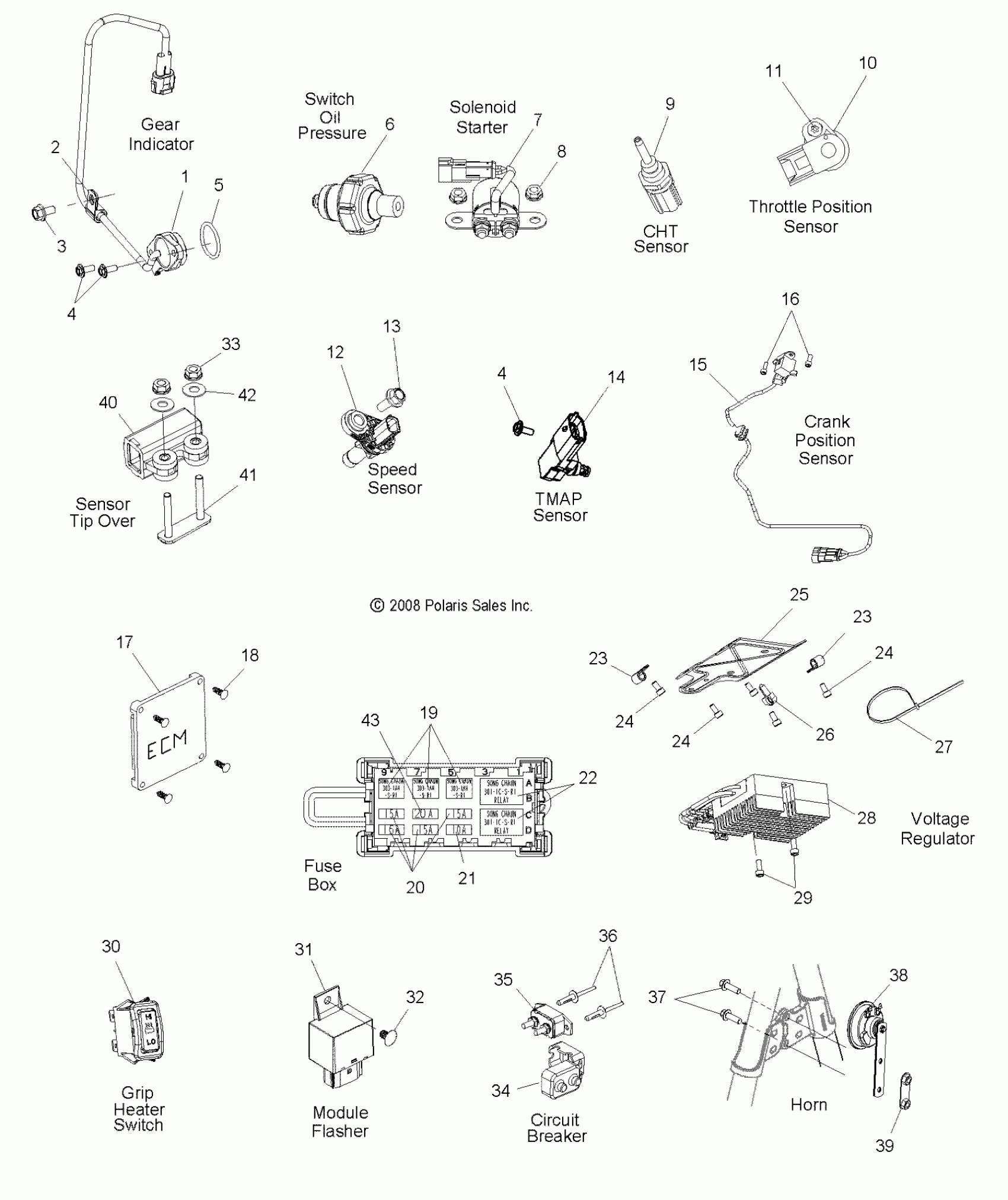

Polaris HAMMER/HAMMER SPORT ALL OPTIONS - V09HB36/HS36 ELECTRICAL, SWITCHES and SENSORS and COMPONENTS - V09HB36/HS36 ALL OPTIONS (49VICSWITCHES09VEGAS) Diagram

SWITCH, GEAR INDICATOR

CLAMP-REAR BRAKE

SCREW

SCREW

SCREW

O-RING

Switch, Oil Pressure

SOLENOID, STARTER

Nut

Sensor, Cylinder Head Temp

SENSOR, THROTTLE POSITION

SCREW

SENSOR, VEHICLE SPEED

SCREW

Sensor, T-Map

SENSOR, CRANK POSITION

SCREW

PCM, Service

CLIP, PLASTIC DART

RELAY-SPST,SERIES 303,SEALED

FUSE-MINI BLADE,15 AMP

FUSE-IGNITION,10 AMP

RELAY, SERIES 301

CLAMP-REAR BRAKE

CLAMP-REAR BRAKE

Screw

Screw

Screw

BRACKET, CONNECTOR, ZINC/BLACK

Clip

CABLE-TIE,DIA12-50MM,WTHR-RES.

Regulator, Voltage, Black

Regulator, Voltage, Silver

SCREW

SWITCH-HANDWARMER,SPDT

MODULE, FLASHER, 10W

CLIP, PLASTIC DART

NUT

BOOT

BREAKER, CIRCUIT

Rivet

SCREW

Horn

PLATE, NUT, ZINC BLACK

SENSOR, TIP OVER

PLATE, STUD, M4

WASHER, FLAT

FUSE-PARK,20 AMP
