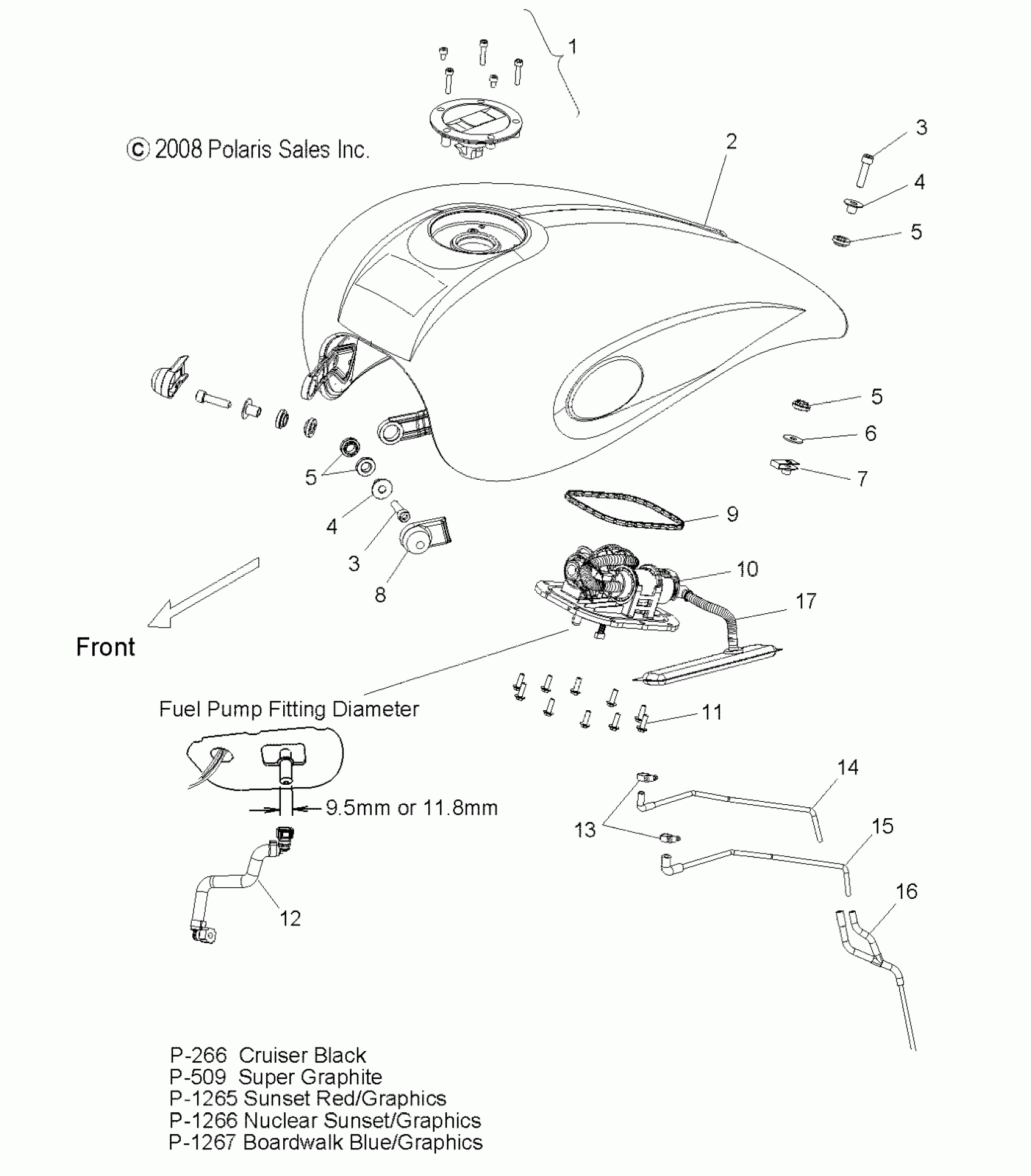

Polaris HAMMER/HAMMER SPORT ALL OPTIONS - V09HB36/HS36 BODY, FUEL TANK - V09HB36/HS36 ALL OPTIONS (49VICFUEL09HMR) Diagram

#

Description
Price

1

SCREW

7518086

$5.56

1

SCREW

7517515

$8.71

1

SCREW

7517845

$5.56

1

Asm., Ignition/Fuel Cap, Silver

4011080-385

Unavailable

1

Asm., Ignition/Fuel Cap, Black

4011080-266

$285.62

2

Tank, Fuel, No Spine [Hammer Sport]

1015932-1267

Unavailable

2

Tank, Fuel, No Spine

1015932-266

$2,119.99

2

Tank, Fuel, No Spine

1015932-509

$1,999.99

2

Tank, Fuel, No Spine

1015932-1265

$2,059.99

2

Tank, Fuel, No Spine

1015932-1266

$2,259.99

3

SCREW

7517525

$4.35

3

SCREW

7517525

$4.35

4

BUSHING, FLANGE

5136665

$8.73

4

BUSHING, FLANGE

5136665

$8.73

5

Bushing

5412480

$3.17

5

Bushing

5412480

$3.17

5

Bushing

5412480

$3.17

6

Washer, Flat

7556260

$10.32

7

U-NUT

7547233

$10.32

8

COVER, MOUNT, LH

5412414

$32.37

8

COVER, MOUNT, RH

5412415

$32.37

9

SEAL, FUEL, MOLDED

5413346

$23.81

10

PUMP, FUEL

2521169

$409.99

11

SCREW

7518923

$0.79

12

Line, Fuel, Tank to Fuel Rail [For 11.8 mm Fuel Tank Fitting]

5414150

Unavailable

12

Line, Fuel, Tank to Fuel Rail [For 9.5 mm Fuel Tank Fitting]

5413413

$89.03

13

CLAMP, HOSE

7081151

$7.14

14

LINE, WATER DRAIN

5435764

Unavailable

15

LINE, FUEL VENT

5437376

Unavailable

16

LINE, WATER/FUEL TO GROUND

5435771

$71.41

17

ASM., FILTER, FUEL

2520909

$114.99
