- HAMMER ALL OPTIONS - V11HA36/HB36/HS36
SUSPENSION, FRONT FORKS - V11HA36/HB36/HS36 ALL OPTIONS (49VICFORKS11KP)

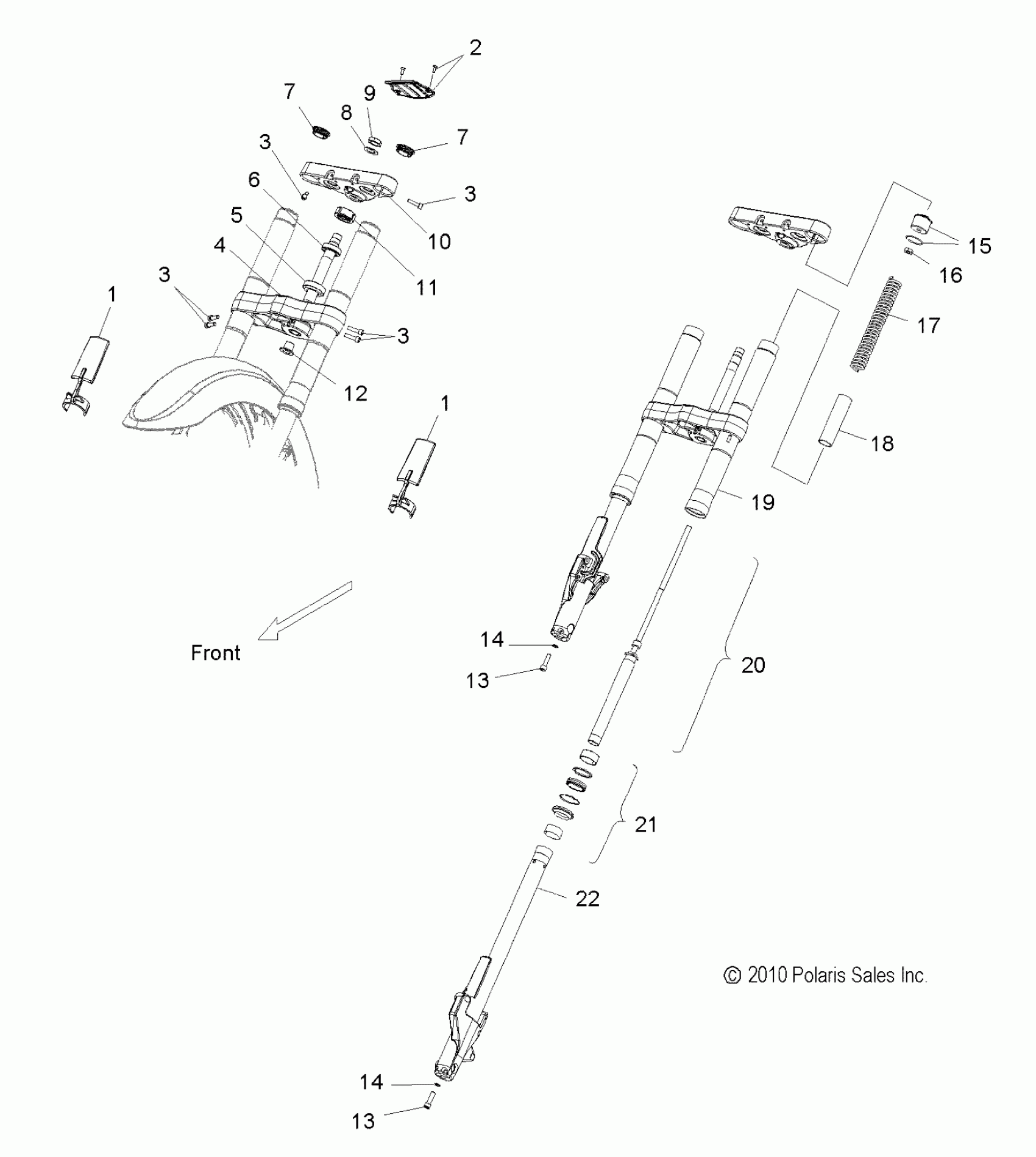

Polaris HAMMER ALL OPTIONS - V11HA36/HB36/HS36 SUSPENSION, FRONT FORKS - V11HA36/HB36/HS36 ALL OPTIONS (49VICFORKS11KP) Diagram
#
-
Asm., Fork w/Brk, LH, Bru [North America]
1823369-411
Unavailable
-
Asm., Fork, w/Brk, RH, Black [Sport]
1823816-1261
Unavailable
-
Asm., Fork, No Brk, RH, Black [8 Ball]
1823817-1261
Unavailable
-
Asm., Fork w/Brk, LH, Black/Black [8 Ball][Sport]
1823815-1261
Unavailable
-
Asm., Fork w/Brk, LH, Bru [Int'l]
1823815-411
Unavailable
-
Asm., Fork, w/Brk, RH, Bru [North America][Int'l]
1823816-411
$929.99
1
GUARD, FORK, INV., CHROME
5438283
Unavailable
1
GUARD, FORK, INV., BLACK
5438430
Unavailable
1
GUARD, FORK, INV., CHROME
5438283
Unavailable
1
GUARD, FORK, INV., BLACK
5438430
Unavailable
2
SCREW
7518144
Unavailable
2
COVER, TRIPLE CLAMP, CHROME
5438513-156
Unavailable
3
SCREW
7517361
$23.99
3
SCREW
7517361
$23.99
3
SCREW
7517361
$23.99
3
SCREW
7517361
$23.99
4
Asm., Bracket, Lower, 50mm, Bru [Incl. 3]
1823531-411
$389.99
4
Asm., Bracket, Lower, 50mm, Black [Incl. 3]
1823531-067
Unavailable
5
BEARING, NEEDLE
3514416
Unavailable
6
BEARING, BALL
3514549
Unavailable
7
CAP, CHROME
5132481-156
Unavailable
7
CAP, CHROME
5132481-156
Unavailable
8
WASHER
7556246
Unavailable
9
Nut, Top, Triple Clamp
5134148
Unavailable
10
Bracket, 50mm, Upper, Chrome
5135827-156
$376.17
10
Bracket, 50mm, Upper, Bru
5135827-411
$319.99
11
NUT, STEERING HEAD
5631935
Unavailable
12
CAP, STEERING STEM
5412473
Unavailable
13
BOLT
7519082
Unavailable
13
BOLT
7519082
Unavailable
14
PACKING
1500798
Unavailable
14
PACKING
1500798
Unavailable
15
CAP, COMPLETE [INCL. O-RING]
5136807
Unavailable
15
SEAL, O-RING
5413723
Unavailable
16
NUT
7547446
Unavailable
17
SPRING
7043497
Unavailable
18
SPACER
7556495
Unavailable
19
Tube, Outer, Clear
5632271-411
$504.99
19
TUBE, OUTER, BLACK
5632271-468
Unavailable
20
CYLINDER COMPLETE
5136804
Unavailable
21
KIT, SEALS AND BUSHING [INCL. BUSHING, WASHER, OIL SEAL, DUST SEAL]
2204214
Unavailable
22
TUBE, INNER, LH, BLACK [INCL. 3]
5136811-067
Unavailable
22
Tube, Inner, LH, Bru [Incl. 3]
5136811-411
$474.99
22
TUBE, INNER, RH, BLACK [INCL. 3]
5137583-067
Unavailable
22
Tube, Inner, RH, Bru [Incl. 3]
5137583-411
$424.99
