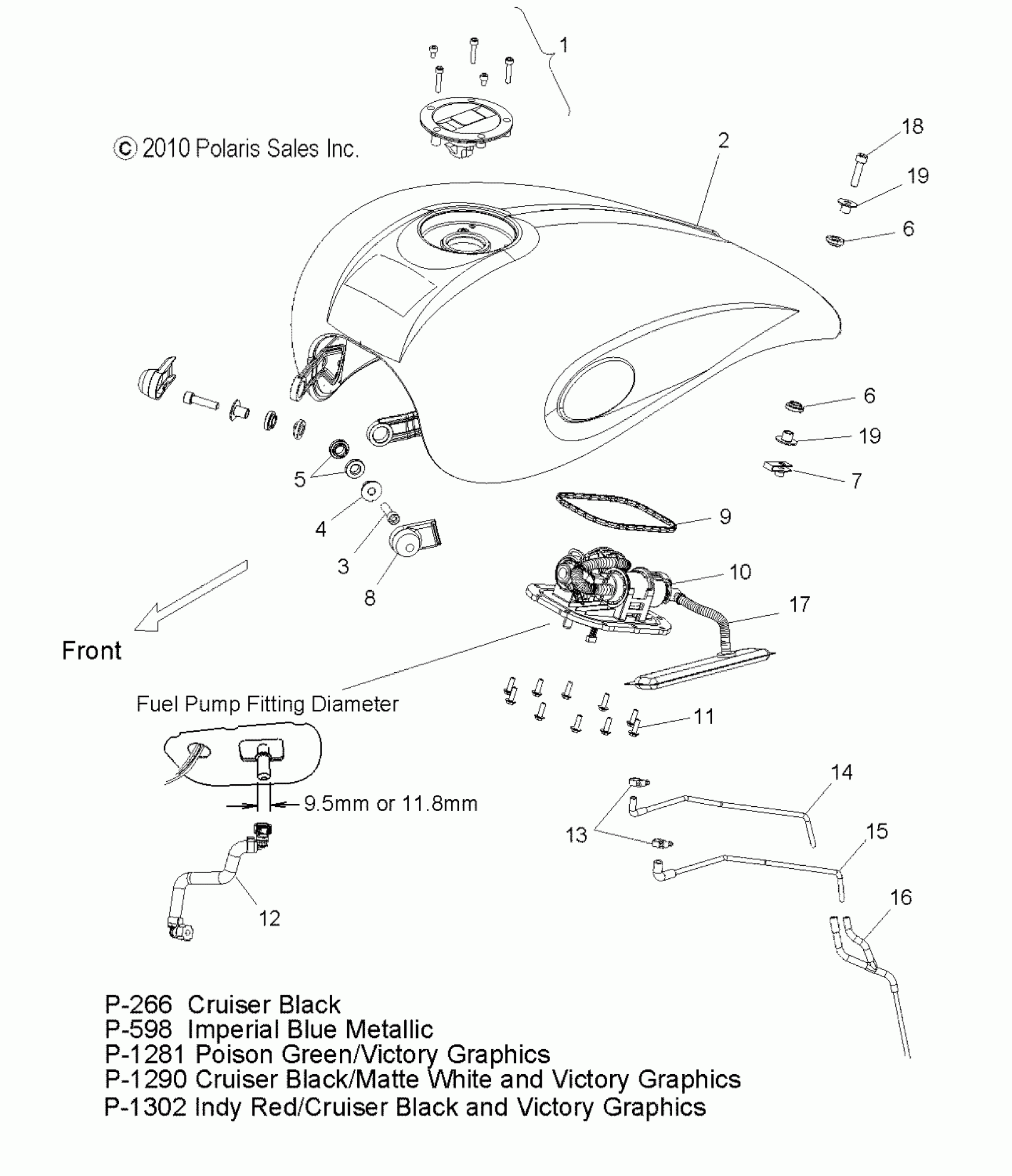

Polaris HAMMER ALL OPTIONS - V11HA36/HB36/HS36 BODY, FUEL TANK - V11HA36/HB36/HS36 ALL OPTIONS (49VICFUEL11HMR) Diagram

#

Description
Price

1

ASM., IGNITION/FUEL CAP, BLACK

4012376-266

$285.62

1

Asm., Ignition/Fuel Cap, Silver [Int'l]

4012377-266

$374.99

1

SCREW

7518086

$5.56

1

SCREW

7517515

$8.71

1

SCREW

7517845

$5.56

2

Tank, Fuel, No Spine

1018004-266

$2,119.99

2

Tank, Fuel, No Spine

1018004-1302

$2,269.99

2

Tank, Fuel, No Spine

1018004-598

$1,524.99

2

Tank, Fuel, No Spine

1018004-1281

$2,649.99

2

Tank, Fuel, No Spine

1018004-1290

$1,559.99

3

SCREW

7517525

$4.35

4

BUSHING, FLANGE

5136665

$8.73

5

Bushing

5412480

$3.17

6

Bushing, Flange

5413491

Unavailable

6

Bushing, Flange

5413491

Unavailable

7

U-NUT

7547233

$10.32

8

COVER, MOUNT, LH

5412414

$32.37

8

COVER, MOUNT, RH

5412415

$32.37

9

SEAL, FUEL, MOLDED

5413346

$23.81

10

PUMP, FUEL

2521169

$409.99

11

SCREW

7518923

$0.79

12

Line, Fuel, Tank to Fuel Rail [For 11.8 mm Fuel Tank Fitting]

5414150

Unavailable

12

Line, Fuel, Tank to Fuel Rail [For 9.5 mm Fuel Tank Fitting]

5413413

$89.03

13

CLAMP, HOSE

7081151

$7.14

14

LINE, WATER DRAIN

5435764

Unavailable

15

LINE, FUEL VENT

5437376

Unavailable

16

LINE, WATER/FUEL TO GROUND

5435771

$71.41

17

ASM., FILTER, FUEL

2520909

$114.99

18

SCREW

7517946

$7.14

19

Bushing, Flange

5137570

$39.99

19

Bushing, Flange

5137570

$39.99
