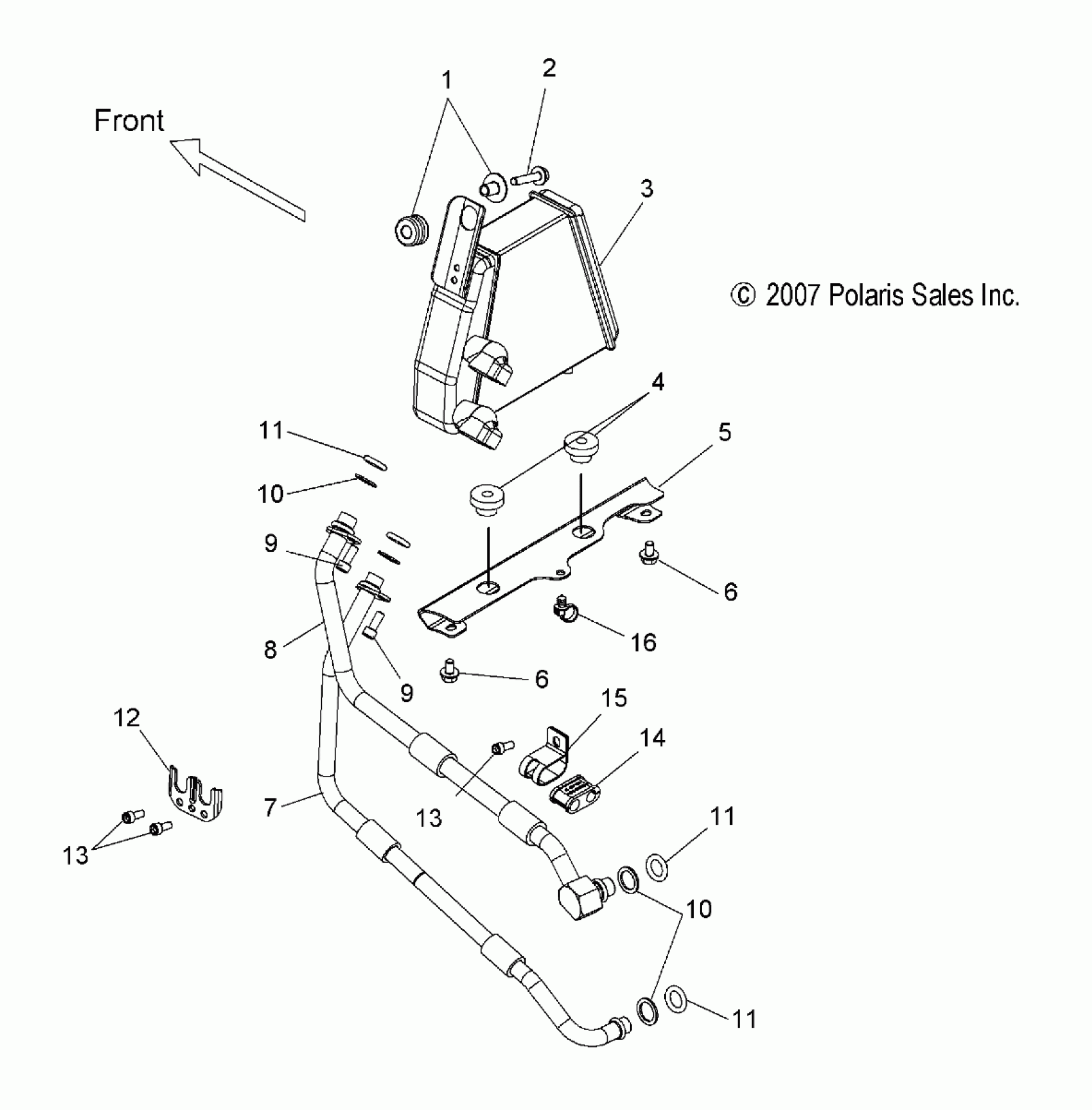

Polaris HAMMER ALL OPTIONS - V08HB26/HS26 ENGINE, OIL COOLING SYSTEM - V08HB26/HS26 ALL OPTIONS (49VICOILCOOLING08VEGAS) Diagram

#

Description
Price

1

ASM., GROMMET AND INSERT

1016169

$8.08

2

SCR-HXWHD,THDFRM,M6X30,0600202

7518713

$5.56

3

Cooler, Oil, Black

1240266-266

$481.65

3

Cooler, Oil, Silver

1240266-385

$229.37

4

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

5

BRACKET, OIL COOLER, LOWER, BLACK

5251230-266

$48.56

5

Bracket, Oil Cooler, Lower, Silver

5251230-385

Unavailable

6

SCREW

7518393

$7.84

6

SCREW

7518393

$7.84

7

ASM., OIL LINE, ENGINE OUT

2520780

$72.84

8

ASM., OIL LINE, ENGINE IN

2520781

$105.22

9

SCREW

7517272

$7.84

9

SCREW

7517272

$7.84

10

RING, BACK-UP

7556380

$32.37

10

RING, BACK-UP

7556380

$32.37

11

O-Ring

5411356

$2.41

11

O-Ring

5411356

$2.41

11

O-Ring

5411356

$2.41

12

RETAINER, OIL LINE

5135945

$10.32

13

SCREW

7517405

$10.32

13

SCREW

7517405

$10.32

14

GROMMET, OIL LINE

5437099

$3.17

15

Clamp, Oil Line

7081456

$3.17

16

CABLE-TIE,DIA10-50MM,FIR-TREE

7081334

$1.59
