SUSPENSION, REAR and SWING ARM - V07HB26/HS26 ALL OPTIONS (49VICSUSPRR07HAM)

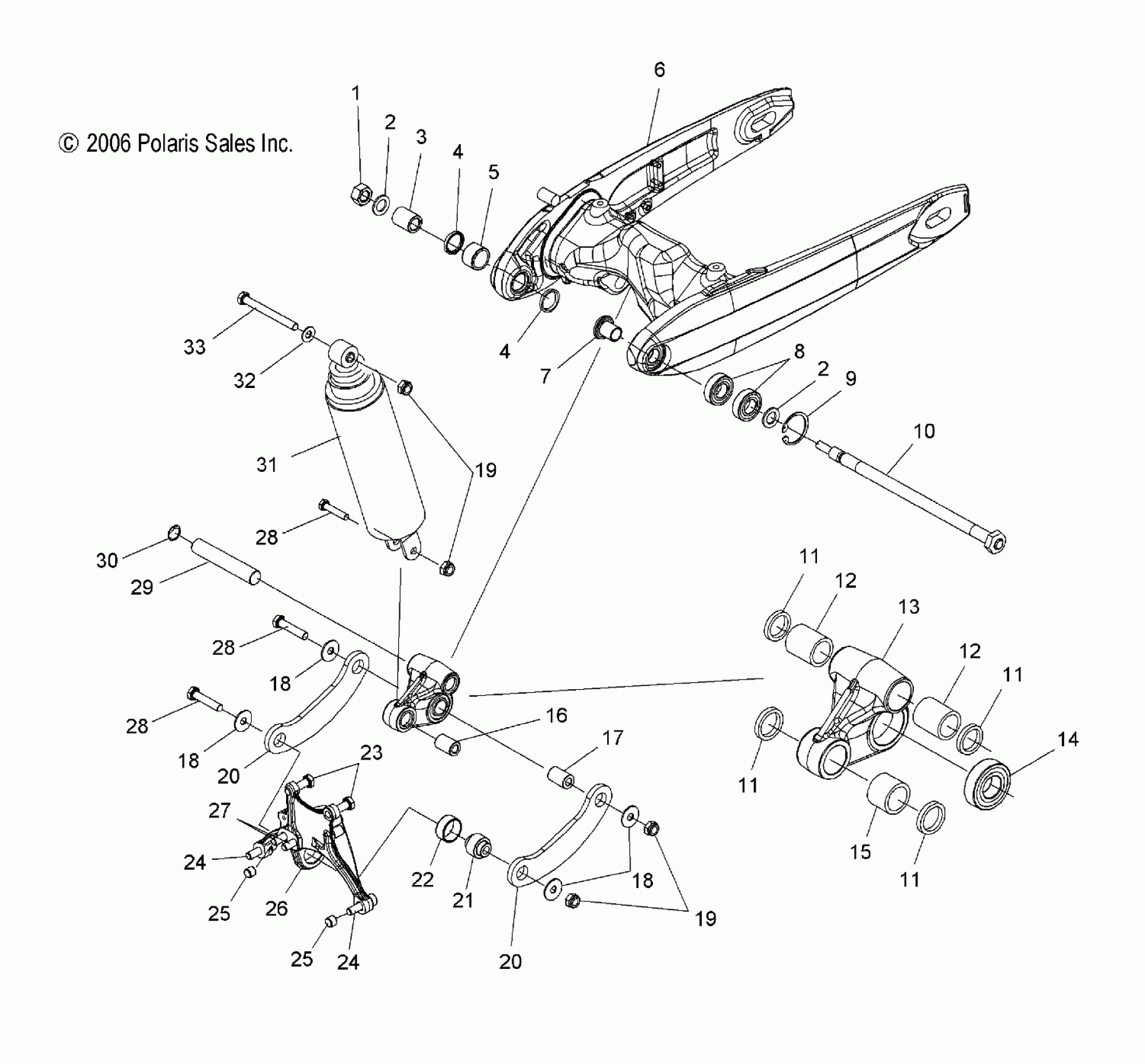

Polaris HAMMER ALL OPTIONS - V07HB26/HS26 SUSPENSION, REAR and SWING ARM - V07HB26/HS26 ALL OPTIONS (49VICSUSPRR07HAM) Diagram
#
1
NUT
7540001
Unavailable
2
WASHER, FLAT
7556236
Unavailable
2
WASHER, FLAT
7556236
Unavailable
3
Bushing
5133475
Unavailable
4
SEAL
3610096
Unavailable
4
SEAL
3610096
Unavailable
5
BEARING
3514413
Unavailable
6
Asm., Swing Arm w/Bearings, F Black [Incl. 4,5,8,9]
1015380-463
Unavailable
6
Asm., Swing Arm w/Bearings, Chrome [Incl. 4,5,8,9]
1015323-156
$929.99
6
Asm., Swing Arm w/Bearings, Silver
1015380-385
$619.49
7
BUSHING
5631478
Unavailable
8
BEARING, BALL
3514414
Unavailable
9
RING, RETAINING
7670149
Unavailable
10
Shaft, Swing Arm Pivot
1014610
Unavailable
11
SEAL
3610095
Unavailable
11
SEAL
3610095
Unavailable
11
SEAL
3610095
Unavailable
11
SEAL
3610095
Unavailable
12
BEARING, NEEDLE
3514411
Unavailable
12
BEARING, NEEDLE
3514411
Unavailable
13
Asm., Rocker w/Brngs [Incl. 11,12,14,15]
1014865
Unavailable
14
BEARING, SPHERICAL
3514439
Unavailable
15
BEARING, NEEDLE
3514412
Unavailable
16
Bushing, Suspension, Short
5133473
Unavailable
17
Shaft, Rocker Pivot
5133807
$36.41
18
Washer, Flat
7556260
Unavailable
18
Washer, Flat
7556260
Unavailable
18
Washer, Flat
7556260
Unavailable
19
NUT, NYLOK
7547268
$1.49
19
NUT, NYLOK
7547268
$1.49
20
LINK, SUSPENSION STRAP
5248523
Unavailable
20
LINK, SUSPENSION STRAP
5248523
Unavailable
21
Bushing, Plain Bearing, Radical Cut
5135465
Unavailable
22
BEARING
3514459
Unavailable
23
SCREW
7517827
$6.39
24
Screw
7518302
$1.49
24
Screw
7518302
$1.49
25
DOWEL
7663008
$5.27
25
DOWEL
7663008
$5.27
26
MOUNT, MINOR PIVOT
5135458-329
Unavailable
27
SCREW
7518202
Unavailable
28
SCREW
7517946
Unavailable
28
SCREW
7517946
Unavailable
28
SCREW
7517946
Unavailable
29
BUSHING
5134101
Unavailable
30
RING, RETAINING
7710544
Unavailable
31
ASM., SHOCK [See Shock, Rear Page for Details]
-------
Unavailable
32
Washer, Flat
7556155
$5.22
33
SCREW
7518206
Unavailable
