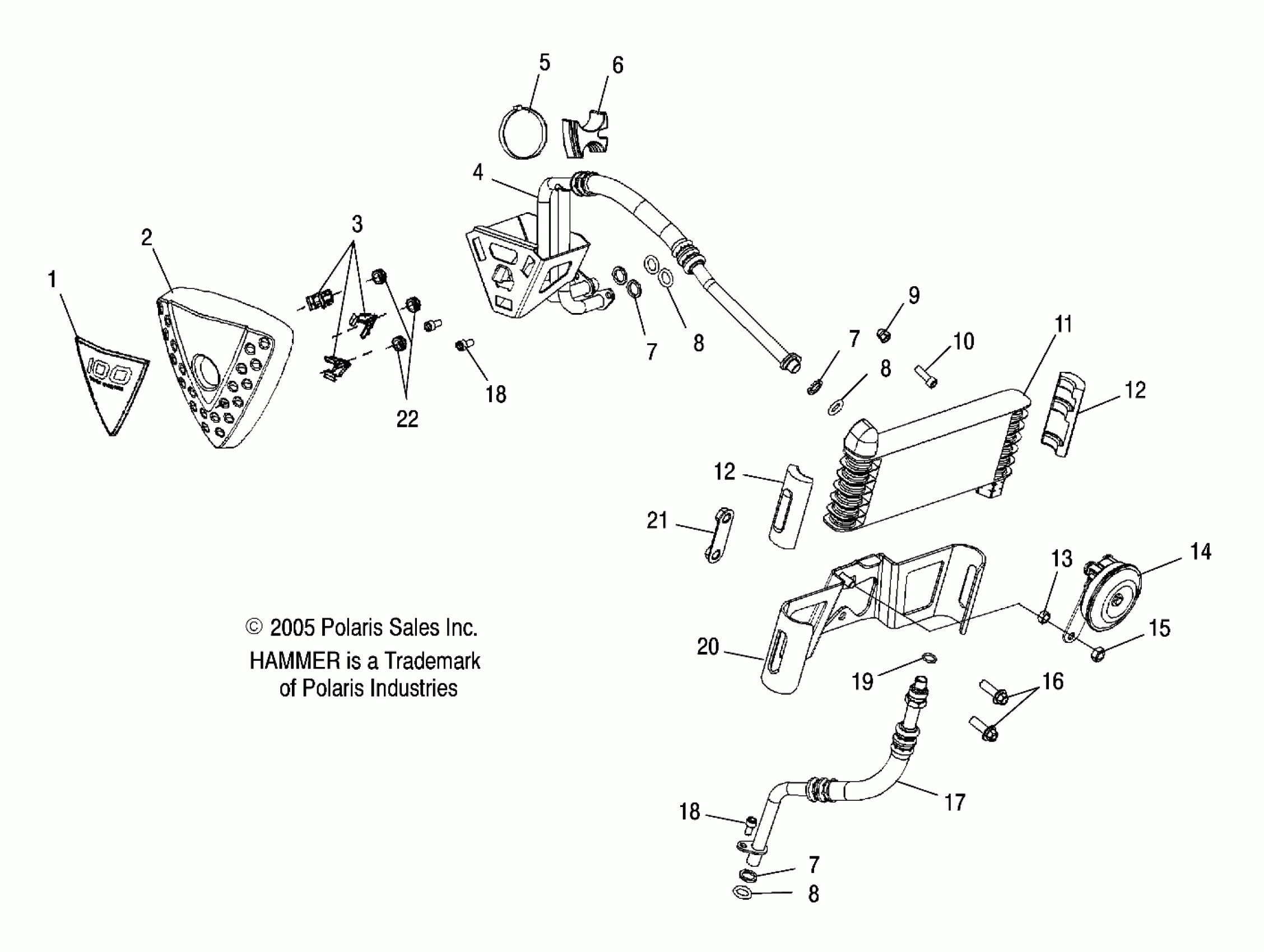

Polaris HAMMER ALL OPTIONS - V07HB26/HS26 ENGINE, OIL COOLING - V07HB26/HS26 ALL OPTIONS (4999203419920341C03) Diagram

#

Description
Price

1

Badge, Oil Line Cover [Hammer]

7172379

Unavailable

1

Badge, Oil Line Cover [Hammer S]

7174195

$45.24

2

Cover, Ignition/Coil [Hammer]

5245659

Unavailable

2

Cover, Ignition/Coil [Hammer S]

5436723-463

$108.99

3

CLIP, TINNERMAN

7670136

$2.39

4

Line, Inlet

5334192

$237.30

5

Cable Tie

7080906

$6.79

6

Mount, Rubber

5412188

$31.11

7

Washer, Flat

7556113

$4.79

7

Washer, Flat

7556113

$4.79

7

Washer, Flat

7556113

$4.79

8

O-Ring

5411356

$2.39

8

O-Ring

5411356

$2.39

8

O-Ring

5411356

$2.39

9

NUT-ACORN,M6,SS,DIN 1587

7547115

Unavailable

10

Screw

7517384

$8.79

11

Cooler, Oil, Silver

1240145-385

$245.24

11

Cooler, Oil, Black

1240145-266

$245.24

12

Isolator, Cooler

5412105

$6.59

12

Isolator, Cooler

5412105

$6.59

13

Spacer, Horn

5133647

$4.37

14

Horn, Disk

4010739

$41.27

15

NUT

7547076

$2.60

16

Screw

7517839

$5.59

17

Line, Outlet

5334191

$102.38

18

SCREW

7517405

$10.39

18

SCREW

7517405

$10.39

19

O-RING

5412027

Unavailable

20

Bracket, Oil Cooler, Silver

1014761-385

$69.51

20

Bracket, Oil Cooler, Black

1014761-266

Unavailable

21

Plate, Nut, ZNB

1014760-408

Unavailable

21

Plate, Nut, ZNC

1014760-236

$8.17

22

GROMMET-SIDE COVER

5433833

$4.23
