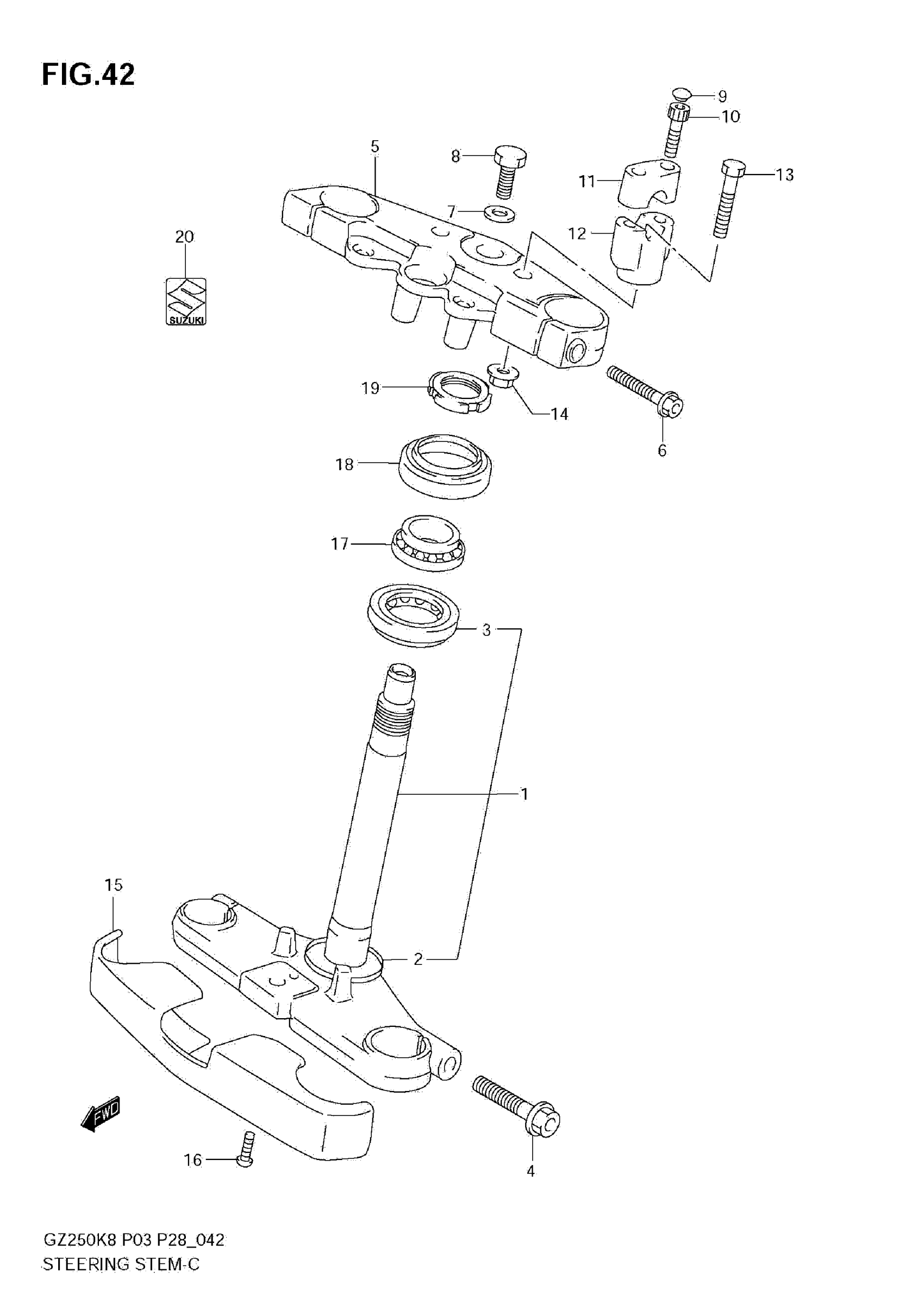

Suzuki GZ250K8 (2010) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING | MODEL K8

51410-12FA0

Unavailable

1

STEM, STEERING | MODEL K9/L0

51410-12FC0

Unavailable

2

SEAL, LOWER

51644-12C00

$9.44

3

BEARING (30X55X17)

09267-30010

$48.11

4

BOLT (10X40)

01550-10407

$4.68

5

HEAD, STEERING STEM

51311-12FA0

Unavailable

6

BOLT (8X45)

01550-08457

$4.00

7

WASHER This part replaces 51356-12FA0.

51356-43530

$6.55

8

BOLT This part replaces 51352C02B00J000.

51352-43530

$15.42

9

CAP

09250-06011

$2.50

10

BOLT (8X25)

07130-08257

$3.43

11

HOLDER, HANDLE UPPER

56211-12FA0

Unavailable

12

HOLDER,HANDLE U This part replaces 56221-12FA0.

56221-12FD0

Unavailable

13

BOLT, HOLDER

51451-12FA0

$3.95

14

NUT

08319-31107

$2.73

15

COVER, FRONT FORK UNDER This part replaces 51871C12F00J000.

51871-12F00

Unavailable

16

SCREW (6X16)

09139-06083

$2.26

17

BEARING (25X47X15)

09267-25009

$52.18

18

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

19

NUT, STEM

51631-28000

$17.37

20

EMBLEM "S"

68281-35F00

$16.45
