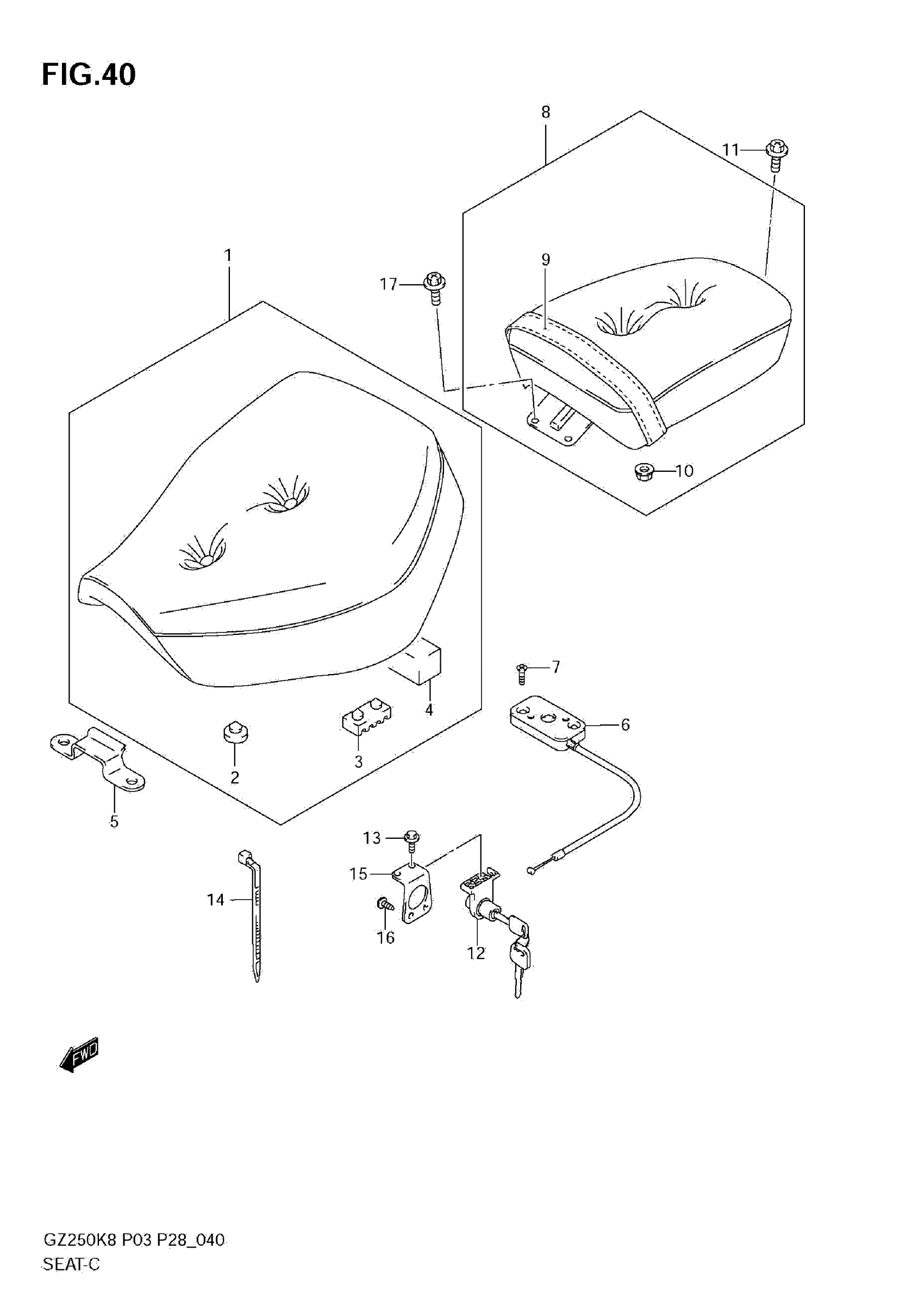

Suzuki GZ250K8 (2010) SEAT Diagram

#

Description
Price

1

SEAT ASSY This part replaces 45100-12FA0-K9C.

45100-0AE00-K9C

Unavailable

2

CUSHION,SEAT This part replaces 45148-12FA0.

45148-36C01

$4.23

3

CUSHION, REAR

45147-12FA0

$5.30

4

CUSHION, TOOL

45149-12FA0

Unavailable

5

PLATE, FRONT SEAT HOOK

45119-12F00

$8.42

6

BRACKET, FRONT SEAT

45220-12F00

Unavailable

7

SCREW

02122-0625B

$1.88

8

SEAT ASSY PILLI This part replaces 45300-12FA0-K9C.

45300-0AE00-K9C

$318.15

9

BAND, SEAT This part replaces 45180-12FA0-T65.

45180-12F00-T65

Unavailable

10

NUT

D8316-1006A

Unavailable

11

BOLT, REAR (8X16)

09106-08140

$6.38

12

LOCK SET, SEAT | MODEL K8

95700-31841

$78.33

12

LOCK SET, SEAT | MODEL K9/L0

95700-31C00

Unavailable

13

BOLT

01547-0510B

$2.97

14

CLAMP

09407-22403

Unavailable

15

BRACKET, SEAT LOCK

45289-03F00

Unavailable

16

SCREW

D3111-0413B

Unavailable

17

BOLT, FRONT (6X12)

09106-06061

$8.15
