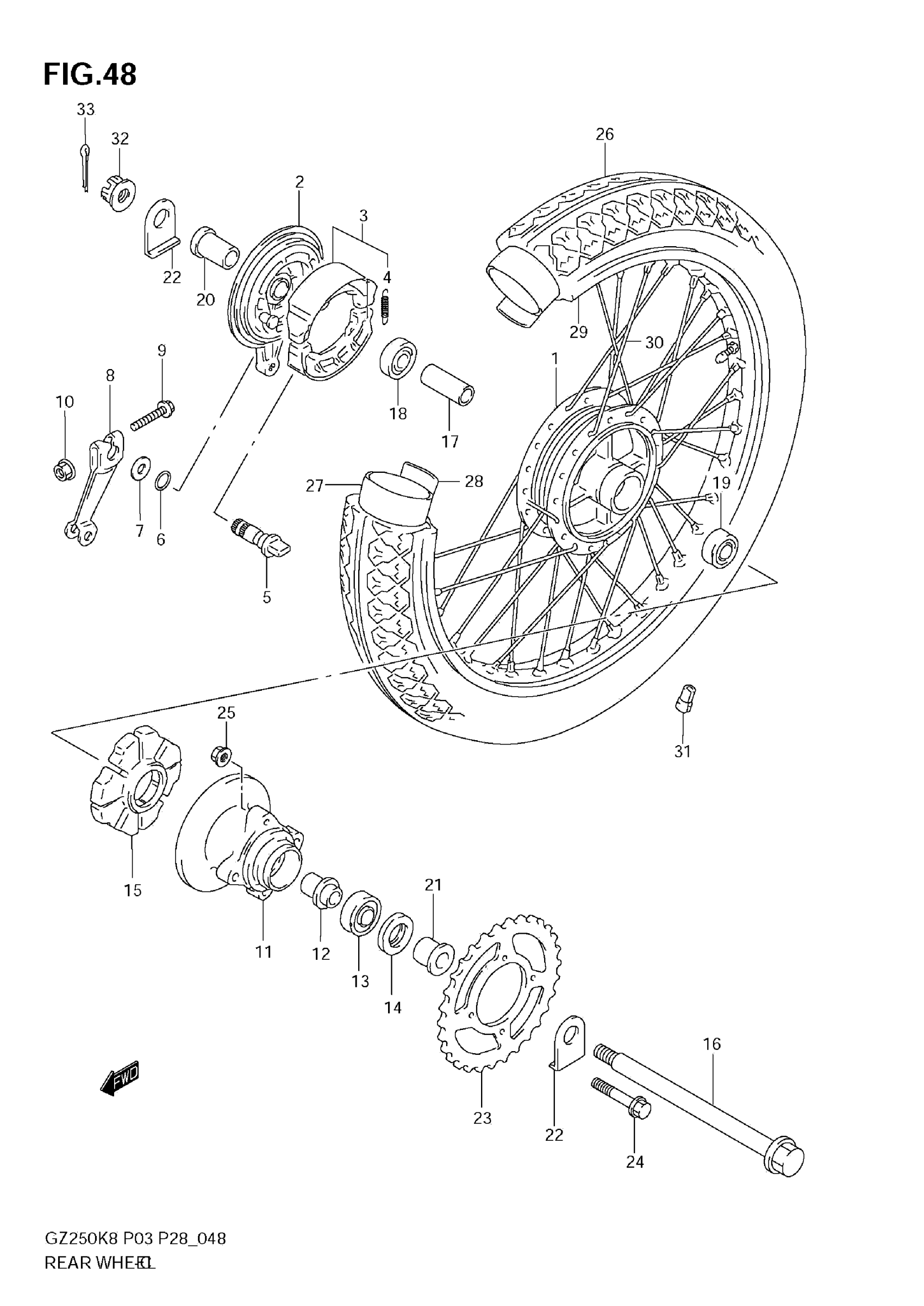

Suzuki GZ250K8 (2010) REAR WHEEL Diagram

HUB, REAR WHEEL

64110-07005

Unavailable

PANEL, REAR BRAKE ANCHOR

64210-39115

$154.00

SHOE SET, BRAKE This part replaces 54410-07021.

54401-07820

$36.38

SPRING This part replaces 09443-07001.

09443-07025

$2.08

CAM, BRAKE

54441-29305

$20.02

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.77

WASHER

09160-14055

$2.39

LEVER, BRAKE CAM

64451-30501

$20.06

BOLT

01550-06407

$2.69

NUT

08316-10067

$2.25

DRUM, SPROCKET MOUNTING

64610-38300

Unavailable

RETAINER, MOUNTING DRUM

64733-38300

Unavailable

BEARING, DRUM (20X47X14)

09262-20069

$23.28

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$12.49

SHOCK ABSORBER, HUB

64651-07001

$19.43

AXLE, REAR

64711-12F00

Unavailable

SPACER, BEARING (15.3X21.7X63)

09180-15011

$8.18

BEARING, WHEEL RH

08153-63027

$25.35

BEARING, WHEEL LH

08143-62027

$16.01

SPACER, AXLE RH | MODEL K8 This part replaces 64741C12F00J000.

64741-12F00

Unavailable

SPACER, AXLE RH | MODEL K9/L0

64741C12F10J000

Unavailable

SPACER, AXLE LH This part replaces 64751C12F00J000.

64751-12F00

Unavailable

WASHER, GUIDE

64712-08301

Unavailable

SPROCKET, REAR (NT:41)

64511-13FA0

$51.27

BOLT (10X40)

09103-10044

$4.68

NUT

08319-3110A

$2.73

TIRE,RR(130/90, This part replaces 65100-12FA0.

65100-12FA0-LCP

$508.15

TUBE ASSY, WHEEL INNER

65200-12FA0

$30.67

PROTECTOR, INNER TUBE

65261-12FA0

$16.07

RIM, REAR WHEEL (15XMT3.00)

65311-12F00

Unavailable

SPOKE SET, REAR WHEEL

65320-12F00

$70.53

BALANCER WHEEL (15G)

55411-26G00

$7.73

BALANCER WHEEL (30G)

55413-41F00

$7.50

NUT | MODEL K8

09159-14018

Unavailable

NUT | MODEL K9/L0

08319-3114A

$9.66

PIN | MODEL K8

04111-3025A

$1.49
