Partiron

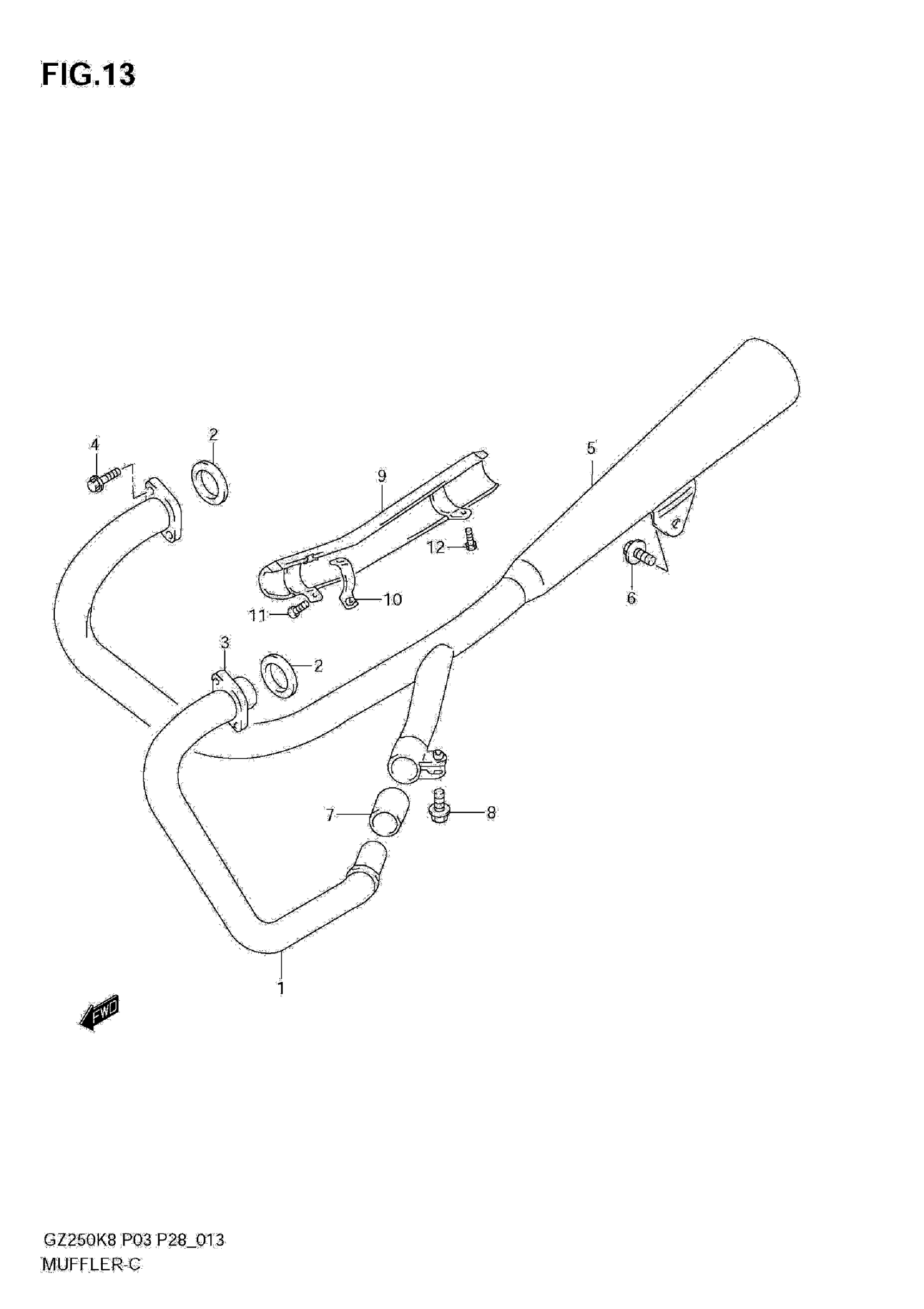

Suzuki GZ250K8 (2010) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST LH

14160-13F00

$222.32

2

GASKET, EXHAUST PIPE

14181-37D00

$4.56

3

CLAMP, EXHAUST PIPE LH

14182-37D00

$17.12

4

BOLT

09103-06203

$2.85

5

MUFFLER This part replaces 14305-13F01.

14305-13F02-H01

$352.60

6

BOLT

01580-1030B

$5.18

7

CONNECTOR, MUFFLER

14771-19B00

$17.04

8

BOLT

01550-0835B

$3.95

9

COVER, MUFFLER

14780-13F01

Unavailable

10

CLAMP, MUFFLER COVER

14785-38301

$7.37

11

SCREW

02112-0520B

$1.84

12

SCREW

02112-7610B

Unavailable
