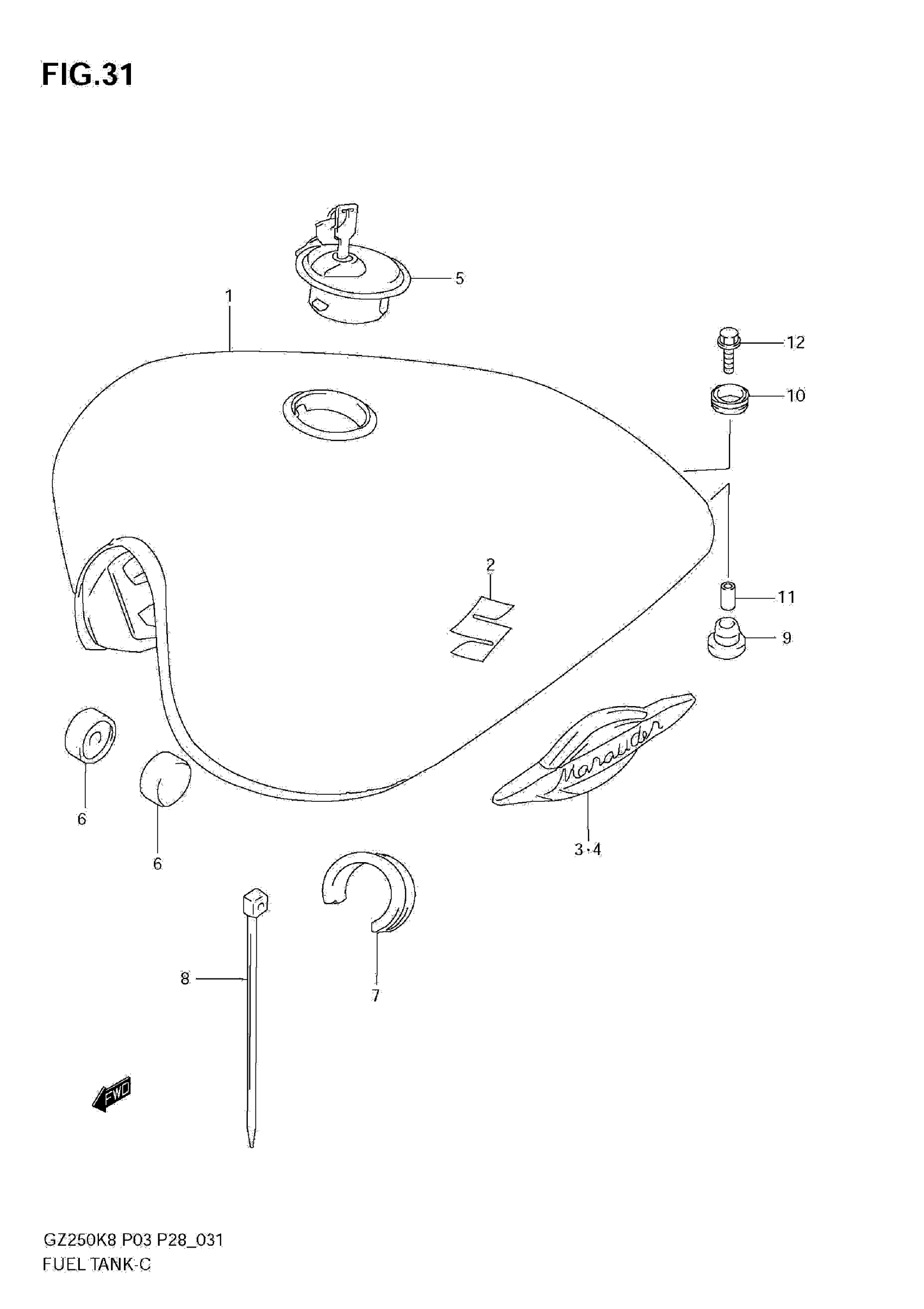

Suzuki GZ250K8 (2010) FUEL TANK (MODEL K8/K9) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | E3 This part replaces 44100-12FU0-YAY.

44100-12FS0-YAY

Unavailable

1

TANK ASSY, FUEL (GRAY) | MODEL K8 E3

44100-12FU0-YHG

Unavailable

1

TANK ASSY, FUEL (WHITE) | MODEL K9 E3

44100-12FU0-YC3

Unavailable

1

TANK ASSY, FUEL (BLACK) | E33

49100-12F00-YAY

Unavailable

1

TANK ASSY, FUEL (GRAY) | MODEL K8 E33

49100-12F00-YHG

Unavailable

1

TANK ASSY, FUEL (WHITE) | MODEL K9 E33

49100-12F00-YC3

Unavailable

2

EMBLEM, "S" | E3, E33

68111-18G20

$32.30

3

EMBLEM, FUEL TANK RH | E28

68111C12F00J000

Unavailable

4

EMBLEM, FUEL TANK LH | E28

68121C12F00J000

Unavailable

5

CAP SET,FUEL TA | E3, E28 This part replaces 44200-41830.

44200-41832

$164.45

5

CAP SET,FUEL TA | E33 This part replaces 44200-41840.

44200-41842

$94.83

6

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

7

CUSHION,FUEL TA This part replaces 44541-03F00.

44541-03F01

$12.80

8

CLAMP This part replaces 09407-20405.

09407-25402

$4.64

9

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

10

CUSHION, FUEL TANK REAR UPPER

44512-42E00

$3.43

11

SPACER (6.5X9X18)

09180-06271

$2.35

12

BOLT This part replaces D1557-0630B.

01550-0630B

$2.85
