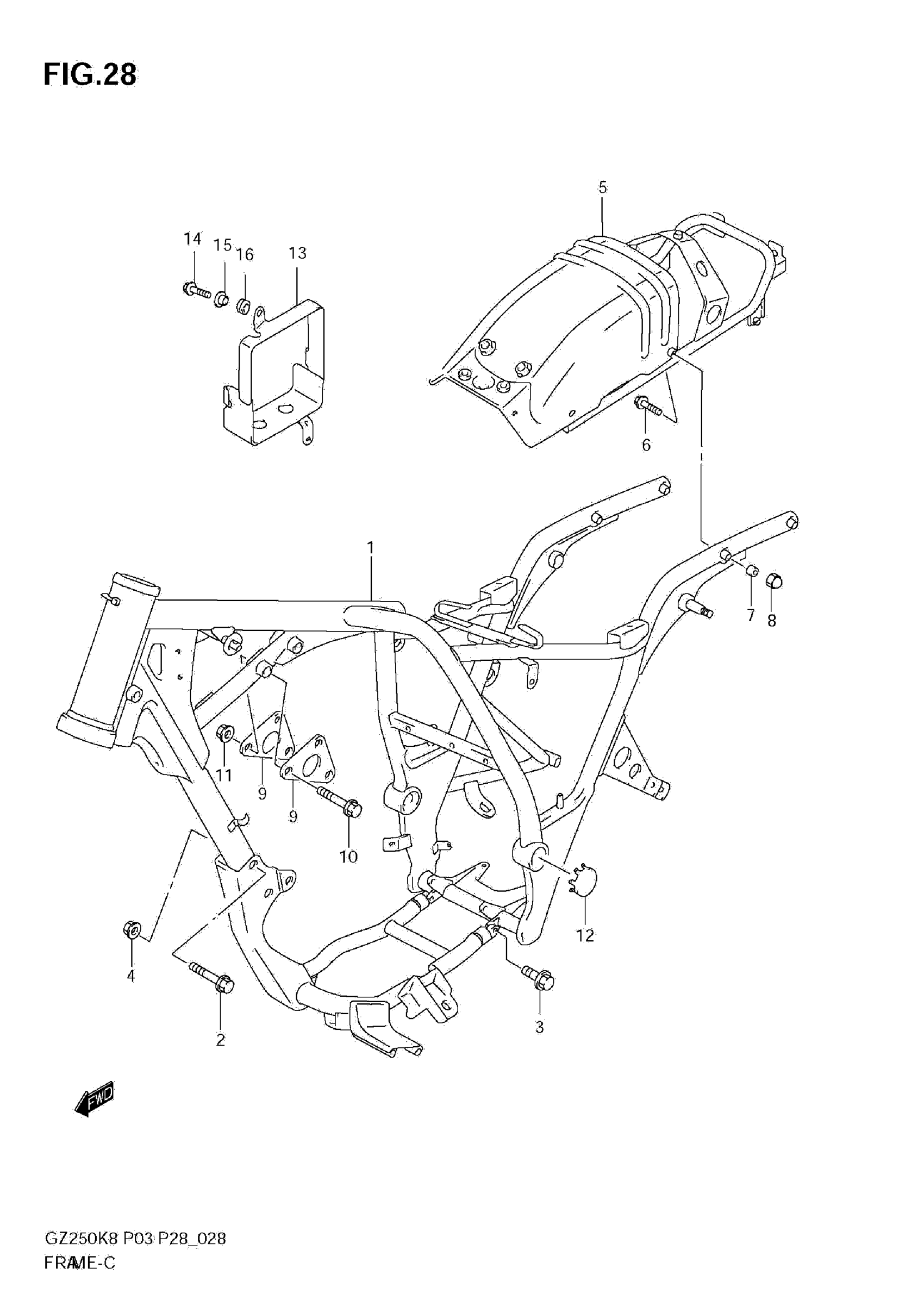

Suzuki GZ250K8 (2010) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-13F01-EE3

Unavailable

2

BOLT

01550-0860B

$4.85

3

BOLT

01550-0825B

$2.92

4

NUT, FRONT

08316-1008B

$2.66

5

BRACE, REAR FRAME

41580-12FA0-EE3

Unavailable

6

BOLT

01550-0855B

$4.10

7

SPACER

09180-08208

$7.47

8

NUT, BRACE

08313-20087

$2.19

9

PLATE, ENGINE MOUNT UPPER

41991-13FA0-EE3

Unavailable

10

BOLT (8X50)

09103-08289

$4.50

11

NUT

08319-3108A

$2.32

12

CAP, PIVOT

61222-38A01

$13.35

13

HOLDER, BATTERY (BLACK)

41540-12FA0-EE3

Unavailable

14

BOLT

01550-0616B

$2.48

15

WASHER

09169-06065

$4.32

16

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97
