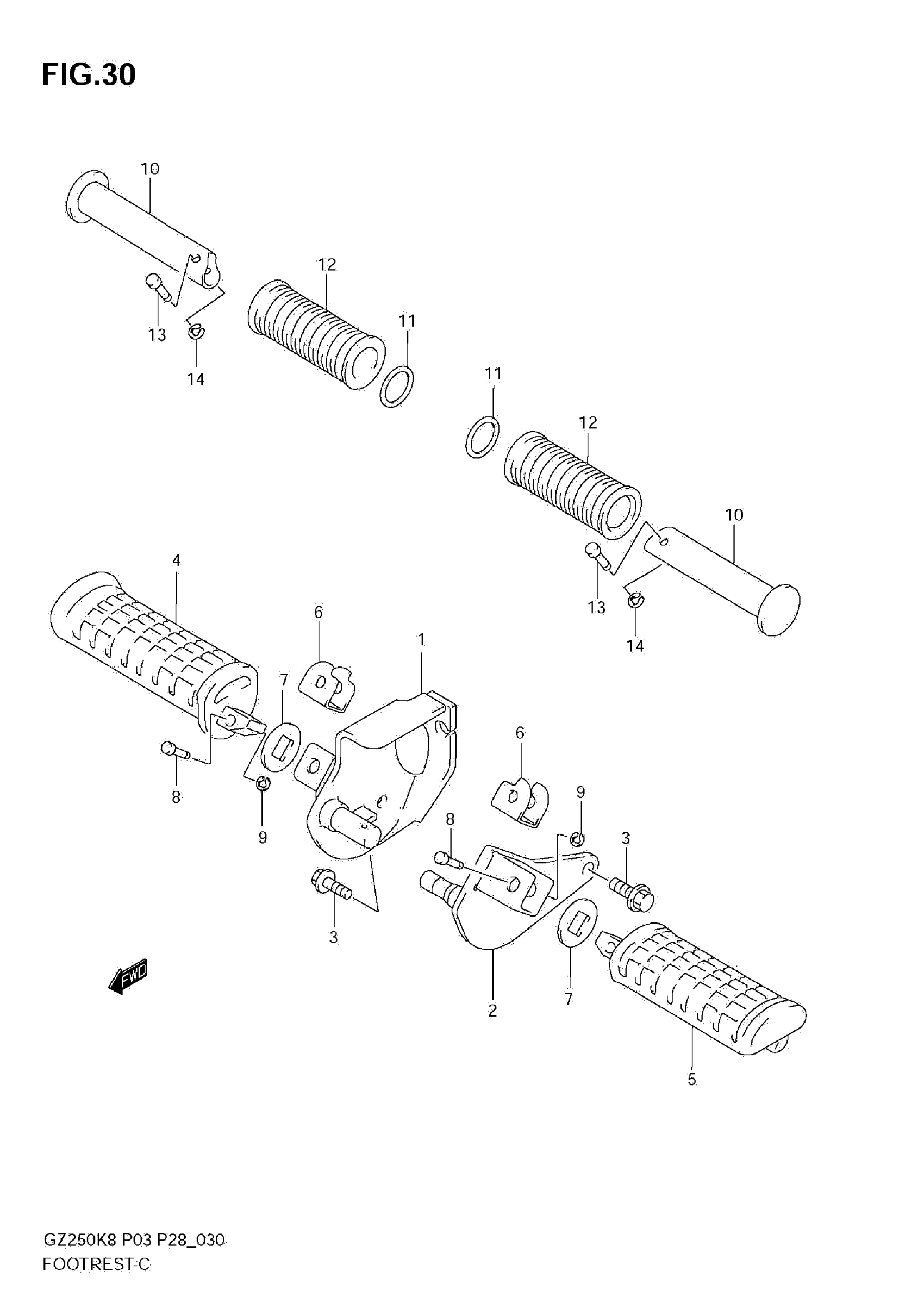

Suzuki GZ250K8 (2010) FOOTREST Diagram

#

Description
Price

1

BRACKET, FRONT FOOTREST RH

43510-13FA0-EE3

$30.82

2

BRACKET, FRONT FOOTREST LH

43520-13FA0-EE3

$32.33

3

BOLT

01550-0820B

$2.83

4

RUBBER, FRONT FOOTREST RH This part replaces 43550C12FA0JE0Z.

43550-12FA0

$20.80

5

RUBBER, FRONT FOOTREST LH This part replaces 43560C12FA0JE0Z.

43560-12FA0

$18.72

6

CUSHION,FR FOOT This part replaces 43570-04F00.

43570-04F01

$17.04

7

WASHER, FOOTREST RUBBER

43631-34A01

$4.52

8

PIN

09208-06008

$2.92

9

E-RING

08332-1104B

$1.78

10

BAR, PILLION FOOTREST

43610-03001

$6.52

11

WASHER (19.5X32X2.0)

09160-19024

$2.65

12

RUBBER, PILLION FOOTREST

43612-0AE00

Unavailable

13

PIN, PILLION FOOTREST

43636-25D00

$10.65

14

E-RING

08332-1104B

$1.78
