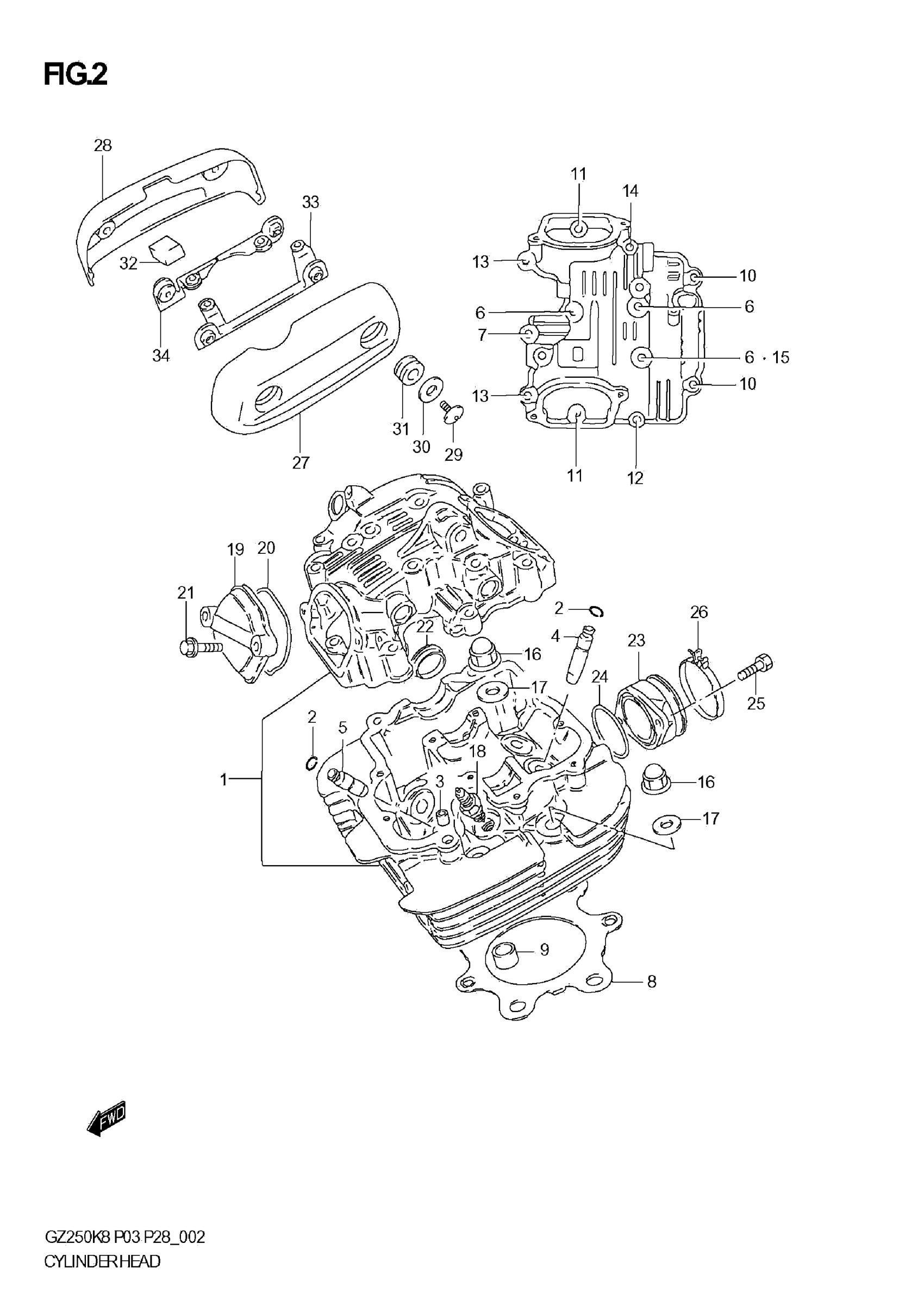

Suzuki GZ250K8 (2010) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-25D02

$1,036.60

2

.RING (10X85)

09381-10004

$1.50

3

PIN (6.2X8X11)

09206-08001

$1.78

4

GUIDE, VALVE (OS: 0.3) | OPT

11115-38270

$40.73

5

GUIDE, VALVE (0S:0.3) | OPT

11115-05270

$32.10

6

BOLT (GREEN)

01550-0660B

$3.43

7

BOLT (GREEN)

01550-0630B

$2.85

8

GASKET, CYLINDER HEAD

11141-25D11

$32.36

9

PIN

04211-13189

$2.19

10

BOLT (6X120)

09103-06148

$4.77

11

BOLT (GREEN)

01550-0630B

$2.85

12

BOLT (GREEN)

01550-0645B

Unavailable

13

BOLT (GREEN)

01550-0650B

Unavailable

14

BOLT (GREEN)

01550-0660B

$3.43

15

GASKET (5.8X13X1.2)

09168-06023

$2.35

16

NUT

09159-10026

$6.20

17

GASKET (10.5X22X2)

09168-10017

$3.04

18

SPARK PLUG (DR8EA)

09482-00399

$3.32

18

SPARK PLUG (X24ESR-U)

09482-00223

$5.18

19

CAP, INSPECTION

11175-38202

$23.35

20

O RING

09280-55003

$3.89

21

BOLT (GREEN)

01550-0625B

$2.42

22

PLUG

09241-30004

$6.60

23

PIPE, INTAKE

13110-13F00

$33.92

24

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.91

25

SCREW

02122-0616B

$1.96

26

CLAMP

09402-48208

$4.64

27

CAP, CYLINDER HEAD COVER LH

11171-13F00

$107.10

28

CAP, CYLINDER HEAD COVER RH

11172-13F00

Unavailable

29

BOLT, HEAD COVER CAP

11178-12F10

$5.56

30

WASHER, HEAD COVER (6.5X24X1.6

09160-06134

$1.91

31

CUSHION

09320-13015

$2.85

32

DAMPER, HEAD CAP RH

11178-13F00

Unavailable

33

BRACKET, HEAD CAP LH

11179-13F01

Unavailable

34

BRACKET, HEAD CAP RH

11179-13F11

Unavailable
