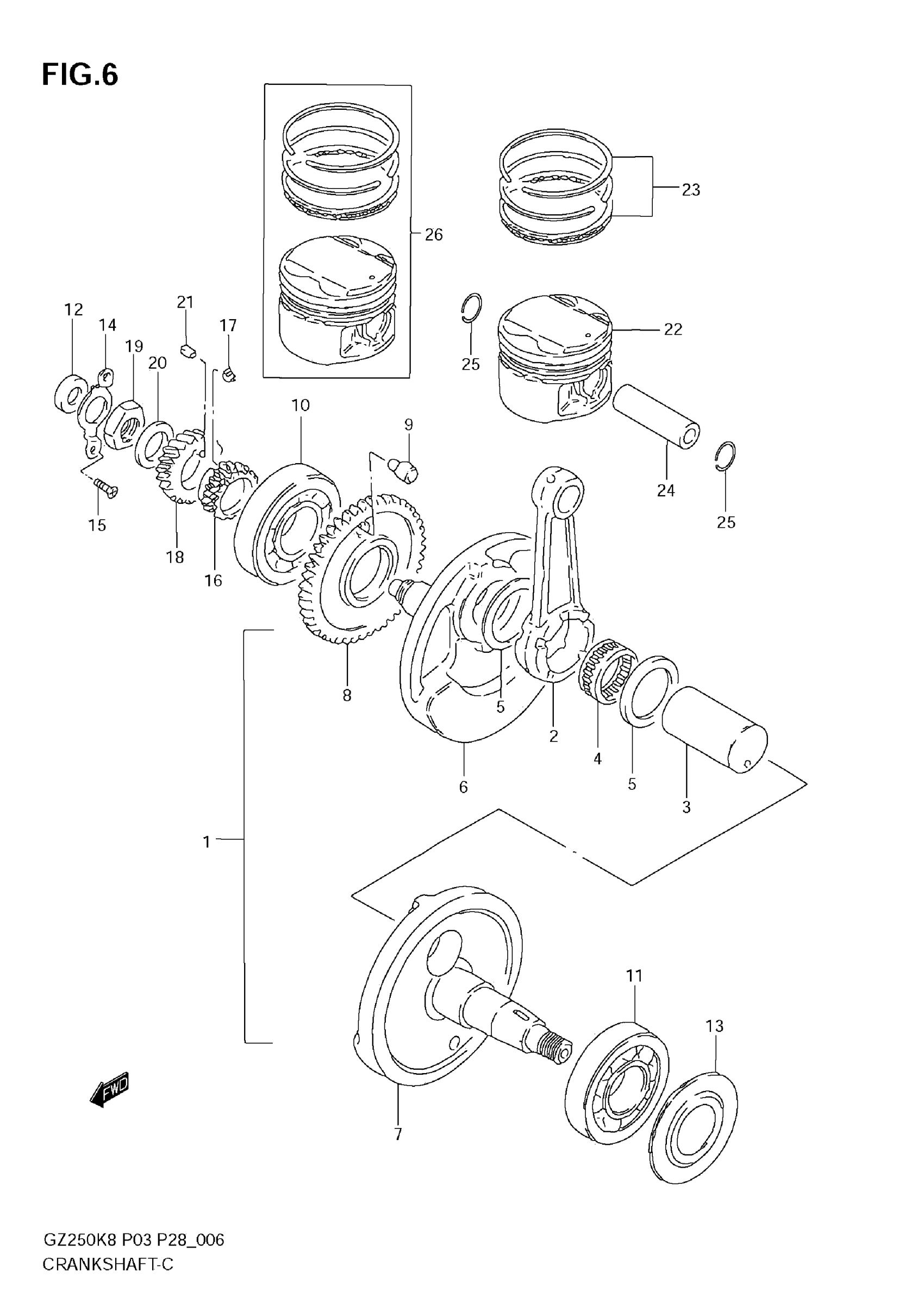

Find the part on the Crankshaft diagram for your 2010 Suzuki GZ250K8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Suzuki GZ250K8 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY

12200-26G01

1
Out of stock

2

ROD, CONNECTING

12161-38201

1
Out of stock

3

PIN, CRANK

12211-38211

1
Out of stock

4

BEARING (31X39X21)

09263-31012-0B0

1
Out of stock

5

WASHER (31X48.5X1)

09160-31002

2
Out of stock

6

CRANKSHAFT, RH

12221-38200

1
Out of stock

7

CRANKSHAFT, LH

12261-26G00

1
Out of stock

8

GEAR, CRANK BALANCER DRIVE

12661-38202

1
Out of stock

9

PIN

09209-12006

1
Out of stock

10

BEARING, RH (30x72x19) This part replaces 09262-30070.

09262-30077

1
Out of stock

11

BEARING (35X80X21)

09262-35028

1
Out of stock

12

OIL SEAL (14X26X6)

09282-14001

1
Out of stock

13

WASHER, CRANKSHAFT OIL SEALING

12521-38300

1
Out of stock

14

RETAINER, CRANKSHAFT OIL SEAL

12548-38200

1
Out of stock

15

SCREW

02122-0510B

2
Out of stock

16

SPROCKET, CAM CHAIN DRIVE

12731-38200

1
Out of stock

17

KEY, SPROCKET

12749-32400

1
Out of stock

18

GEAR, PRIMARY DRIVE (NT:21)

21111-38200

1
Out of stock

19

NUT This part replaces 09140-20008.

09140-20013

1
Out of stock

20

WASHER

09164-20003

1
Out of stock

21

KEY

09421-07002

1
Out of stock

22

PISTON

12111-38201-0F0

1
Out of stock

23

RING SET, PISTON

12140-49280

1
Out of stock

24

PIN, PISTON

12151-15501

1
Out of stock

25

SNAP RING

09381-18002

2
Out of stock

26

PISTON SET (OS:0.5) | OPT

12100-38210-050

1
Out of stock
