2010 Suzuki GZ250K8 Crank Balancer Diagram

← All diagrams

Find the part on the Crank Balancer diagram for your 2010 Suzuki GZ250K8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

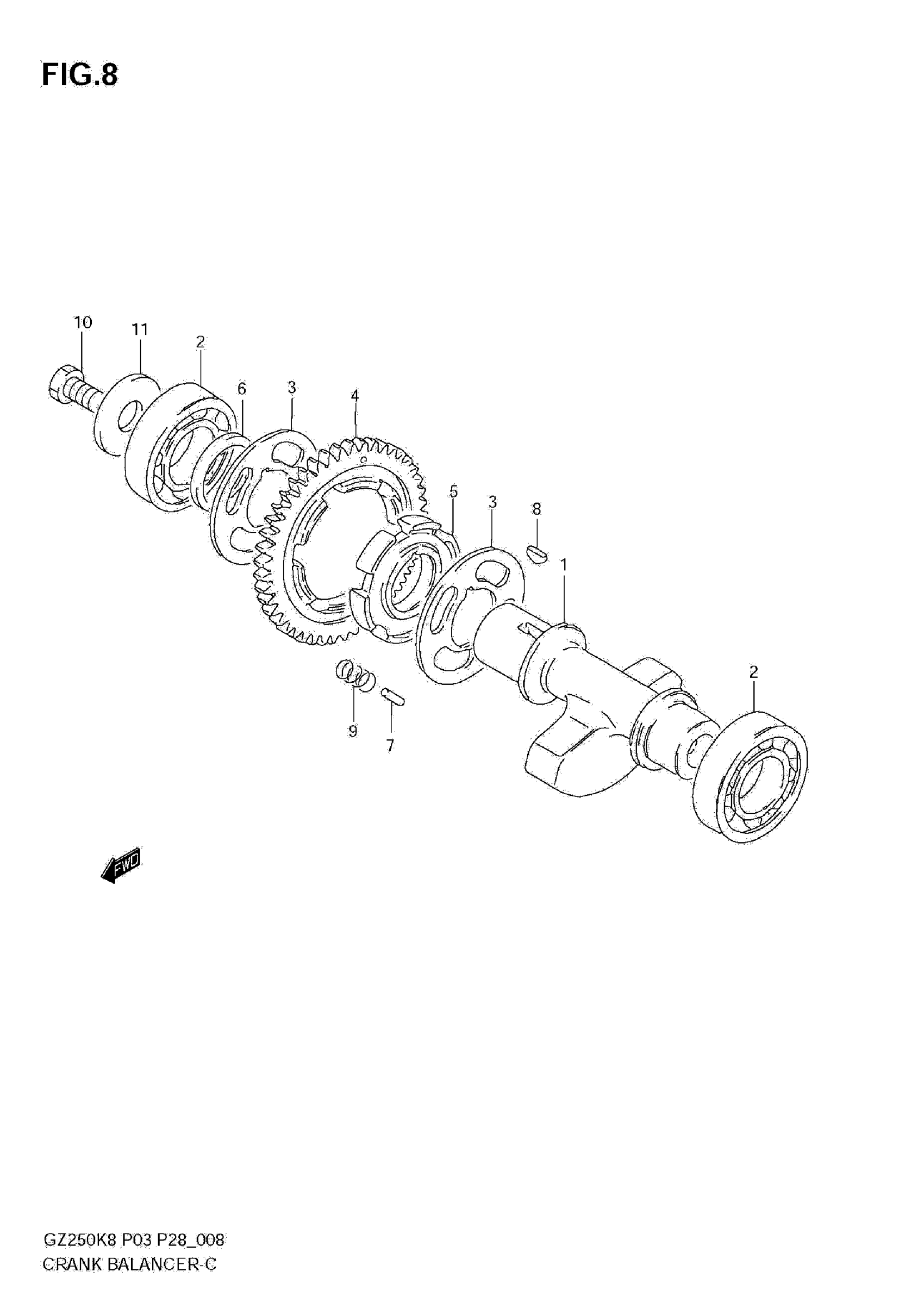

2010 Suzuki GZ250K8 Crank Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, CRANK BALANCER

12651-38202

1
Out of stock

2

BEARING

09262-25084

2
Out of stock

3

WASHER

12663-38200

2
Out of stock

4

GEAR, CRANK BALANCER DRIVEN

12666-38200

1
Out of stock

5

RACE, CRANK BALANCER DRIVEN

12669-38200

1
Out of stock

6

SHIM (T:0.50)

09181-25186

1

$4.28

In stock

7

PIN (D:4.5, L:9.5)

09202-04017

3
Out of stock

8

KEY

09420-04008

1
Out of stock

9

SPRING

09440-09015

6
Out of stock

10

BOLT

01500-1216B

1
Out of stock

11

THRUST WASHER

09160-12076

1
Out of stock
