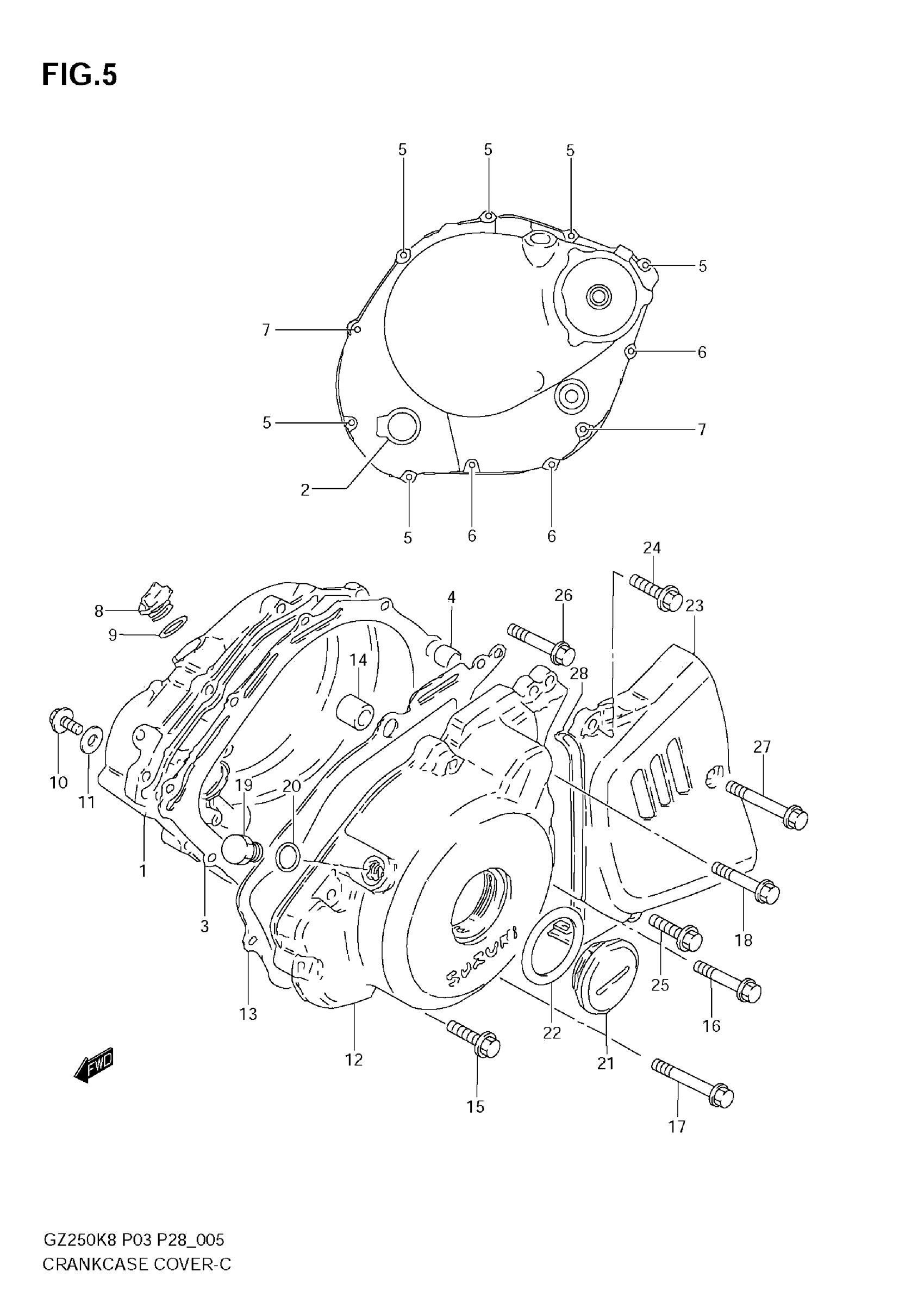

Suzuki GZ250K8 (2010) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-38302

$326.27

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

GASKET, CLUTCH COVER

11482-38312

$30.80

4

PIN

04211-13189

$2.19

5

BOLT (6X25)

09103-06212

$2.47

6

BOLT (6X35)

09103-06214

$2.48

7

BOLT (6X45)

09103-06224

$2.70

8

PLUG (20X10)

09259-20007

$7.53

9

O RING (D:3.1, ID:16.8)

09280-17003

$1.65

10

PLUG This part replaces 09247-14012.

09247-14026

$3.76

11

GASKET (13.8X18.8X0.4)

09168-14002

$2.26

12

COVER, MAGNETO

11351-38300

$210.85

13

GASKET, MAGNETO COVER

11483-37D00

$14.99

14

PIN

04211-13189

$2.19

15

BOLT (6X25)

09103-06212

$2.47

16

BOLT (6X35)

09103-06214

$2.48

17

BOLT (6X50)

09103-06238

$2.66

18

BOLT (6X60)

09103-06261

$3.16

19

PLUG, T.D.C.

09247-12104

$2.73

20

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

21

PLUG

09259-36011

$20.46

22

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

23

COVER, ENGINE SPROCKET

11361-38300

$116.47

24

BOLT (5X20)

09103-05019

Unavailable

25

BOLT

01547-05257

$2.19

26

BOLT (5X30)

09103-05015

$2.72

27

BOLT (5X45)

09103-05021

$2.72

28

DAMPER, ENGINE SPROCKET COVER

11362-38300

Unavailable
