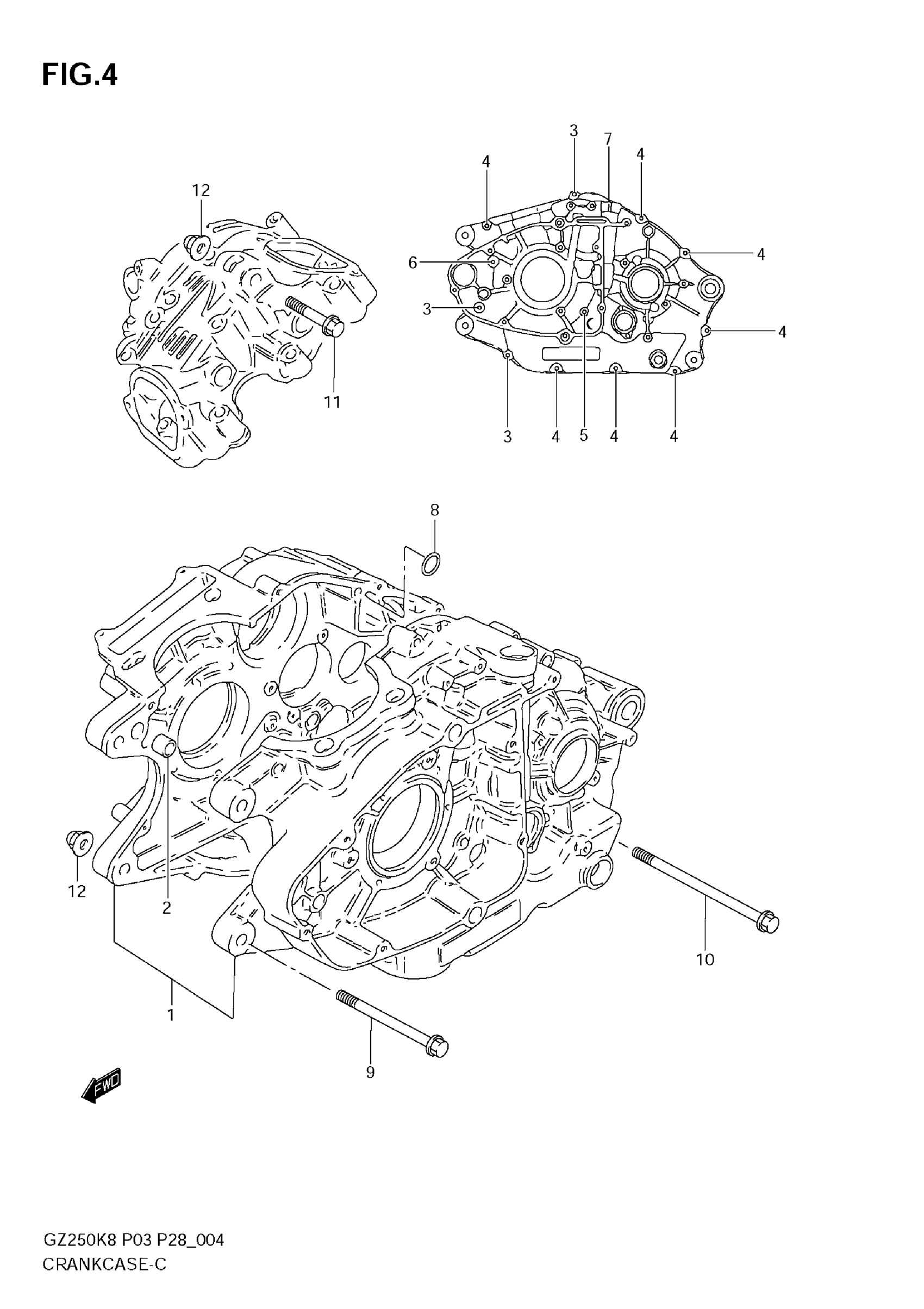

Suzuki GZ250K8 (2010) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11300-13F03

Unavailable

2

PIN

04211-13189

$2.19

3

BOLT

01547-06357

$2.03

4

BOLT

01547-06457

$2.32

5

BOLT

01547-0655B

$2.75

6

BOLT

01547-0660B

$3.18

7

BOLT

01547-06707

$2.75

8

O RING (D:1.9,ID:9.8) This part replaces 09280-10015.

09280-10016

$3.37

9

BOLT (8X67)

09103-08037

$5.57

10

BOLT (8X100)

09103-08114

$8.58

11

BOLT (8X50)

09103-08081

$3.72

12

NUT

08319-3108A

$2.32
