Description

Price

1

SHAFT, COUNTER (NT:11) | Includes Item(s) 1A

24120-38203

Unavailable

1A

BUSH

24125-38201

$6.38

2

GEAR, 2ND DRIVE (NT:16)

24221-32412

Unavailable

3

GEAR, 3RD DRIVE (NT:19)

24231-38201

Unavailable

4

GEAR, 4TH DRIVE (NT:20)

24241-32401

Unavailable

5

GEAR, 5TH DRIVE (NT:22)

24251-32420

Unavailable

6

CIRCLIP

09380-22006

$3.10

7

BEARING, RH (22X56X16)

09262-22028

$77.48

8

BEARING, LH (17X40X12)

09262-17046

$38.05

9

RETAINER, BEARING

24741-38200

Unavailable

10

SCREW (6X12)

09125-06110

$2.12

11

SHAFT, DRIVE

24130-38301

Unavailable

12

GEAR, 1ST DRIVEN (NT:29)

24311-32401

Unavailable

13

WASHER (17X28X1.0)

09181-17195

$3.07

14

THRUST WASHER

08211-17363

Unavailable

15

BEARING (17X21X9.8)

09263-17004

$12.03

16

GEAR, 2ND DRIVEN (NT:27)

24320-32411

Unavailable

17

CIRCLIP

09380-22006

$3.10

18

GEAR, 3RD DRIVEN (NT:24)

24330-38202

Unavailable

19

LOCK WASHER

09167-22011

$3.23

20

CIRCLIP

09380-22006

$3.10

21

GEAR, 4TH DRIVEN (NT:20)

24341-38201

Unavailable

22

GEAR, 5TH DRIVEN (NT:18)

24351-38201

Unavailable

23

BEARING (17X36X12)

09264-17001

$43.02

24

BEARING (22X56X16)

09262-22013

$73.18

25

WASHER (35X55X1)

09160-35007

$2.12

26

OIL SEAL (30X43X5)

09282-30004

$10.95

27

OIL SEAL (30X43X7)

09283-30041

$11.52

28

RETAINER, OIL SEAL

24751-38210

Unavailable

29

BOLT

01500-0612B

$2.47

30

RETAINER, BEARING

24752-32400

Unavailable

31

SCREW

02122-0612A

$1.49

32

CIRCLIP This part replaces 08331-3117A.

08331-31179

$1.90

33

WASHER (17X24X1.0)

09181-17139

$3.07

34

SPROCKET,ENGINE This part replaces 27510C25D00J000.

27510-25D01

$50.85

35

SPACER

27531-38300

$35.57

36

O RING (D:2.5,ID:21)

09280-21008

$1.91

37

NUT

09140-18008

$6.00

38

LOCK WASHER

09167-22012

$1.54

39

CHAIN ASSY,DRIV | Includes Item(s) 40 This part replaces 27600C14A10J110.

27600-14A20-110

$298.05

40

JOINT SET | OPT

27620C14A10J000

Unavailable

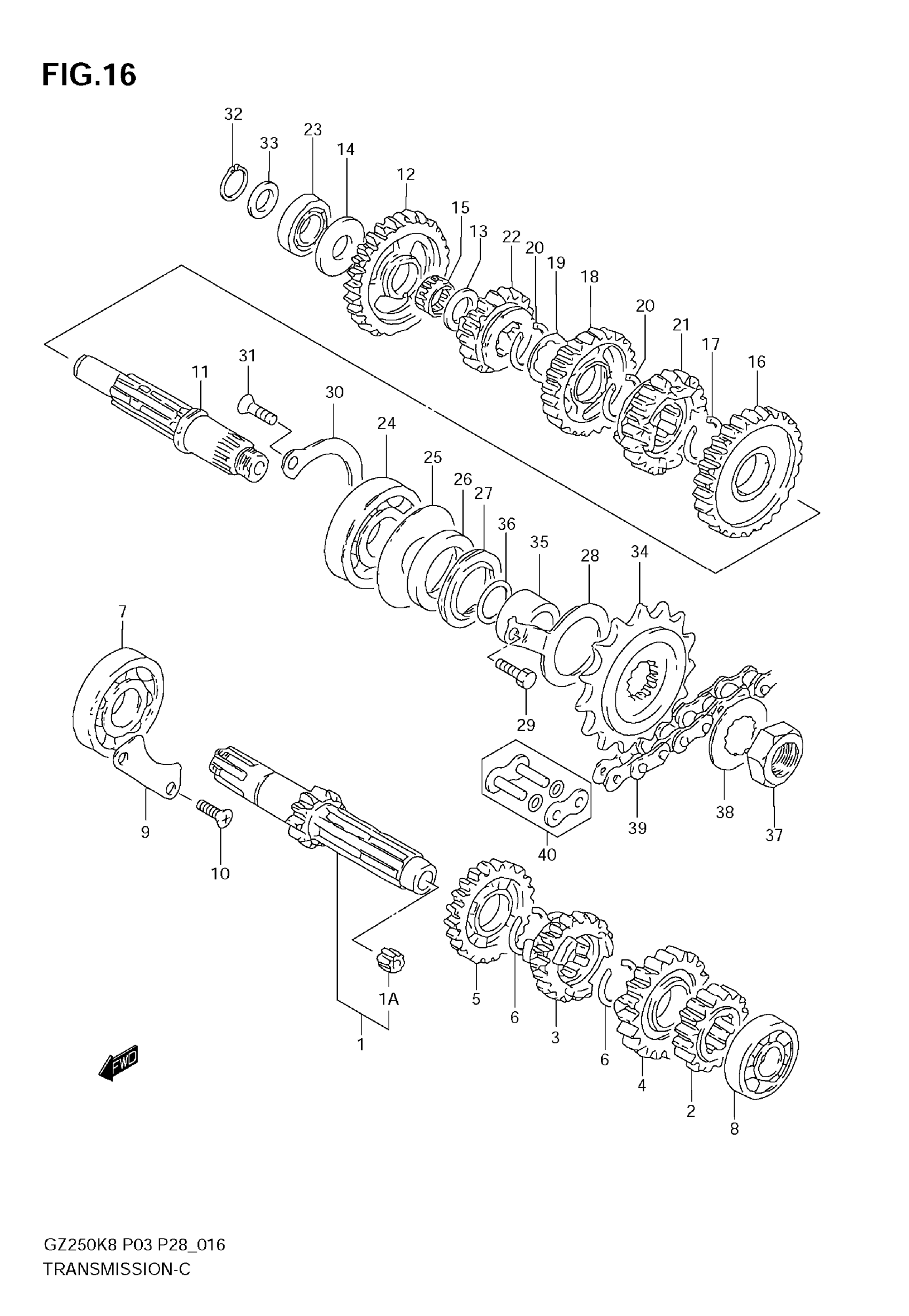

Suzuki GZ250 (2009) TRANSMISSION Diagram

SHAFT, COUNTER (NT:11) | Includes Item(s) 1A

BUSH

GEAR, 2ND DRIVE (NT:16)

GEAR, 3RD DRIVE (NT:19)

GEAR, 4TH DRIVE (NT:20)

GEAR, 5TH DRIVE (NT:22)

CIRCLIP

BEARING, RH (22X56X16)

BEARING, LH (17X40X12)

RETAINER, BEARING

SCREW (6X12)

SHAFT, DRIVE

GEAR, 1ST DRIVEN (NT:29)

WASHER (17X28X1.0)

THRUST WASHER

BEARING (17X21X9.8)

GEAR, 2ND DRIVEN (NT:27)

CIRCLIP

GEAR, 3RD DRIVEN (NT:24)

LOCK WASHER

CIRCLIP

GEAR, 4TH DRIVEN (NT:20)

GEAR, 5TH DRIVEN (NT:18)

BEARING (17X36X12)

BEARING (22X56X16)

WASHER (35X55X1)

OIL SEAL (30X43X5)

OIL SEAL (30X43X7)

RETAINER, OIL SEAL

BOLT

RETAINER, BEARING

SCREW

CIRCLIP This part replaces 08331-3117A.

WASHER (17X24X1.0)

SPROCKET,ENGINE This part replaces 27510C25D00J000.

SPACER

O RING (D:2.5,ID:21)

NUT

LOCK WASHER

CHAIN ASSY,DRIV | Includes Item(s) 40 This part replaces 27600C14A10J110.

JOINT SET | OPT
