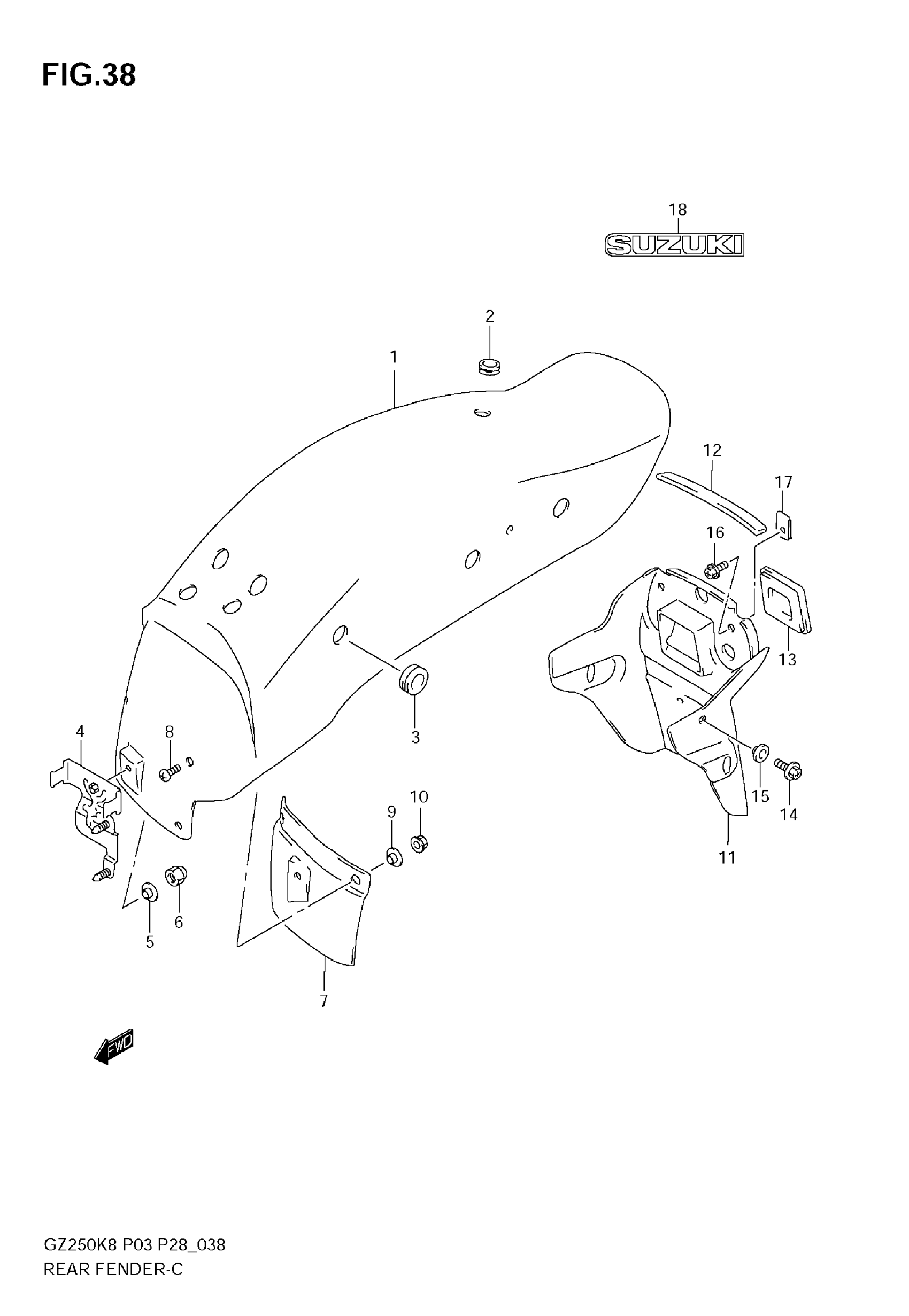

Suzuki GZ250 (2009) REAR FENDER Diagram

#

Description
Price

1

FENDER,REAR This part replaces 63111-12F00-YAY.

63111-12F00-NE2

$30.60

1

FENDER,REAR | MODEL K8 This part replaces 63111-12F00-YHG.

63111-12F00-NE2

$30.60

1

FENDER, REAR (WHITE) | MODEL K9

63111-12F00-YC3

Unavailable

2

CUSHION, UPPER

09320-13015

$2.85

3

CUSHION, SIDE

63118-12F00

Unavailable

4

BRACKET, REAR FENDER

63140-13F00

Unavailable

5

WASHER

09689-06055

Unavailable

6

NUT

08313-1006B

$2.26

7

MUD GUARD, REAR FENDER

63331C12F00J000

$8.47

8

SCREW

02142-0616B

$1.78

9

WASHER

09169-06055

$2.27

10

NUT

08316-1006B

$2.50

11

EXTENSION, REAR FENDER

63311C12F00J000

Unavailable

12

CUSHION, EXTENSION

63312-48E00

Unavailable

13

CAP,RR FENDER E This part replaces 63191-48E00.

63191-48E01

$13.17

14

BOLT, SIDE

02162-0612B

$2.19

15

WASHER

09689-06055

Unavailable

16

SCREW

02162-0616B

$2.03

17

NUT, REAR FENDER EXT.

47153-19C01

$7.95

18

EMBLEM "SUZUKI" (SILVER) | FOR YAY, YHG

68171-12F00-YD8

Unavailable

18

EMBLEM "SUZUKI" (GRAY) | FOR YC3

68171-12F00-YU8

Unavailable
