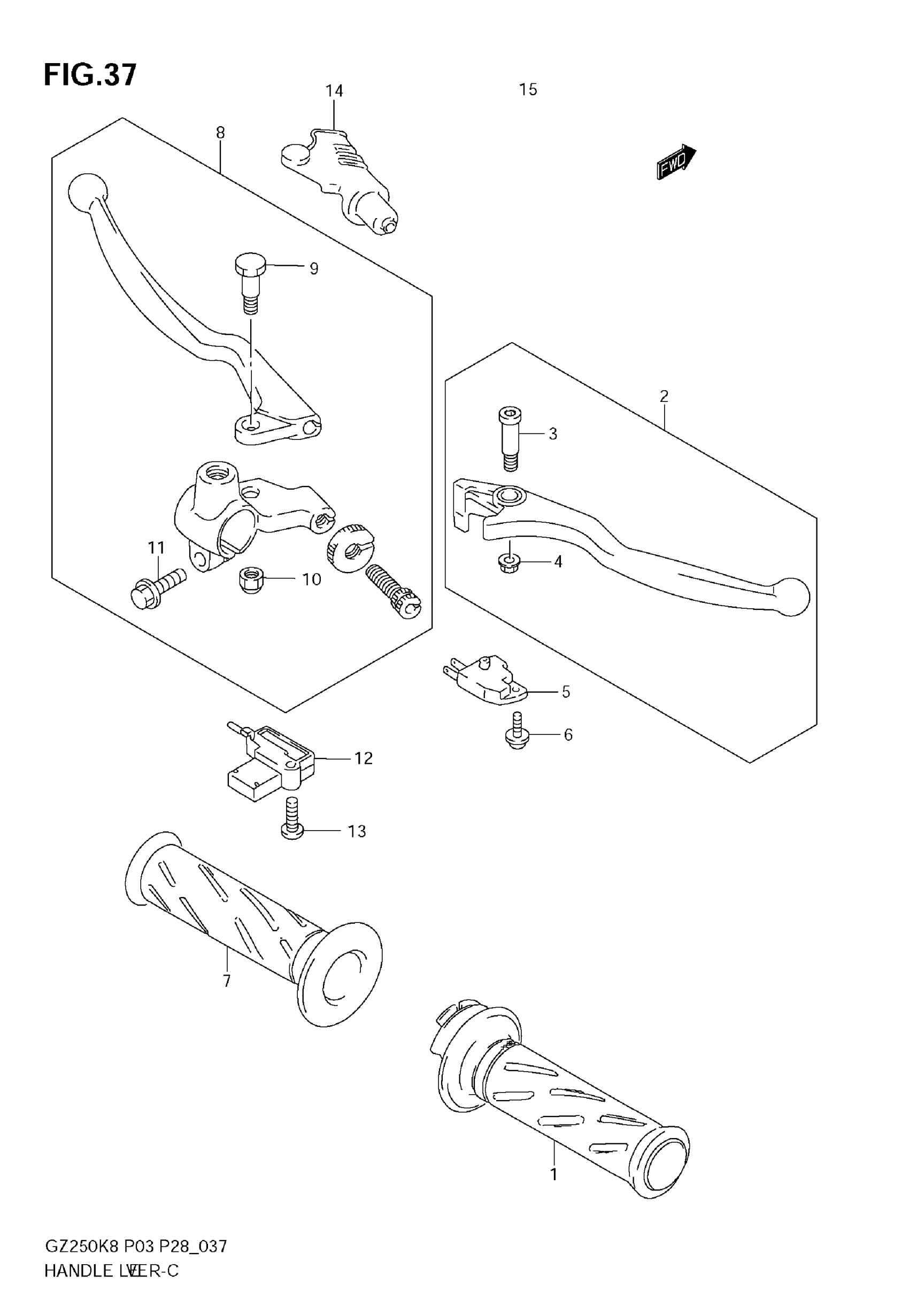

Suzuki GZ250 (2009) HANDLE LEVER Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-0AE0

Unavailable

2

LEVER, BRAKE | Includes Item(s) 3 - 4 This part replaces 57300-0AE00.

57420-26F00

$23.32

3

BOLT, LEVER

57431-0AE00

$2.78

4

NUT

D8316-1006B

Unavailable

5

SWITCH ASSY,FR BRAKE | Includes Item(s) 6 This part replaces 57460-17C01.

57460-14J02

$38.46

6

SCREW

57465-17C00

$2.19

7

GRIP, LH (BLACK) This part replaces 57211-07E00.

57211-22D02-291

$14.55

8

LEVER ASSY, CLUTCH | Includes Item(s) 9 - 11

57500-0AE00

$38.42

9

BOLT, LEVER SET

57431-0AE00

$2.78

10

NUT

D8319-6006B

Unavailable

11

BOLT This part replaces D1557-0620B.

01550-0620B

$2.39

12

.SWITCH,CLUTCH

57560-05A00

$12.15

13

SCREW

02122-0320B

$2.83

14

COVER,CLUTCH LEVER This part replaces 57661-33E00.

57661-33E01

$8.24
