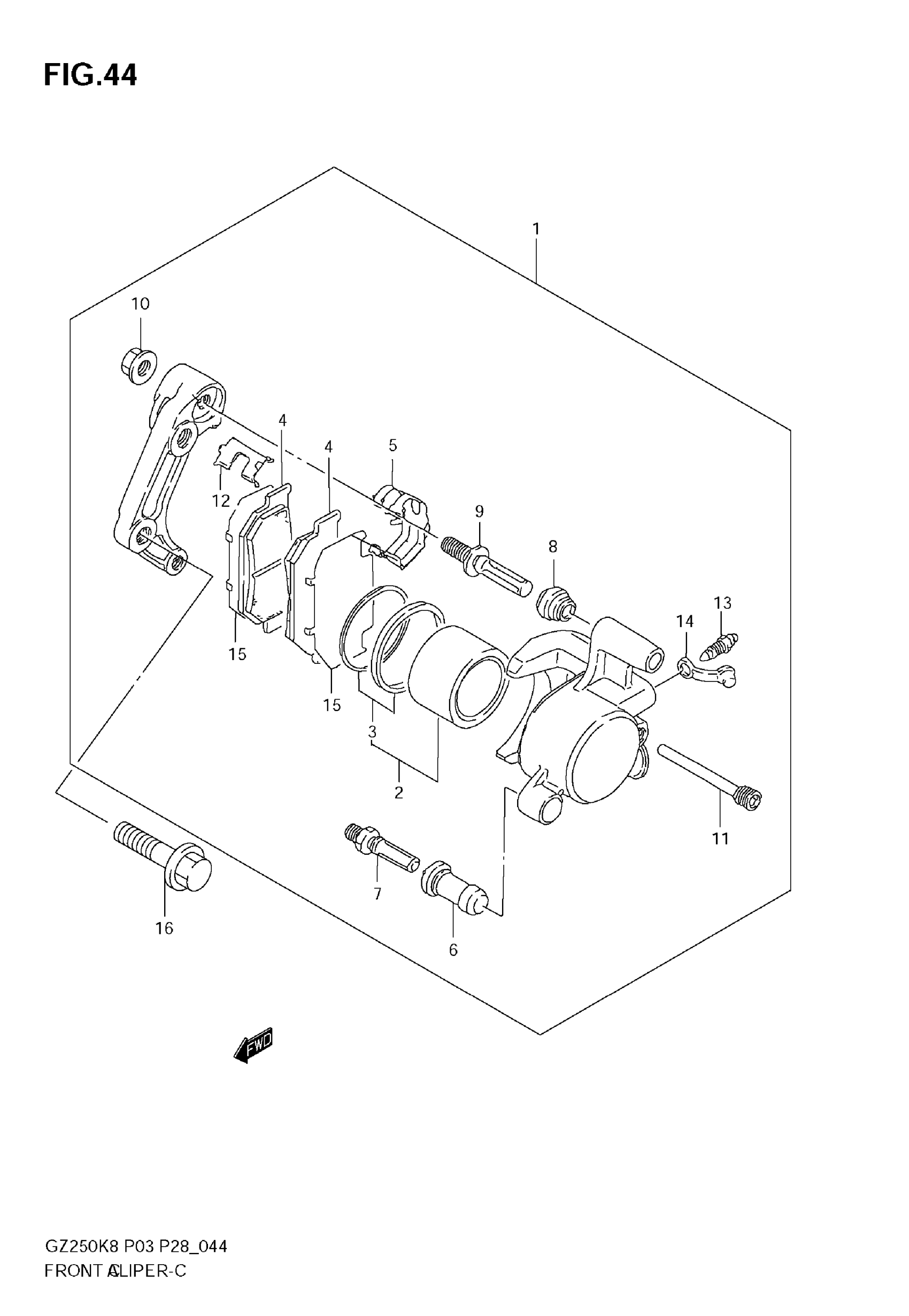

Suzuki GZ250 (2009) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, LH | Includes Item(s) 2 - 15 This part replaces 59300-12FA0.

59300-24B30-999

$320.47

2

PISTON SET

59300-0AE00

Unavailable

3

SEAL SET, PISTON

59300-0AE10

Unavailable

4

PAD SET This part replaces 59300-0AE20.

59100-26870

$36.41

5

SPRING

59315-0AEA0

Unavailable

6

BOOT This part replaces 59386-0AE00.

59386-13A00

$7.95

7

PIN

59382-0AE00

Unavailable

8

BOOT This part replaces 59303-0AE00.

59303-14500

$5.52

9

BOLT

59305-0AE00

Unavailable

10

NUT

D8316-1008B

Unavailable

11

PIN

59345-0AE00

$18.72

12

RETAINER

59316-0AE00

$6.47

13

BLEEDER This part replaces 59121-0AE00.

59121-01A00

$8.73

14

CAP

59122-0AE00

Unavailable

15

SHIM This part replaces 59371-0AE00.

59371-24B00

$15.42

16

BOLT

01550-1040B

Unavailable
