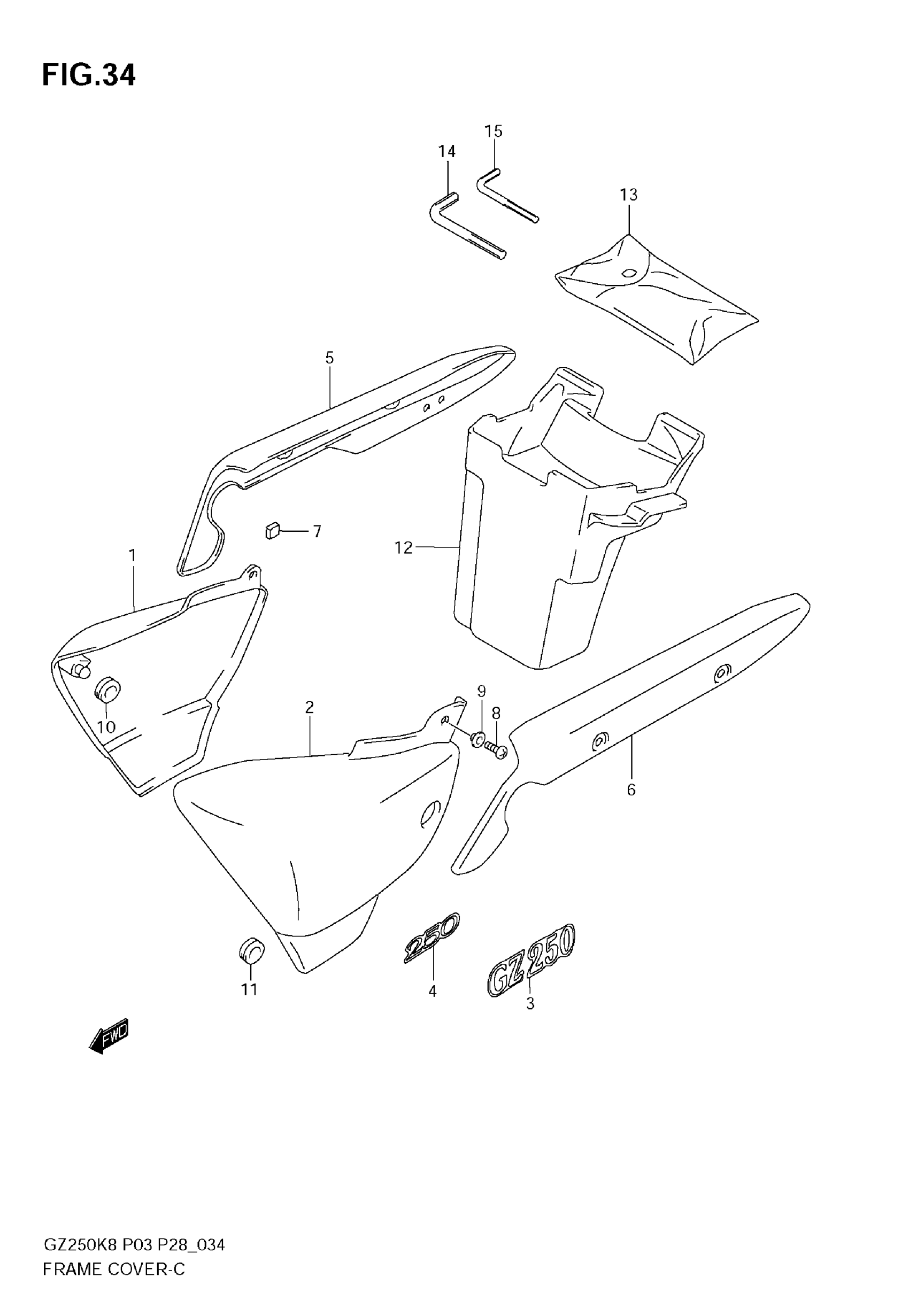

Suzuki GZ250 (2009) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK)

47111-0AE20-YAY

Unavailable

1

COVER, FRAME RH (GRAY) | MODEL K8

47111-0AE10-YHG

Unavailable

1

COVER, FRAME,R | MODEL K9 This part replaces 47111-0AE10-YC3.

47111-0AE10-NE2

Unavailable

2

COVER,FRAME,L(R This part replaces 47211-0AE20-YAY.

47211-0AE10-NE2

$17.68

2

COVER,FRAME,L(R | MODEL K8 This part replaces 47211-0AE10-YHG.

47211-0AE10-NE2

$17.68

2

COVER, FRAME LH (WHITE) | MODEL K9

47211-0AE10-YC3

Unavailable

3

EMBLEM, FRAME COVER | E3, E33 FOR YAY

68131-12F40-DUF

Unavailable

3

EMBLEM, FRAME COVER | E3, E33 FOR YHG

68131-12F40-EVT

Unavailable

3

EMBLEM, FRAME COVER | E3, E33 FOR YC3

68131-12F40-GEB

Unavailable

4

EMBLEM, SUZUKI | E28 FOR YAY

68131-12F50-NW9

Unavailable

4

EMBLEM, SUZUKI | E28 FOR YHG

68131-12F50-EVU

Unavailable

4

EMBLEM, SUZUKI | E28 FOR YC3

68131-12F50-GEC

Unavailable

5

COVER, FRAME REAR RH

47121-12FA0

Unavailable

6

COVER, FRAME REAR LH

47221-12FA0

Unavailable

7

CUSHION (80X20X10) This part replaces 53123-33E00.

33652-01D10

$5.17

8

SCREW

D2116-0612B

Unavailable

9

WASHER

09689-06055

Unavailable

10

CUSHION

09320-08018

$3.04

11

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

12

BODY, LUGGAGE BOX

92211C12F02J000

Unavailable

13

TOOL ASSY This part replaces 09800-21022.

09800-21104

$34.10

14

SPANNER 6, HEXAGON

09816-00050

$5.03

15

SPANNER 4, HEXAGON

09816-00103

$6.17
