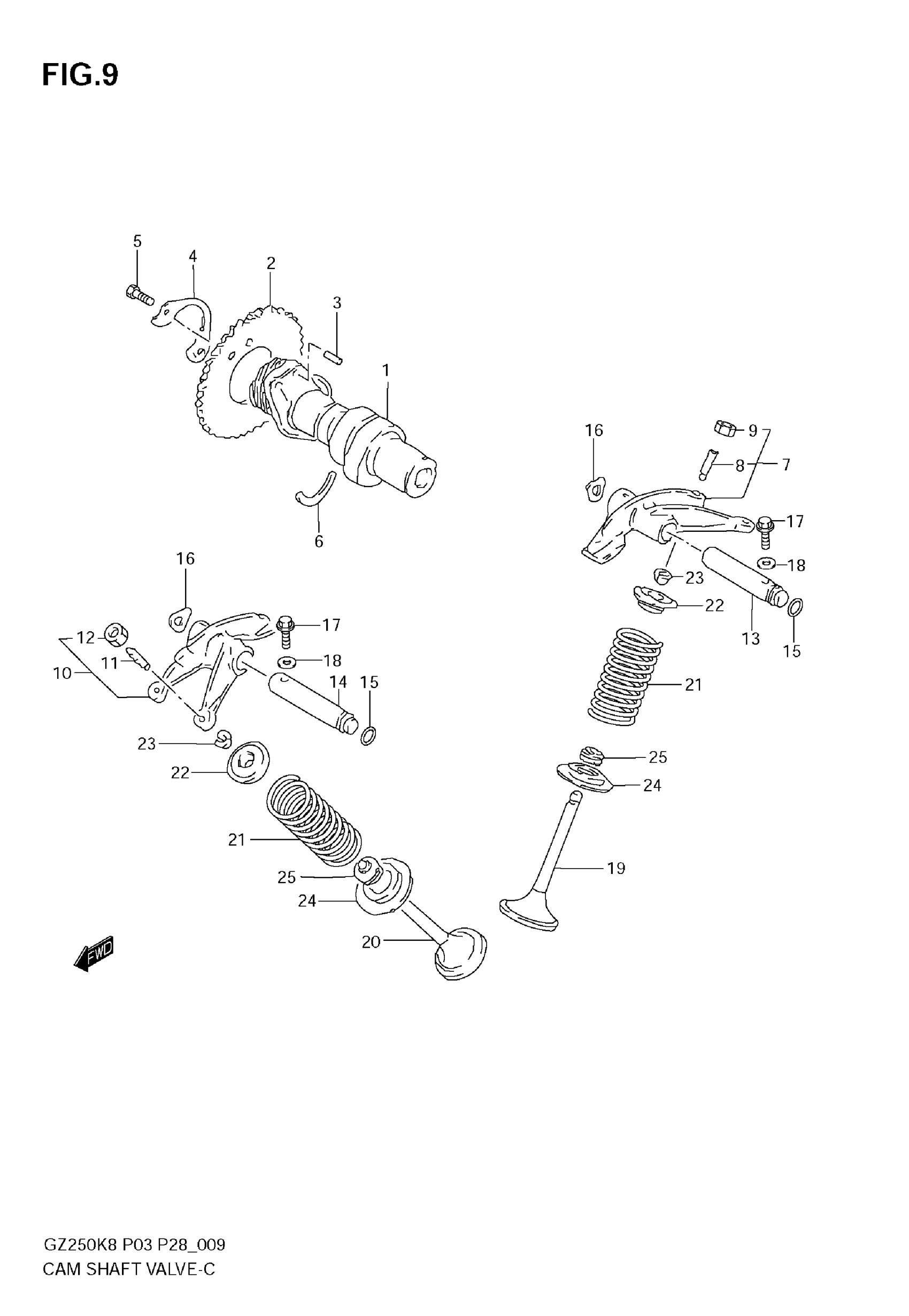

Suzuki GZ250 (2009) CAM SHAFT/VALVE Diagram

#

Description
Price

1

CAM SHAFT

12711-13F00

$281.15

2

SPROCKET, CAM SHAFT (NT:42)

12741-37400

Unavailable

3

PIN

04221-05109

$1.49

4

WASHER, SPROCKET

12747-44001

$2.50

5

BOLT (6X12.5)

09111-06027

$1.72

6

C RING

09390-25003

$2.48

7

ARM, VALVE ROCKER IN | Includes Item(s) 8 - 9

12840-13F00

$86.90

8

SCREW, TAPPET ADJUSTING

12842-49201

$6.63

9

.NUT,TAPPET ADJUSTING

12843-27A00

$2.94

10

ARM, VALVE ROCKER EX | Includes Item(s) 11 - 12

12850-13F00

$86.90

11

SCREW, TAPPET ADJUSTING

12842-49201

$6.63

12

.NUT,TAPPET ADJUSTING

12843-27A00

$2.94

13

SHAFT, VALVE ROCKER ARM INTAKE

12861-38200

Unavailable

14

SHAFT, VALVE ROCKER ARM

12871-38200

$29.25

15

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

16

WASHER

09164-12018

$1.49

17

BOLT

02162-0630B

Unavailable

18

GASKET

09168-06023

$2.35

19

VALVE, INTAKE

12911-38200

$43.92

20

VALVE, EXHAUST

12912-38201

$76.35

21

SPRING, VALVE

12921-38211

$9.58

22

RETAINER, VALVE SPRING

12931-49201

$6.91

23

COTTER, VALVE

12932-49200

$2.28

24

SEAT, VALVE SPRING

12933-38200

$6.38

25

OIL SEAL

09289-05015

$6.70
