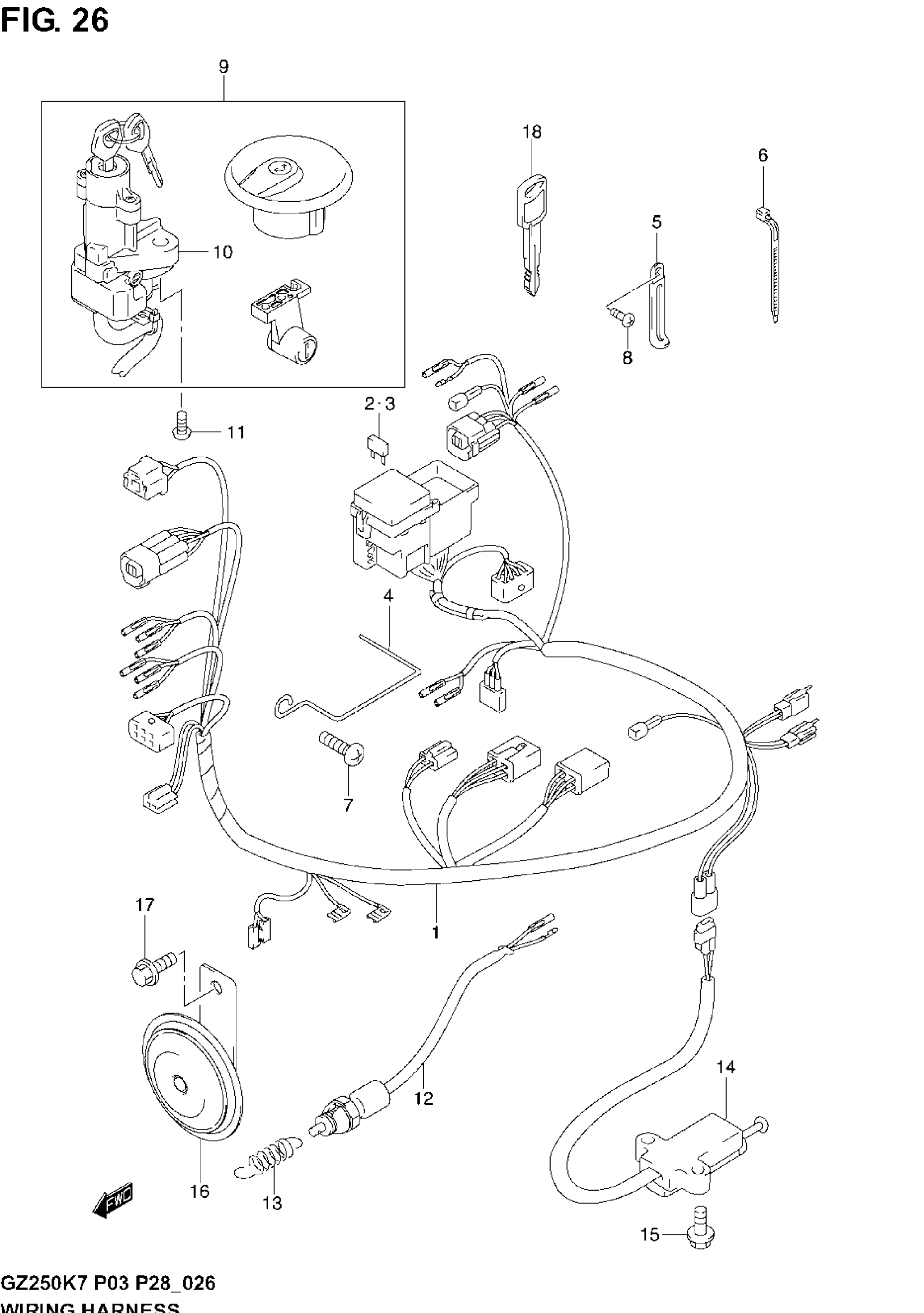

Suzuki GZ250 (2007) WIRING HARNESS Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 36610-13FA0.

36610-13FA1

Unavailable

2

FUSE (10A)

09481-10501

$2.06

3

FUSE (15A)

09481-15501

$2.02

4

GUIDE, WIRING HARNESS

36619-23E00

Unavailable

5

CLAMP (L:45)

09404-06429

$1.83

5

CLAMP This part replaces 09404-06431.

09404-06039

$1.74

5

CLAMP (L:135)

09404-06435

$3.68

6

CLAMP (L:95)

09407-11401

$2.63

6

CLAMP (L:125)

09407-14403

$2.26

6

CLAMP (L:165)

09407-18402

$2.19

6

CLAMP (L:235)

09407-25401

$4.66

7

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

8

SCREW This part replaces 03541-04103.

03541-0410A

$1.68

9

LOCK SET | E3, E28

37102-33870

Unavailable

9

LOCK SET | E33; Includes Item(s) 10

37102-33890

Unavailable

10

LOCK ASSY,STEER This part replaces 37100-33E20.

37100-33E21

$201.45

11

SCREW

09139-08016

$3.37

12

SWITCH ASSY, STOP LAMP

37740-04A10

$23.32

13

SPRING, STOP LAMP

09443-06046

$3.10

14

SWITCH ASSY,SID This part replaces 37840-44A20.

37840-44X52

$57.00

15

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

16

HORN ASSY This part replaces 38500-12FA0.

38500-10D10

Unavailable

17

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.32

18

KEY, BLANK | OPT

37146-33E00

$21.21
