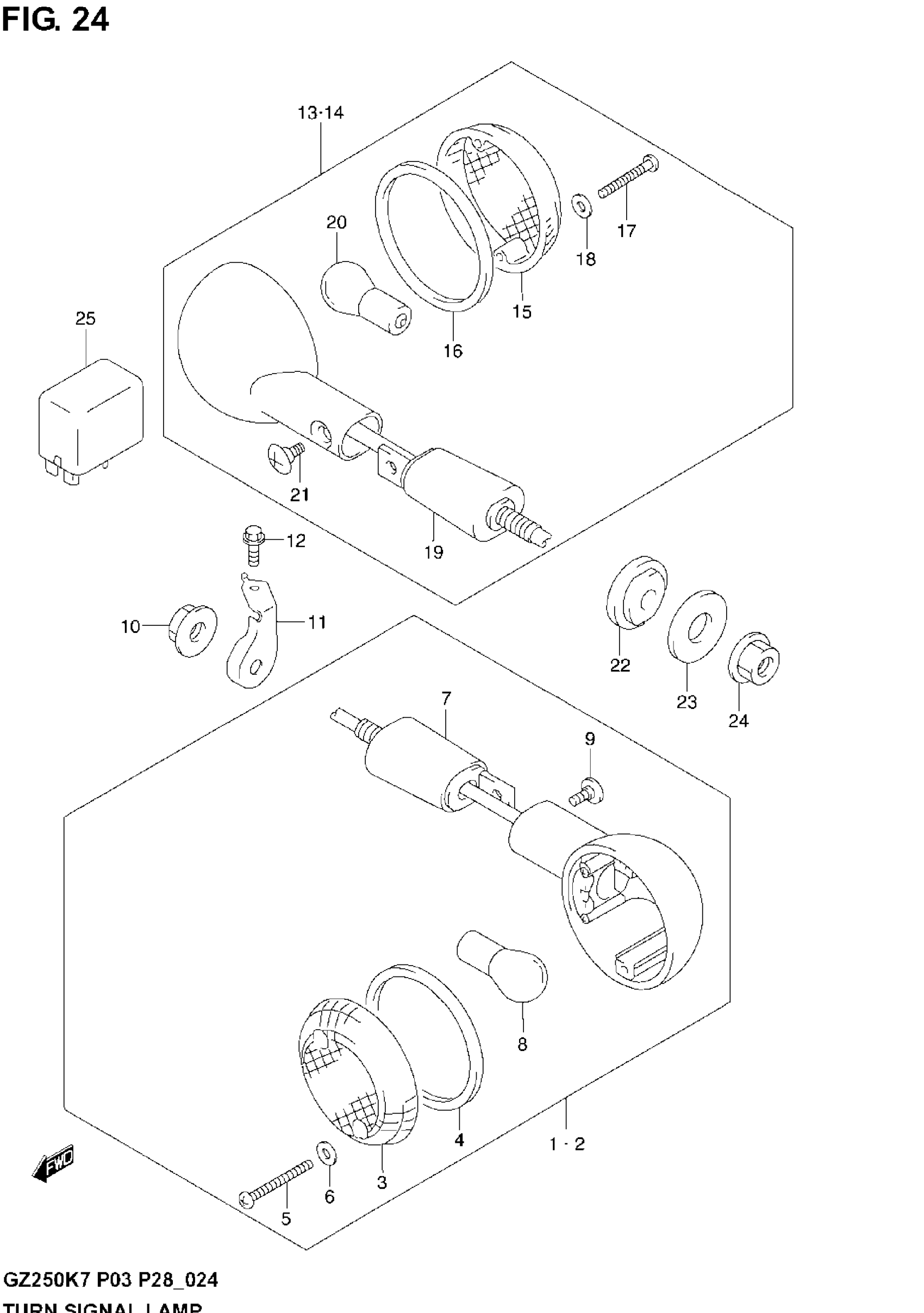

Suzuki GZ250 (2007) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT RH

35601-33DA0

$144.68

2

LAMP ASSY, FRONT LH | Includes Item(s) 3 - 9

35602-33DA0

$144.68

3

LENS

35612-38A30

$17.90

4

GASKET

35613-38A00

$9.74

5

SCREW This part replaces 03211-04253.

03211-0425B

$2.70

6

GASKET

35627-43010

$2.28

7

STAY, TURN SIGNAL

35619-45C10

$57.66

8

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

9

SCREW

35623-38A01

$5.05

10

NUT This part replaces 08316-10103.

08316-1010B

$2.66

11

BRACKET, FR RH

35670-12F00

Unavailable

11

BRACKET, FR LH

35680-12F00

$13.05

12

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

13

LAMP ASSY, REAR TURN, R

35603-33DA0

$141.18

14

LAMP ASSY, REAR TURN, L | Includes Item(s) 15 - 21

35604-33DA0

$141.18

15

LENS

35612-38A01

$13.81

16

GASKET

35613-38A00

$9.74

17

SCREW This part replaces 03211-04253.

03211-0425B

$2.70

18

GASKET

35627-43010

$2.28

19

STAY, TURN SIGNAL

35659-45C10

$35.44

20

BULB (12V, 21W)

09471-12045

$3.27

21

SCREW

35623-38A01

$5.05

22

SPACER

35695-17C00

$4.03

23

WASHER (10.5X30X2.3)

09160-10501

$2.33

24

NUT This part replaces 08316-10103.

08316-1010B

$2.66

25

RELAY ASSY,TURN This part replaces 38610-12FA0.

38610-12FA1

$105.10
