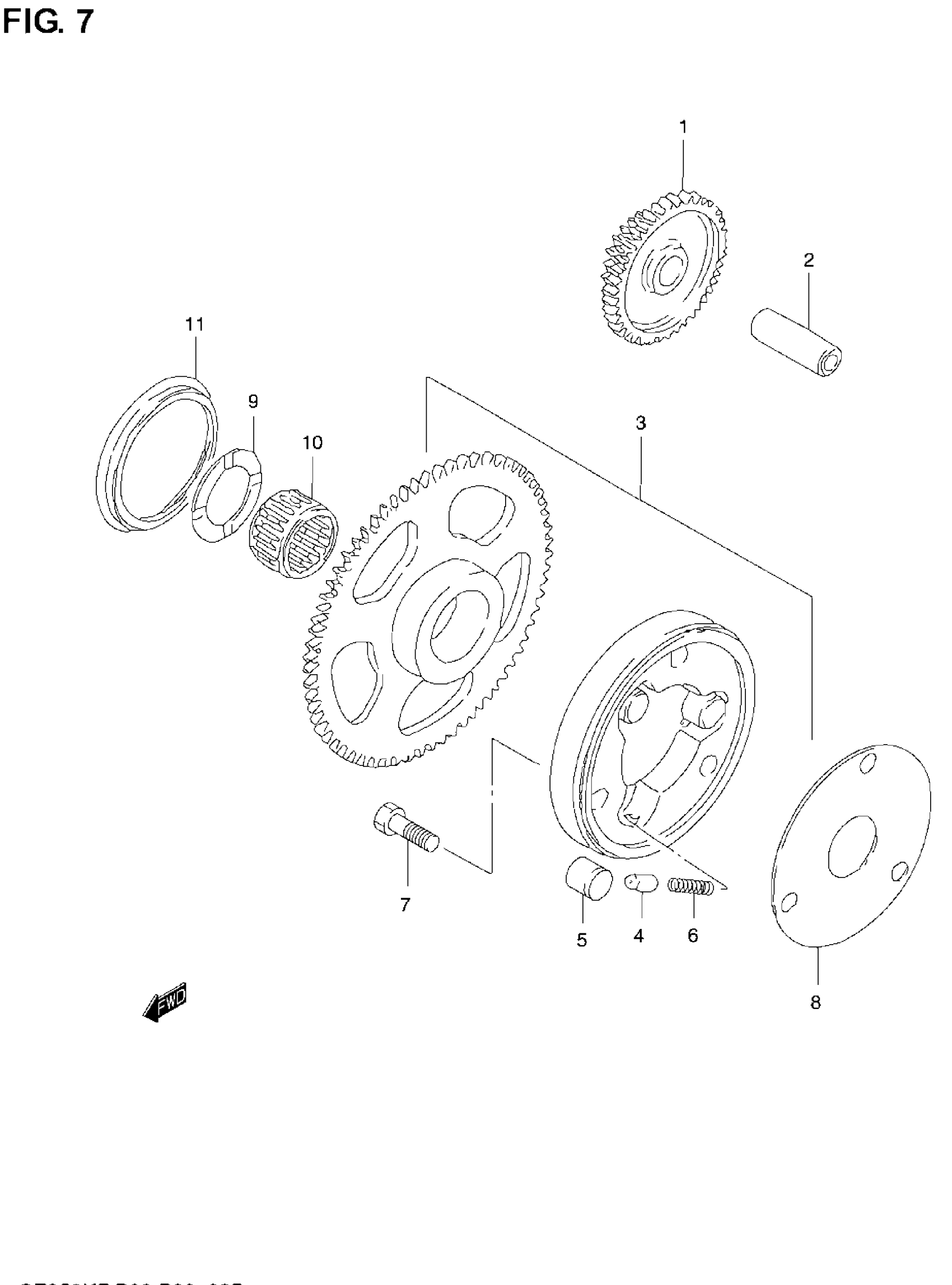

Suzuki GZ250 (2007) STARTER CLUTCH Diagram

#

Description

Price

1

GEAR, STARTER IDLE This part replaces 12611-38300.

12611-38301

$83.57

2

PIN

09206-13007

$16.00

3

CLUTCH SET, STARTER | <-- 12600-38813; Includes Item(s) 4 - 6 This part replaces 12600-38814.

12600-38815

$260.68

4

PIECE, PUSH

12633-31000

$8.77

5

ROLLER

09261-14001

$3.91

6

SPRING

09440-04015

$2.22

7

BOLT

09100-08299

$4.17

8

SHIM, STARTER CLUTCH HUB

12649-49300

$18.02

9

WASHER (27X40X2.5)

09160-27005

$12.93

10

BEARING

09263-27004

$33.15

11

OIL SEAL

09289-52002

$31.36
