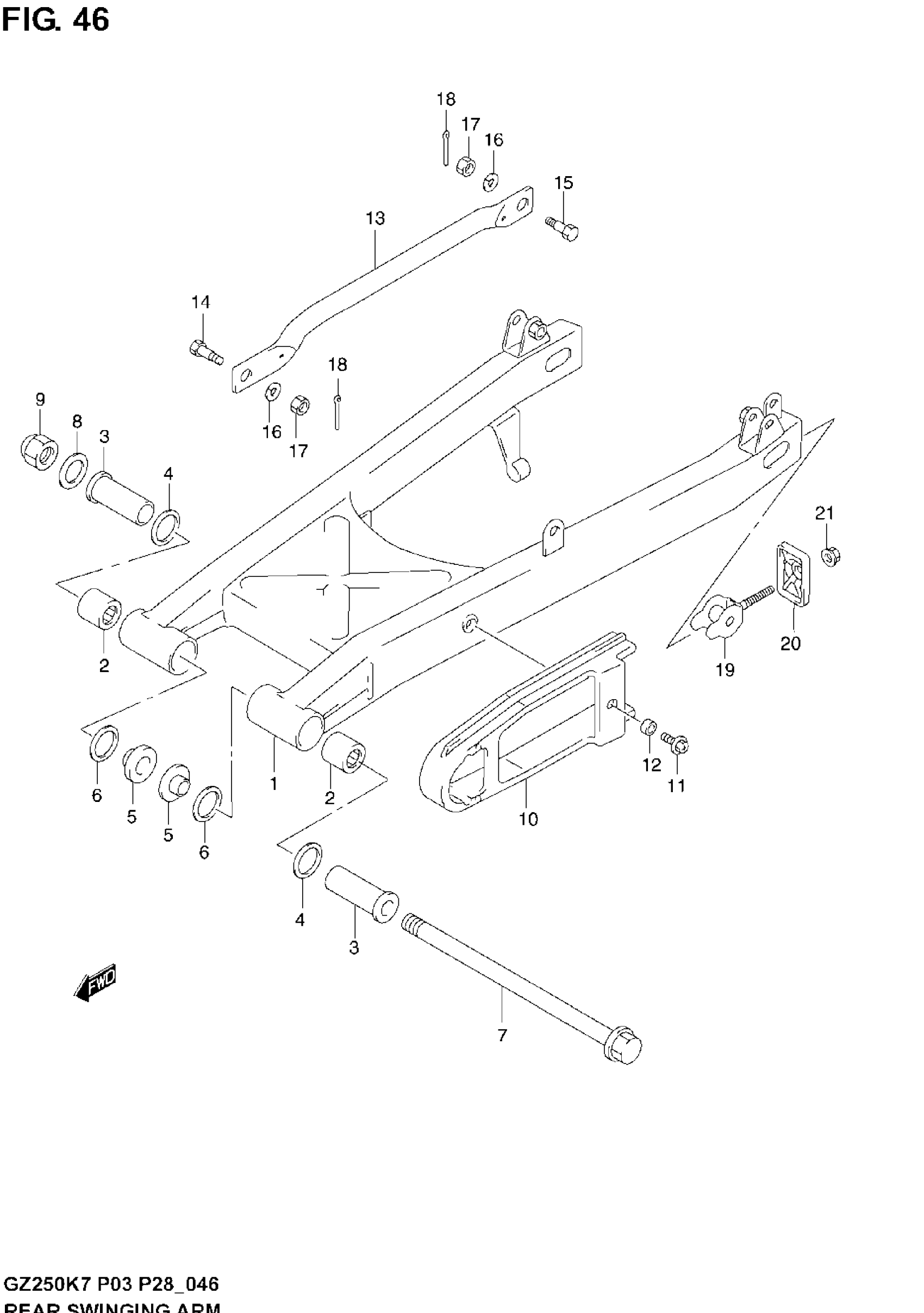

Suzuki GZ250 (2007) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2

61000-13FA0-EE3

Unavailable

2

BEARING (20X27X20)

09263-20041

$26.47

3

SPACER, PIVOT OUTER This part replaces 61251C13F00J000.

61251-13F00

Unavailable

4

SEAL, OIL (20X27X5)

09286-20001

$4.32

5

SPACER, PIVOT INNER This part replaces 61252C13F01J000.

61252-13F01

Unavailable

6

SEAL, OIL (20X27X5)

09286-20001

$4.32

7

SHAFT, PIVOT

61211-38301

Unavailable

8

WASHER This part replaces 08322-01143.

08322-0114A

$1.84

9

NUT This part replaces 08319-21148.

08319-2114A

$3.96

10

BUFFER, CHAIN TOUCH DEFENSE

61273-12F00

Unavailable

11

BOLT This part replaces 09116-06111.

09116-06152

$2.36

12

SPACER (6.5X9X3.8)

09180-06255

$2.53

13

TORQUE LINK, REAR (BLACK)

64311-26F00-019

Unavailable

14

BOLT, FRONT (8X22.5)

09111-08012

$3.78

15

BOLT, REAR (8X26.5)

09111-08013

$3.04

16

WASHER, LOCK

09162-08008

$2.06

17

NUT

09140-08008

$1.49

18

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

19

ADJUSTER, CHAIN

61410-12F00

Unavailable

20

PLATE, CHAIN ADJUSTER

61421-38200

$5.21

21

NUT This part replaces 08319-31088.

08319-3108A

$2.32
