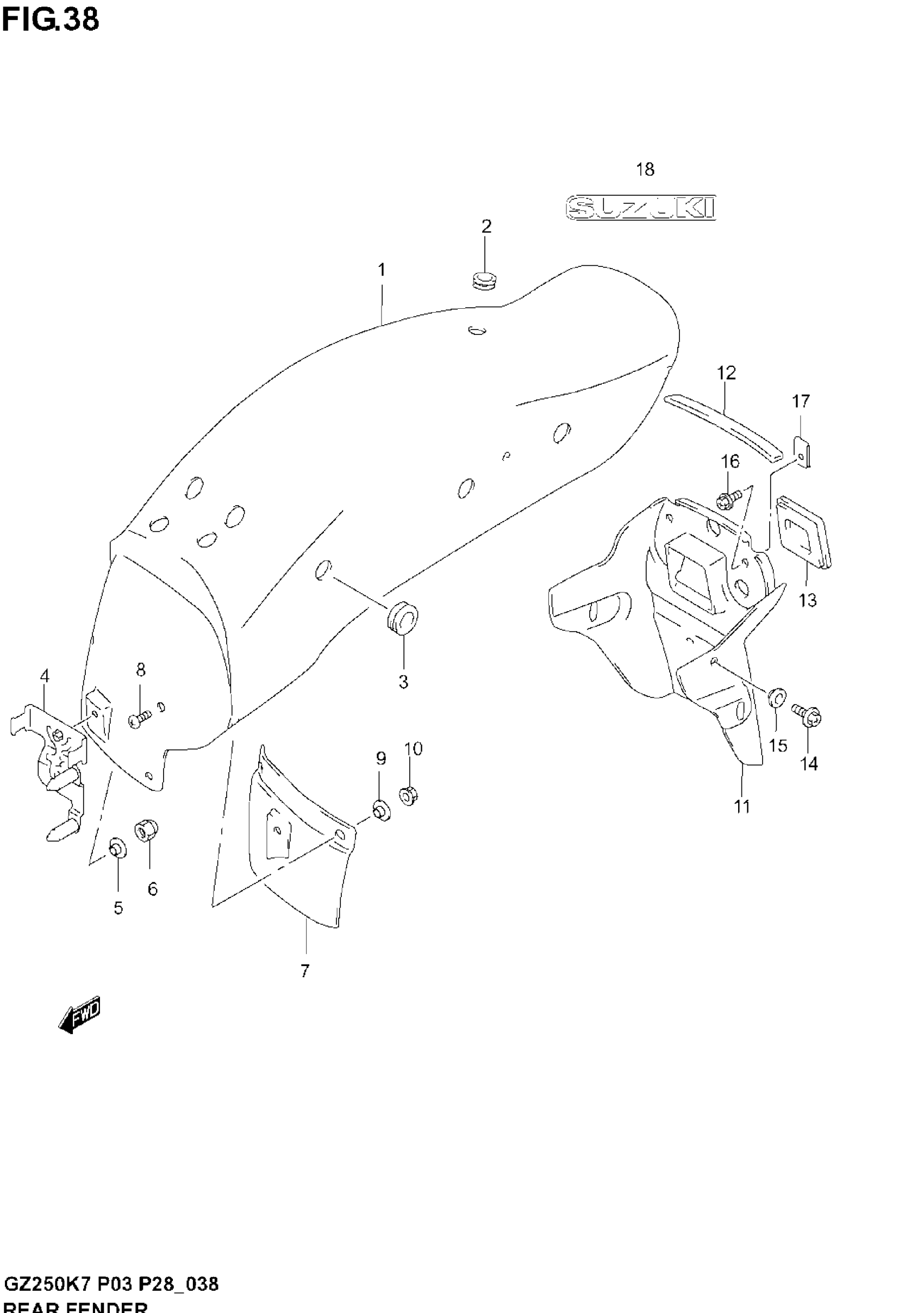

Suzuki GZ250 (2007) REAR FENDER Diagram

#

Description
Price

1

FENDER,REAR | MODEL K3/K4/K5/K6 This part replaces 63111-12F00-Y7L.

63111-12F00-NE2

$30.60

1

FENDER,REAR | MODEL K3/K4 E28 This part replaces 63111-12F00-Y7H.

63111-12F00-NE2

$30.60

1

FENDER, REAR (BLUE) | MODEL K5 E28

63111-12F00-YC2

Unavailable

1

FENDER,REAR | MODEL K6 This part replaces 63111-12F00-YLV.

63111-12F00-NE2

$30.60

1

FENDER,REAR | MODEL K7 This part replaces 63111-12F00-YAY.

63111-12F00-NE2

$30.60

1

FENDER, REAR (BLUE) | MODEL K7

63111-12F00-YBA

Unavailable

2

CUSHION, UPPER

09320-13015

$2.85

3

CUSHION, SIDE

63118-12F00

Unavailable

4

BRACKET, REAR FENDER

63140-13F00

Unavailable

5

WASHER

09169-06071

$2.50

6

NUT This part replaces 08313-10063.

08313-1006A

$1.84

7

MUD GUARD, REAR FENDER

63331C12F00J000

$8.47

8

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

9

WASHER

09169-06055

$2.27

10

NUT This part replaces 08316-10063.

08316-1006B

$2.50

11

EXTENSION, REAR FENDER

63311C12F00J000

Unavailable

12

CUSHION, EXTENSION

63312-48E00

Unavailable

13

CAP,RR FENDER E This part replaces 63191-48E00.

63191-48E01

$13.17

14

SCREW, REAR SIDE BRKT This part replaces 02162-06123.

02162-0612A

$2.05

15

WASHER

09169-06071

$2.50

16

SCREW This part replaces 02162-06163.

02162-0616B

$2.03

17

NUT, REAR FENDER EXT.

47153-19C01

$7.95

18

EMBLEM "SUZUKI" (SILVER) | MODEL K5/K6 FOR Y7L, YC2

68171-12F00-YD8

Unavailable

18

EMBLEM "SUZUKI" (GRAY) | MODEL K6 FOR YLV

68171-12F00-YU8

Unavailable

18

EMBLEM "SUZUKI" (SILVER) | MODEL K7 FOR YAY, YBA

68171-12F00-YD8

Unavailable
