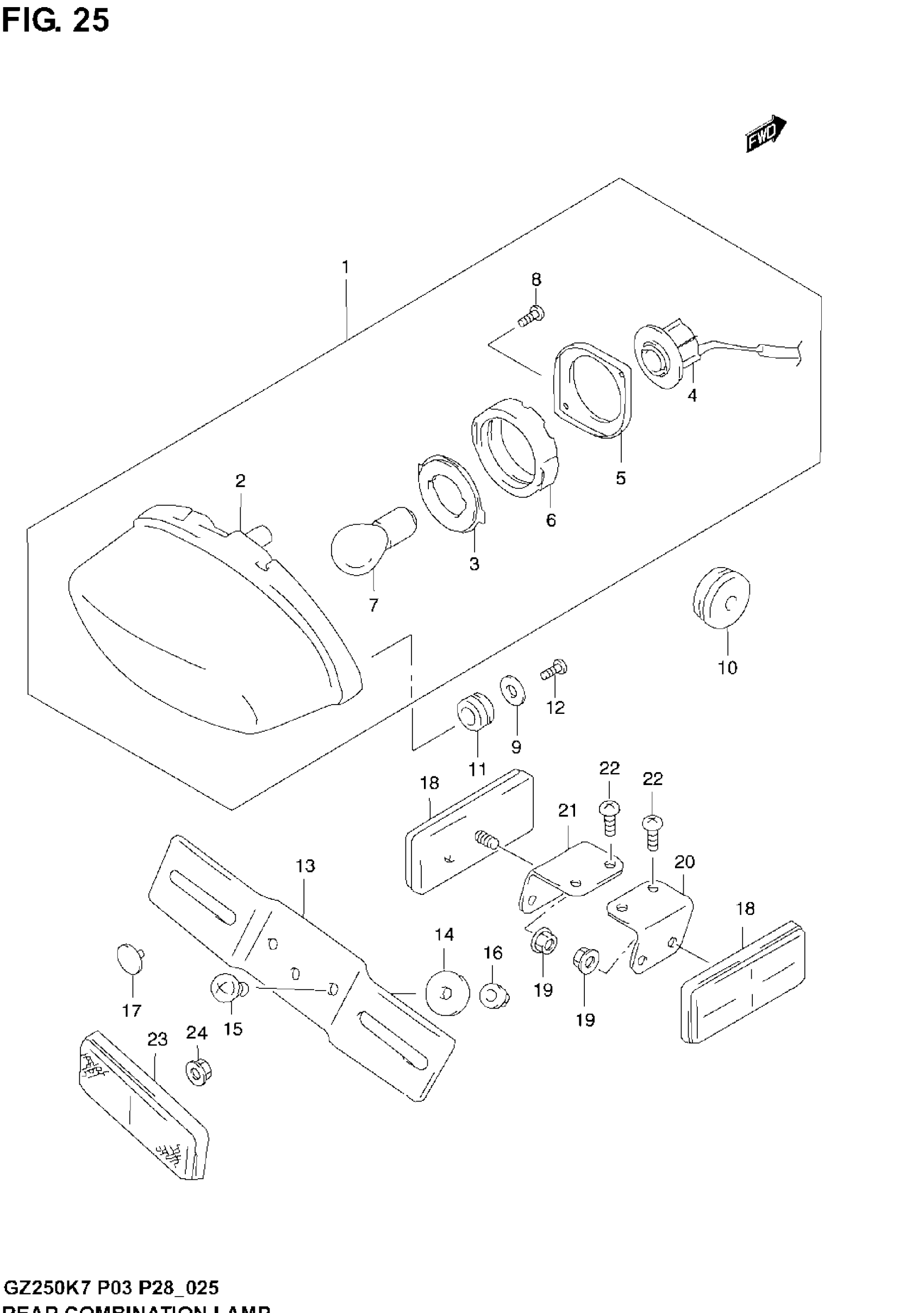

Suzuki GZ250 (2007) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMB | Includes Item(s) 2 - 8

35710-12F30

$154.88

2

LAMP UNIT

35740-42E11

$141.12

3

PLATE, NO.1

35716-48B21

$20.22

4

SOCKET & CORD

35718-12F00

Unavailable

5

PLATE

35736-48B21

$21.92

6

CUSHION

35765-48B21

$12.97

7

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

8

SCREW This part replaces 03211-04123.

03211-0412A

$2.23

9

WASHER, REAR COMB (5.5X20X1.2)

09160-05501

$1.84

10

GROMMET

09308-08007

Unavailable

11

CUSHION, REAR COMB

09320-10015

$2.54

12

SCREW This part replaces 03541-05123.

03541-0512A

$1.49

13

BRACKET, LICENSE PLATE

35927-13F00

$14.20

14

.WASHER (6.5X20X1.6)

09160-06088

$1.65

15

SCREW This part replaces 02142-06123.

02142-0612A

$1.49

16

NUT This part replaces 08316-10063.

08316-1006B

$2.50

17

CUSHION, REAR FENDER

09321-06026

$2.92

18

REFLECTOR ASSY, RR SIDE This part replaces 35970-09EF0.

35970-07F01

$20.88

19

NUT This part replaces 08316-10053.

08316-1005A

$2.19

20

BRACKET, REAR RH

35974-13F00

Unavailable

21

BRACKET, REAR LH

35975-13F00

Unavailable

22

SCREW This part replaces 02142-06083.

02142-0608A

$1.49

23

REFLECTOR ASSY, RR SIDE This part replaces 35970-09EF0.

35970-07F01

$20.88

24

NUT This part replaces 08316-10053.

08316-1005A

$2.19
