Description

Price

1

PIPE, EXHAUST LH

14160-13F00

$222.32

2

GASKET, EXHAUST PIPE

14181-37D00

$4.56

3

CLAMP, EXHAUST PIPE LH

14182-37D00

$17.12

4

BOLT

09103-06203

$2.85

5

MUFFLER This part replaces 14305-13F01.

14305-13F02-H01

$352.60

6

BOLT This part replaces 01580-10303.

01580-1030A

$4.60

7

CONNECTOR, MUFFLER

14771-19B00

$17.04

8

BOLT (8X35) This part replaces 01550-08353.

01550-0835A

$3.04

9

COVER, MUFFLER

14780-13F01

Unavailable

10

CLAMP, MUFFLER COVER

14785-38301

$7.37

11

SCREW This part replaces 02112-05203.

02112-0520B

$1.84

12

SCREW This part replaces 02112-76103.

02112-7610A

$2.28

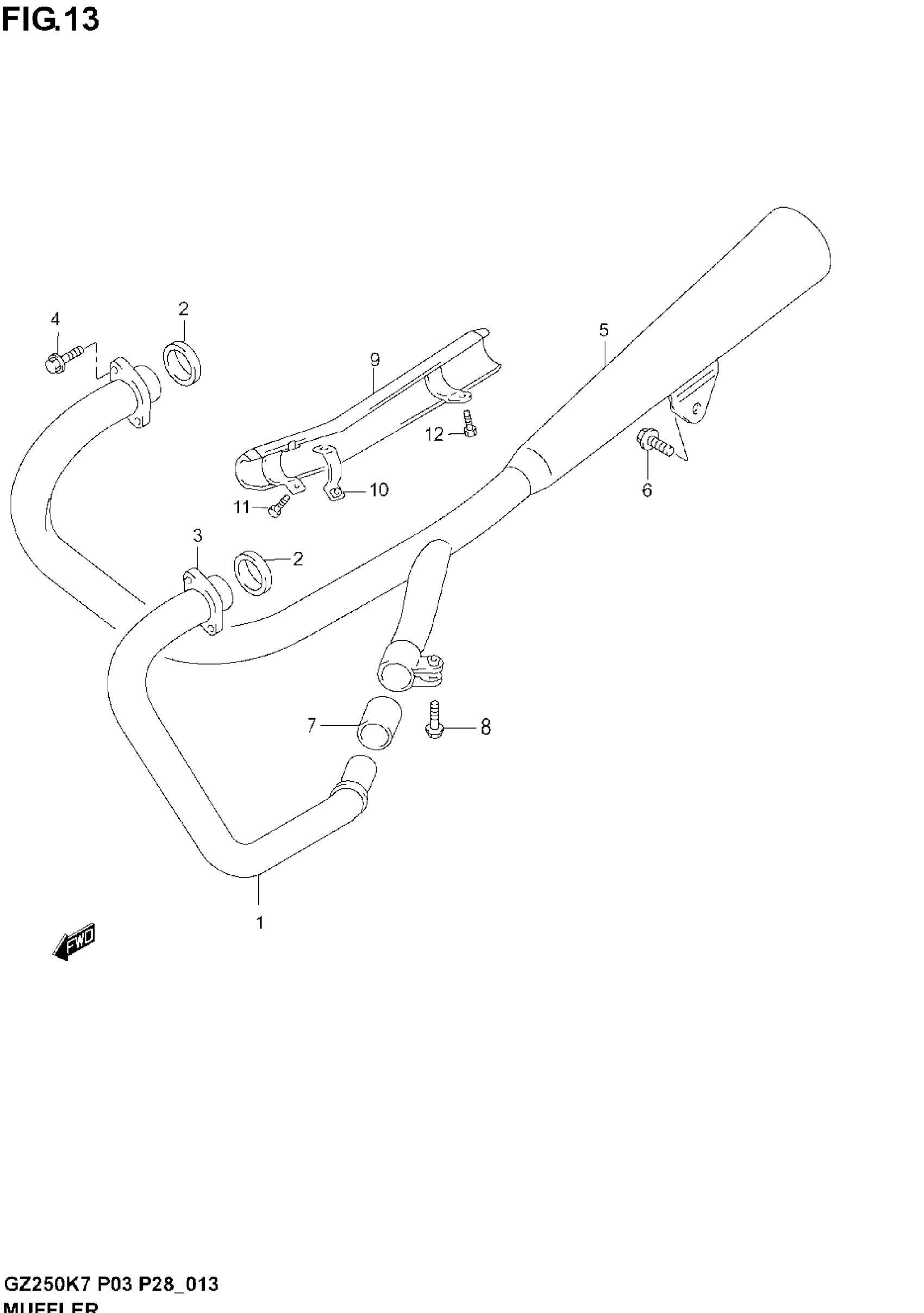

Suzuki GZ250 (2007) MUFFLER Diagram
