2007 Suzuki GZ250 Headlamp Housing Diagram

← All diagrams

Find the part on the Headlamp Housing diagram for your 2007 Suzuki GZ250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

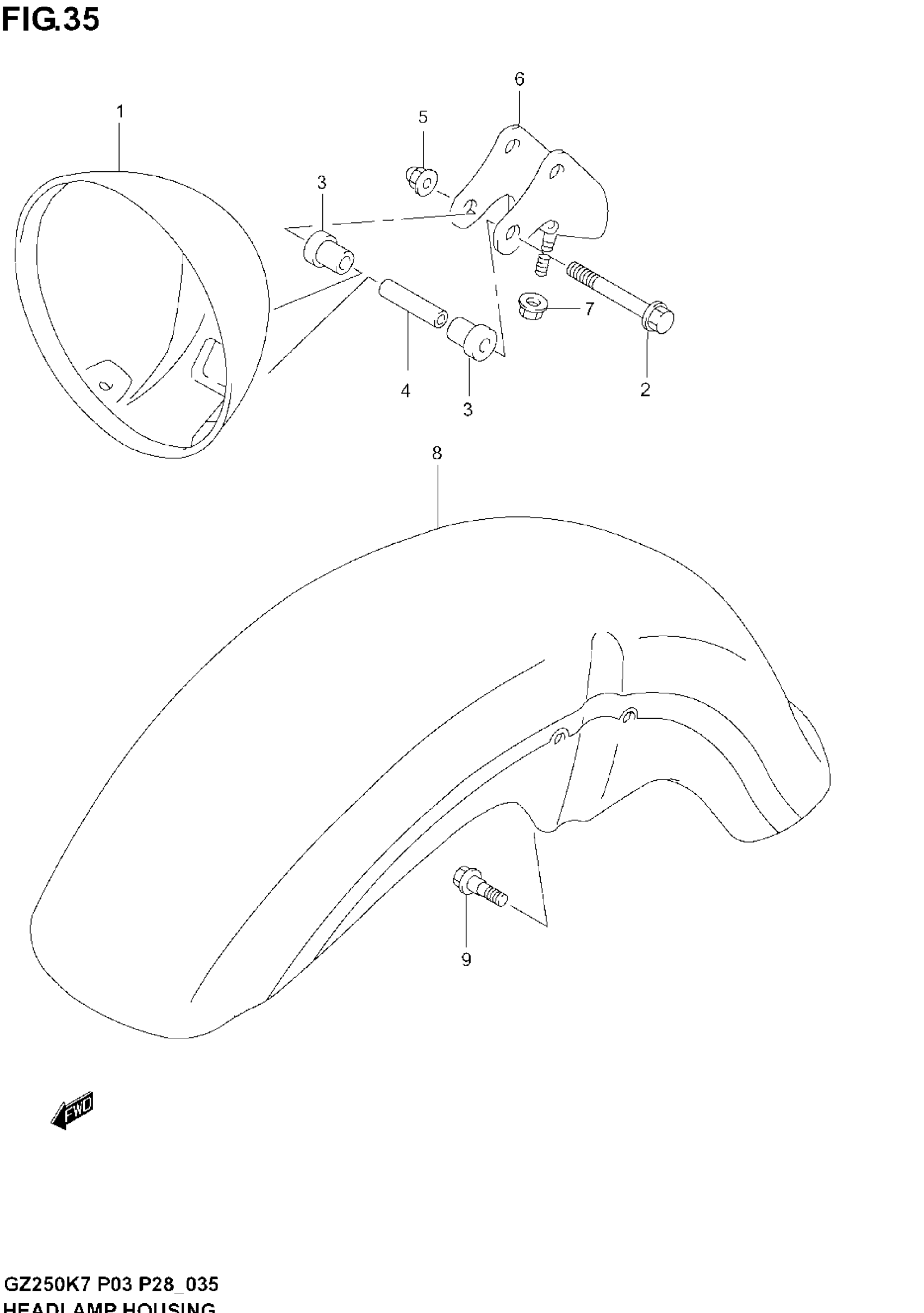

2007 Suzuki GZ250 Headlamp Housing Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, HEADLAMP This part replaces 51811-12FA0.

51811-12F00

1
Out of stock

2

BOLT

01547-06507

2
Out of stock

3

CUSHION, HEADLAMP HOUSING

51827-12F00

4
Out of stock

4

SPACER

09180-06279

2
Out of stock

5

NUT

08313-20067

2
Out of stock

6

BRACKET, HEADLAMP HOUSING

51850-12F01

1
Out of stock

7

NUT This part replaces 08319-31103.

08319-3110A

1
Out of stock

8

FENDER,FRONT (R This part replaces 53111-12F01-Y7L.

53111-12F01-NE2

1
Out of stock

8

FENDER, FRONT (BLUE) | MODEL K3/K4 E28

53111-12F01-Y7H

1
Out of stock

8

FENDER, FRONT (BLUE) | MODEL K5 E28

53111-12F01-YC2

—
Out of stock

8

FENDER, FRONT (SILVER) | MODEL K6

53111-12F01-YLV

1
Out of stock

8

FENDER, FRONT (BLACK) | MODEL K7

53111-12F01-YAY

1
Out of stock

8

FENDER, FRONT (BLUE) | MODEL K7

53111-12F01-YBA

1
Out of stock

9

BOLT

09111-06066

4

$2.85

In stock
