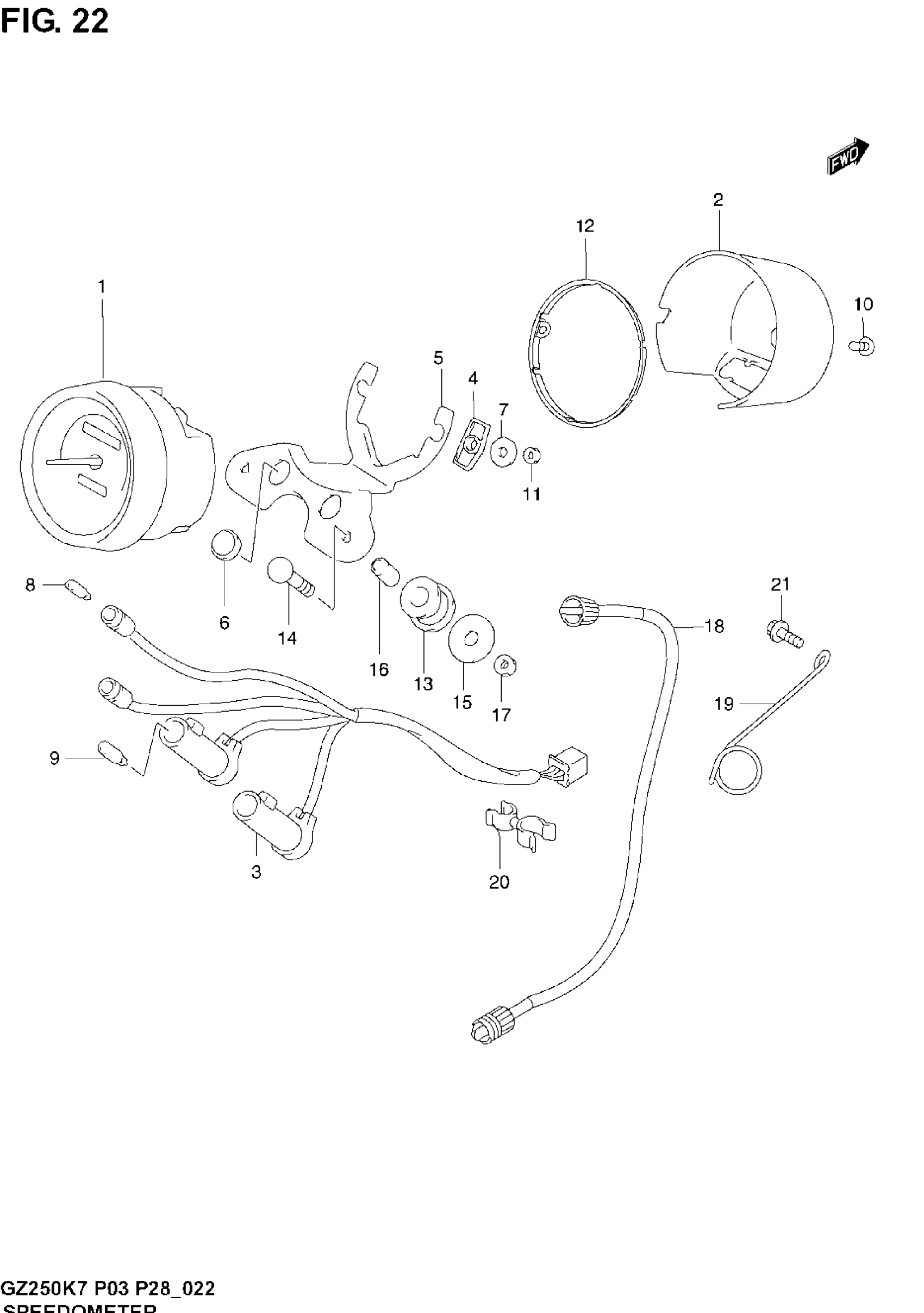

Suzuki GZ250 (2007) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34110-13F40

Unavailable

1

SPEEDOMETER (KILO) | E28

34110-13F30

Unavailable

2

COVER, UNDER

34111-13F30

Unavailable

3

SOCKET ASSY

34170-13F30

Unavailable

4

CUSHION,DAMPER This part replaces 34191-25D00.

34191-25D01

$9.78

5

BRACKET, METER

34950-13F30

Unavailable

6

LENS, NEUTRAL (GREEN)

36321-13F30

$6.13

7

WASHER This part replaces 34181-45C10.

09160-05013

$1.25

8

BULB (12V, 3.4W)

09471-12028

$1.98

9

.BULB (12V1.7W)

09471-12108

$3.08

10

SCREW This part replaces 03541-14128.

03541-1412A

$2.16

11

NUT

08310-00057

$1.83

12

PACKING

34288-13F30

Unavailable

13

CUSHION. METER BRACKET

34956-31001

$4.11

14

BOLT (6X30)

09107-06003

$2.80

15

WASHER (6.5X28X1.6)

09160-06136

$1.83

16

SPACER (6.5X10X16.5)

09180-06335

Unavailable

17

NUT This part replaces 08310-00063.

08310-0006A

$1.83

18

CABLE ASSY,SPEE This part replaces 34910-12F00.

34910-12F01

$35.12

19

GUIDE, SPEEDOMETER CABLE

34938-37000

$4.21

20

CLAMP This part replaces 09408-00119.

09408-00056

$3.37

21

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97
