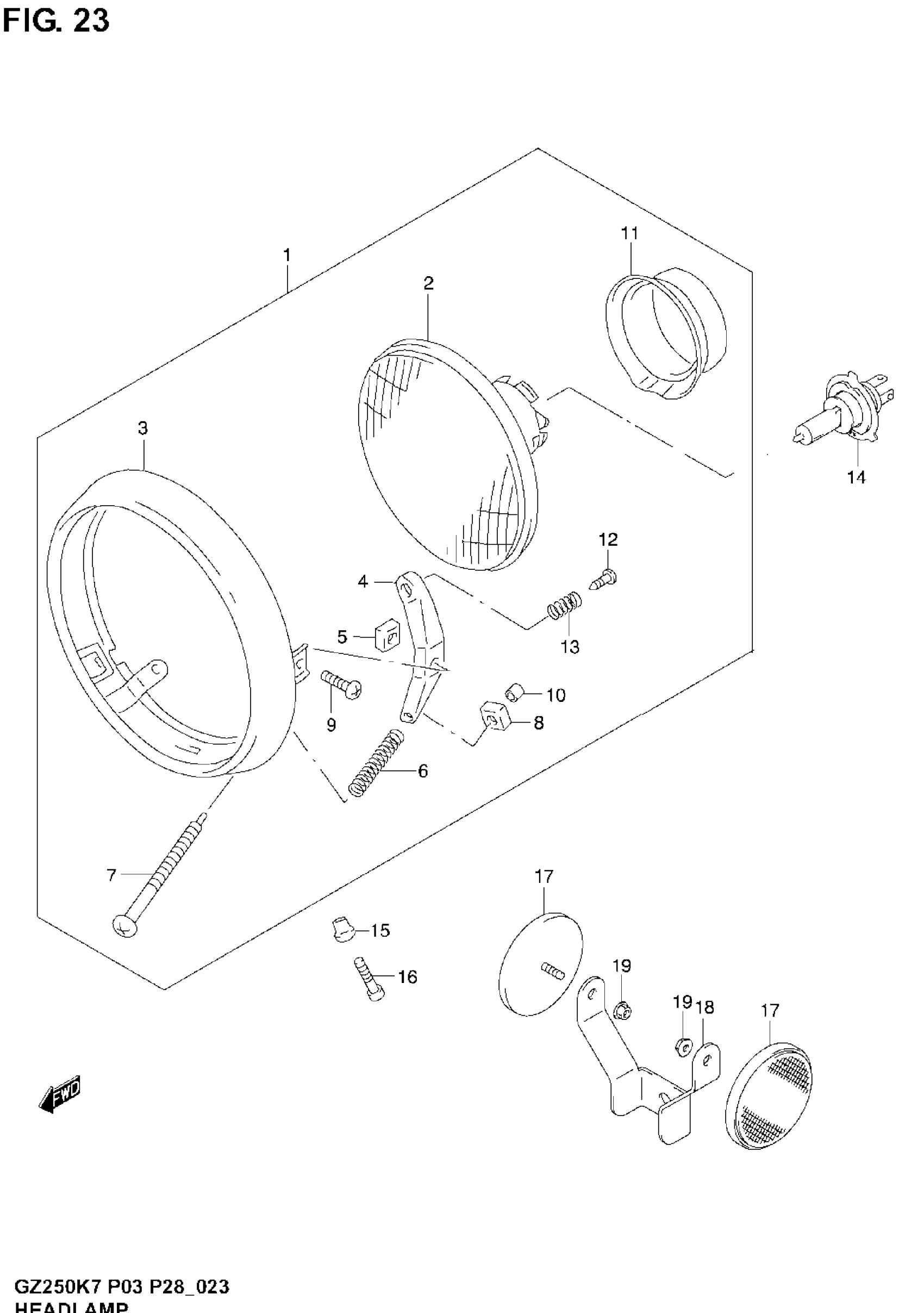

Suzuki GZ250 (2007) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 13

35100-13F01-999

$378.55

2

UNIT

35121-13F01

Unavailable

3

RIM

35111-13F00

$108.15

4

STAY

35131-13F00

Unavailable

5

NUT

35135-45900

$3.25

6

SPRING

35145-13F00

Unavailable

7

ADJUST SCREW

35151-45900

$3.65

8

.NUT

35152-45600

$3.47

9

SCREW

35181-13F00

Unavailable

10

CAP, SCREW

35165-13F00

Unavailable

11

COVER, SOCKET

35173-38A00

$16.87

12

SCREW

35161-13F00

Unavailable

13

SPRING

35154-13F00

$4.82

14

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

$25.15

15

SPACER, HEADLAMP

35192-13F00

$8.05

16

SCREW

02112-05167

$1.97

17

REFLEX REFLECTOR ASSY, FR SID This part replaces 35950-09EF0.

35950-14A11

$15.23

18

BRACKET FRONT, SIDE REFLECTOR

35956-13F10

Unavailable

19

NUT This part replaces 08316-10043.

08316-1004B

$3.15
