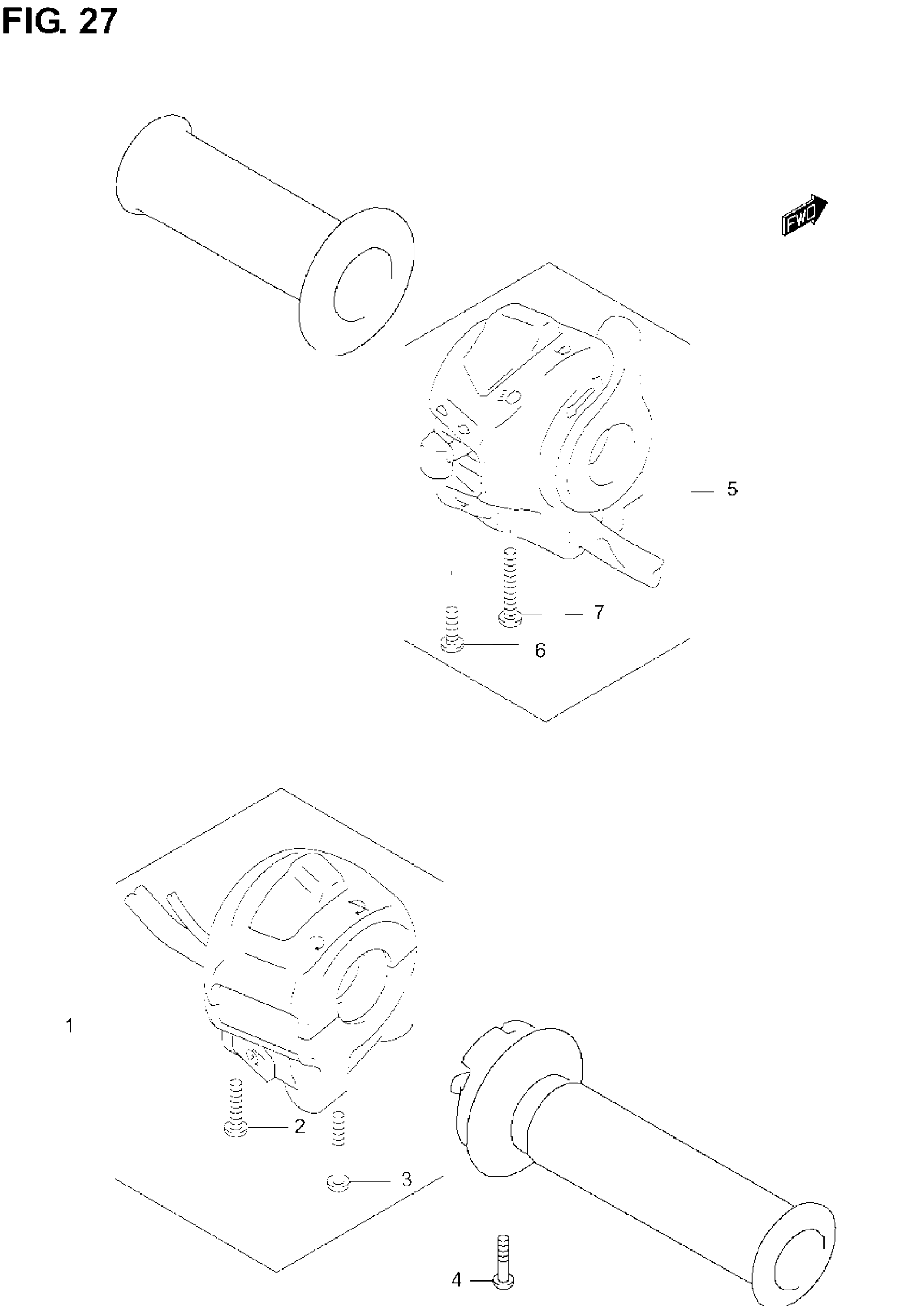

Suzuki GZ250 (2007) HANDLE SWITCH Diagram

#

Description

Price

1

SWITCH ASSY, HANDLE RH | Includes Item(s) 2 - 3

37200-13FB0

$45.73

2

SCREW

D2116-05305

$0.70

3

SCREW

D2116-05505

Unavailable

4

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

$1.49

5

SWITCH ASSY, HANDLE LH | Includes Item(s) 6 - 7

37400-13FB0

$63.64

6

SCREW, PIVOT This part replaces D2116-05255.

02112-0525A

$1.49

7

.SCREW This part replaces D2116-05455.

02112-0545B

$2.26
