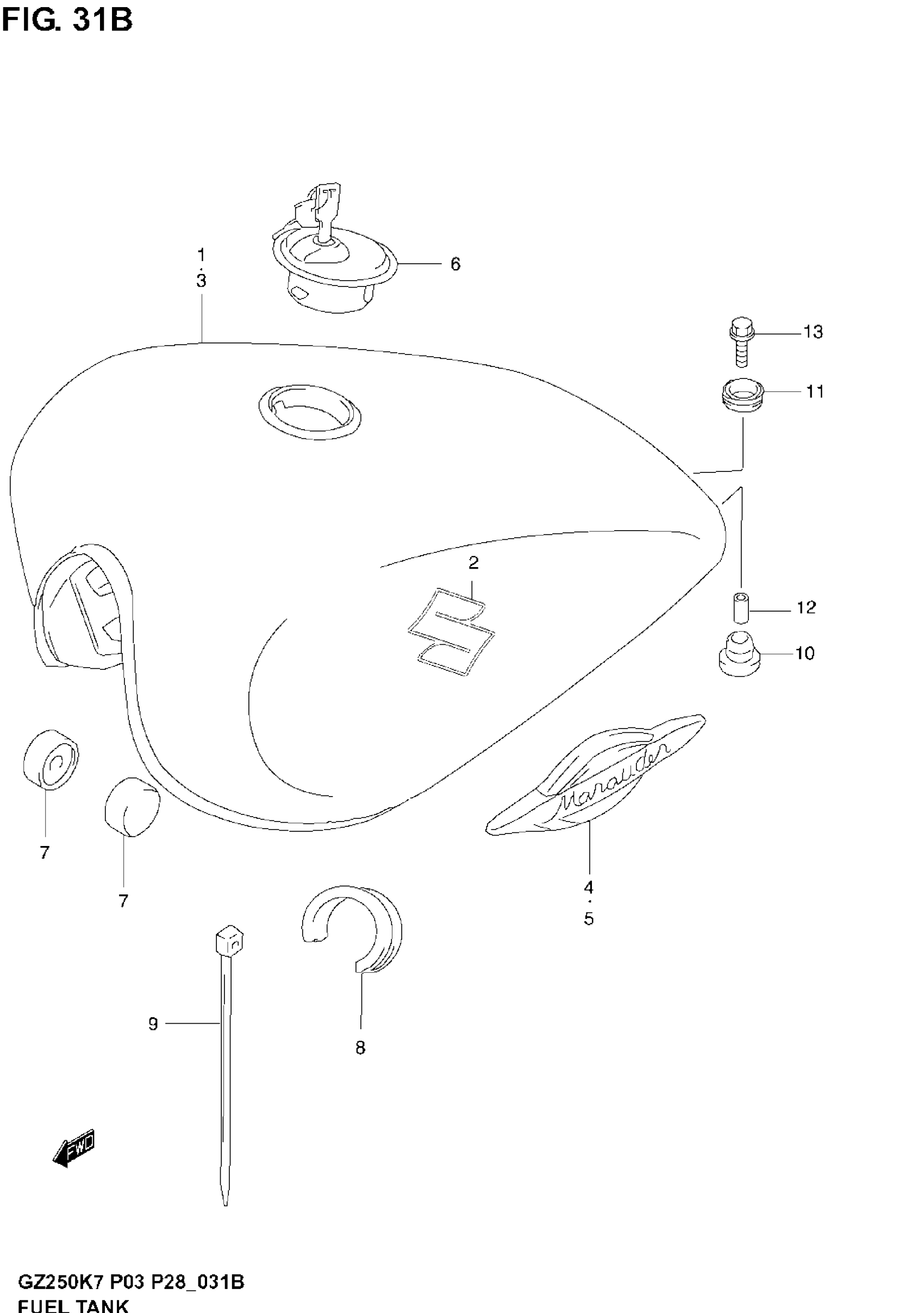

Suzuki GZ250 (2007) FUEL TANK (MODEL K5/K6) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | E3

44100-12FL0-Y7L

Unavailable

1

TANK ASSY, FUEL (SILVER) | MODEL K6 E3

44100-12FL0-YDV

Unavailable

1

TANK ASSY, FUEL (BLACK) | E33

44100-12FP0-Y7L

Unavailable

1

TANK ASSY, FUEL (SILVER) | MODEL K6 E33; Includes Item(s) 2

44100-12FP0-YDV

Unavailable

2

EMBLEM, "S" | E3, E33

68111-18G20

$32.30

3

TANK ASSY, FUEL (BLACK) | E28

44100-12FL0-Y7L

Unavailable

3

TANK ASSY, FUEL (BLUE) | MODEL K5 E28

44100-12FL0-YC2

Unavailable

3

TANK ASSY, FUEL (SILVER) | MODEL K6 E28

44100-12FL0-YDV

Unavailable

4

EMBLEM, FUEL TANK RH | E28

68111C12F00J000

Unavailable

5

EMBLEM, FUEL TANK LH | E28

68121C12F00J000

Unavailable

6

CAP SET,FUEL TA This part replaces 44200-12870.

44200-12871

$176.53

6

CAP SET,FUEL TA | E33 This part replaces 44200-38850.

44200-38852

$94.71

7

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

8

CUSHION,FUEL TA This part replaces 44541-03F00.

44541-03F01

$12.80

9

CLAMP This part replaces 09407-20405.

09407-25402

$4.64

10

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

11

CUSHION, FUEL TANK REAR

44512-42E00

$3.43

12

SPACER (6.5X9X18)

09180-06271

$2.35

13

BOLT This part replaces 01550-06303.

01550-0630A

$2.32
