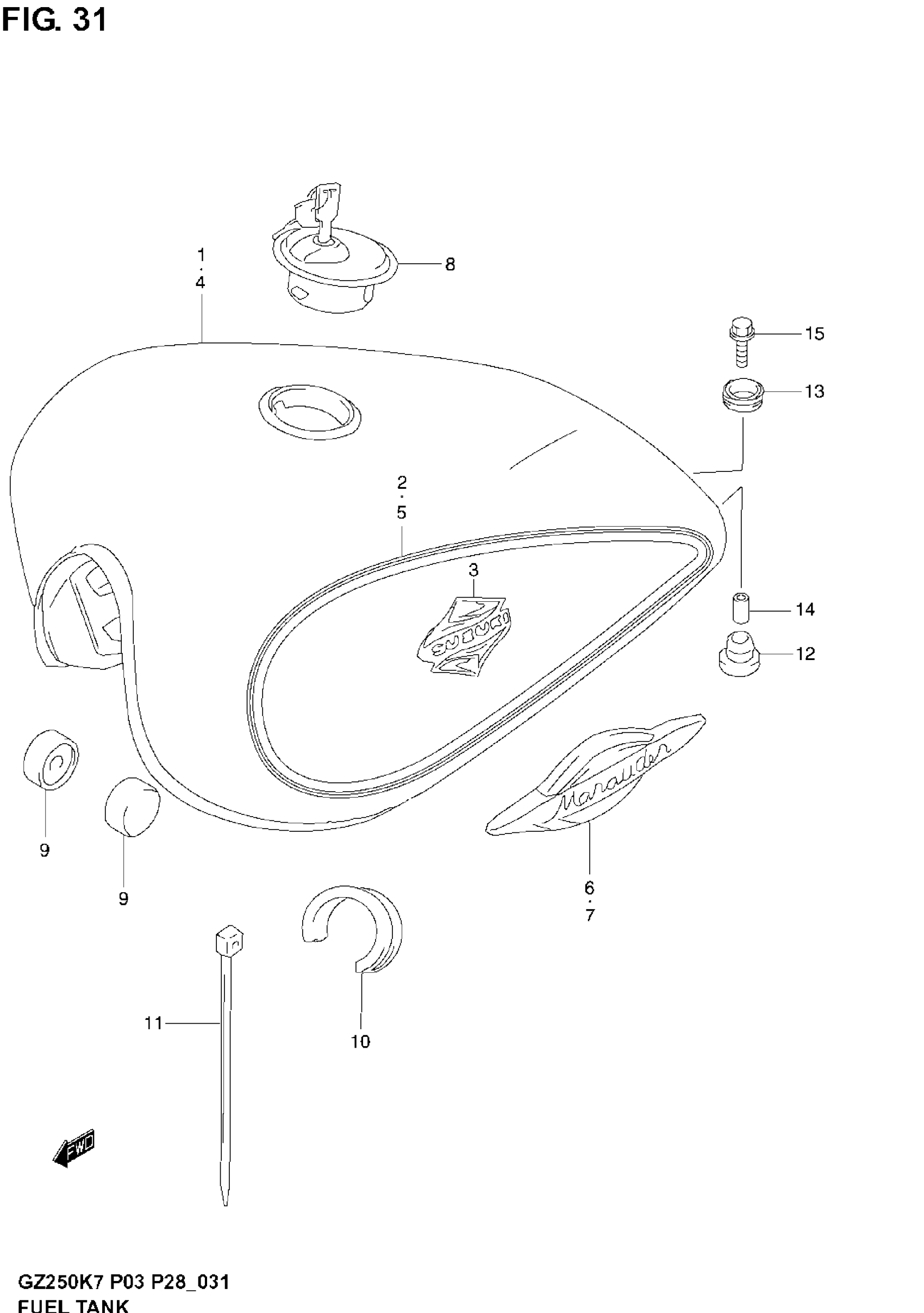

Suzuki GZ250 (2007) FUEL TANK (MODEL K3) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | E3

44100-12FG1-Y7L

Unavailable

1

TANK ASSY, FUEL (BLUE) | E3

44100-12FG1-Y7H

Unavailable

1

TANK ASSY, FUEL (BLACK) | E33

44100-12FF1-Y7L

Unavailable

1

TANK ASSY, FUEL (BLUE) | E33; Includes Item(s) 2 - 3

44100-12FF1-Y7H

Unavailable

2

TAPE SET, FUEL TANK | E3, E33 FOR Y7L

68110-12F50-LK2

Unavailable

2

TAPE SET, FUEL TANK | E3, E33 FOR Y7H

68110-12F50-LK3

Unavailable

3

EMBLEM, FUEL TANK | E3, E33 FOR Y7L

68111-38A21-CH1

Unavailable

3

EMBLEM, FUEL TANK | E3, E33 FOR Y7H

68111-38A21-LK4

Unavailable

4

TANK ASSY, FUEL (BLACK) | E28

44100-12FE1-Y7L

Unavailable

4

TANK ASSY, FUEL (BLUE) | E28; Includes Item(s) 5 - 5

44100-12FE1-Y7H

Unavailable

5

TAPE SET, FUEL TANK | E28 FOR Y7L

68110-12F50-LK2

Unavailable

5

TAPE SET, FUEL TANK | E28 FOR Y7H

68110-12F50-LK3

Unavailable

6

EMBLEM, FUEL TANK RH | E28

68111C12F00J000

Unavailable

7

EMBLEM, FUEL TANK LH | E28

68121C12F00J000

Unavailable

8

CAP SET,FUEL TA This part replaces 44200-12870.

44200-12871

$176.53

8

CAP SET,FUEL TA | E33 This part replaces 44200-38850.

44200-38852

$94.71

9

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

10

CUSHION,FUEL TA This part replaces 44541-03F00.

44541-03F01

$12.80

11

CLAMP This part replaces 09407-20405.

09407-25402

$4.64

12

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

13

CUSHION, FUEL TANK REAR

44512-42E00

$3.43

14

SPACER (6.5X9X18)

09180-06271

$2.35

15

BOLT This part replaces 01550-06303.

01550-0630A

$2.32
