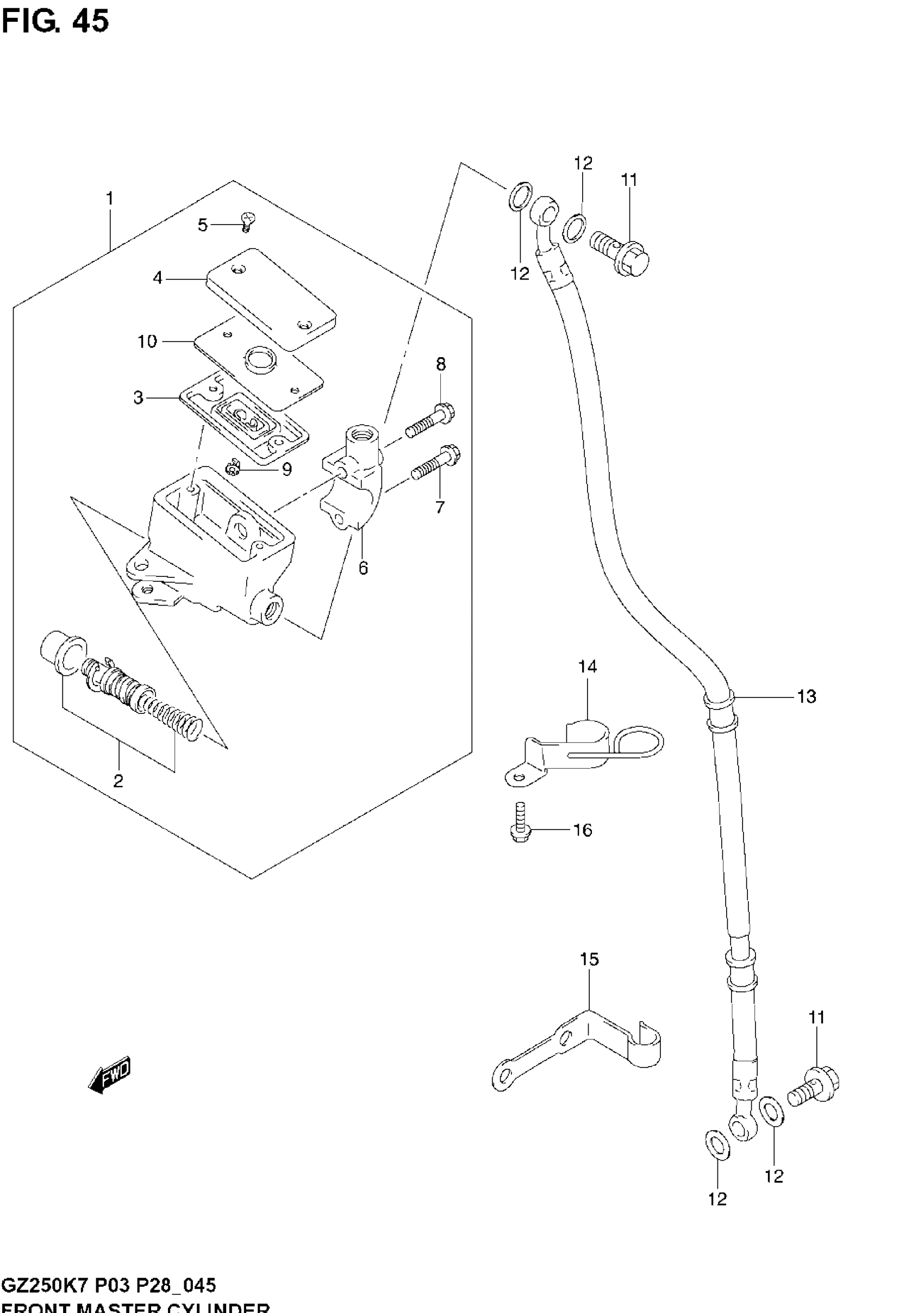

Suzuki GZ250 (2007) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 10 This part replaces 59600-0AEA0.

59600-45C10

$291.88

2

PISTON/CUP SET

59600-0AE00

Unavailable

3

DIAPHRAGM This part replaces 59667-0AE00.

59667-49460

$9.78

4

CAP

59669-0AE01

Unavailable

5

SCREW

69689-49300

$1.91

6

HOLDER

59671-0AE01

Unavailable

7

BOLT (6X25)

D1547-06255

Unavailable

8

BOLT, HOLDER (6X38) This part replaces 59675-0AE00.

59675-19C10

$4.82

9

NO DESCRIPTION AVAILABLE This part replaces 59664-35E50.

59664-02E10

Unavailable

10

PLATE, DIAPHRAGM This part replaces 59668-0AE00.

59668-41C00

$9.32

11

UNION This part replaces 09360-10041.

09360-10061

$6.43

12

WASHER (10X15X1.5)

09161-10009

$1.84

13

HOSE,FRONT BRAK This part replaces 59480-12FA0.

59480-12F01

Unavailable

14

CLAMP, BRAKE HOSE

59260-12F00

Unavailable

15

CLAMP, BRAKE HOSE

59268-12F00

Unavailable

16

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97
