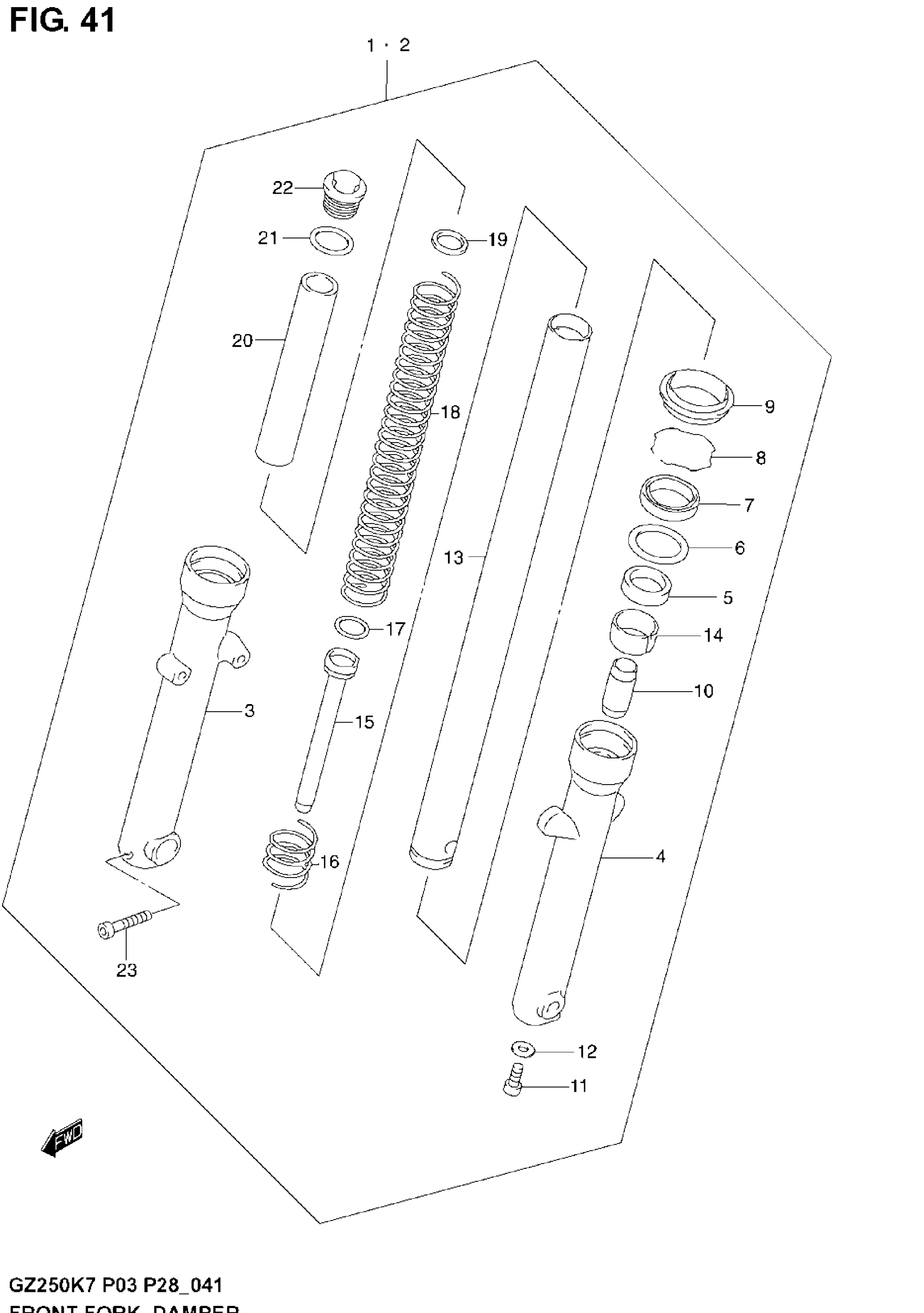

Suzuki GZ250 (2007) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-12FA0

Unavailable

2

DAMPER ASSY | Includes Item(s) 3 - 23 This part replaces 51104-12FA0.

51104-12FD0

Unavailable

3

TUBE, OUTER RH

51130-12FA0

Unavailable

4

TUBE, OUTER LH

51140-12FA0

Unavailable

5

BUSH, GUIDE This part replaces 51152-12F00.

51167-03B30

$20.80

6

SPACER, SEAL This part replaces 51168-12FA0.

51168-38A00

$6.72

7

SEAL, OIL This part replaces 51153-25D00.

51153-03B30

$18.51

8

RING, STOPPER This part replaces 51556-12FA0.

51156-03B30

$6.17

9

SEAL, DUST This part replaces 51173C25D00J000.

51173-25D00

$19.35

10

PIECE, OIL LOCK This part replaces 51195C25D00J000.

51195-25D00

$23.47

11

.BOLT, CENTER This part replaces 51147-42AA0.

51147-06F10

$5.98

12

O RING This part replaces 51148-31030.

51148-36011

$3.56

13

TUBE, INNER This part replaces 51110-12FA0.

51110-12FD0

$151.97

14

BUSH, SLIDE

51121-12FA0

$14.00

15

PIPE, SEAT

51146-12FA0

Unavailable

16

SPRING, REBOUND

51177-12FA0

Unavailable

17

RING, PISTON

51196-12FA0

$7.50

18

BOLT This part replaces 51171-12FA0.

07130-08357

$3.18

19

JOINT, SPRING

51192-12FA0

Unavailable

20

SPACER, SPRING This part replaces 51176C25D00J000.

51176-25D00

$11.65

21

O RING This part replaces 51117C25D00J000.

51117-25D00

$4.46

22

BOLT, FORK

51189-12FA0

Unavailable

23

BOLT This part replaces 51166-12FA0.

07130-08357

$3.18
