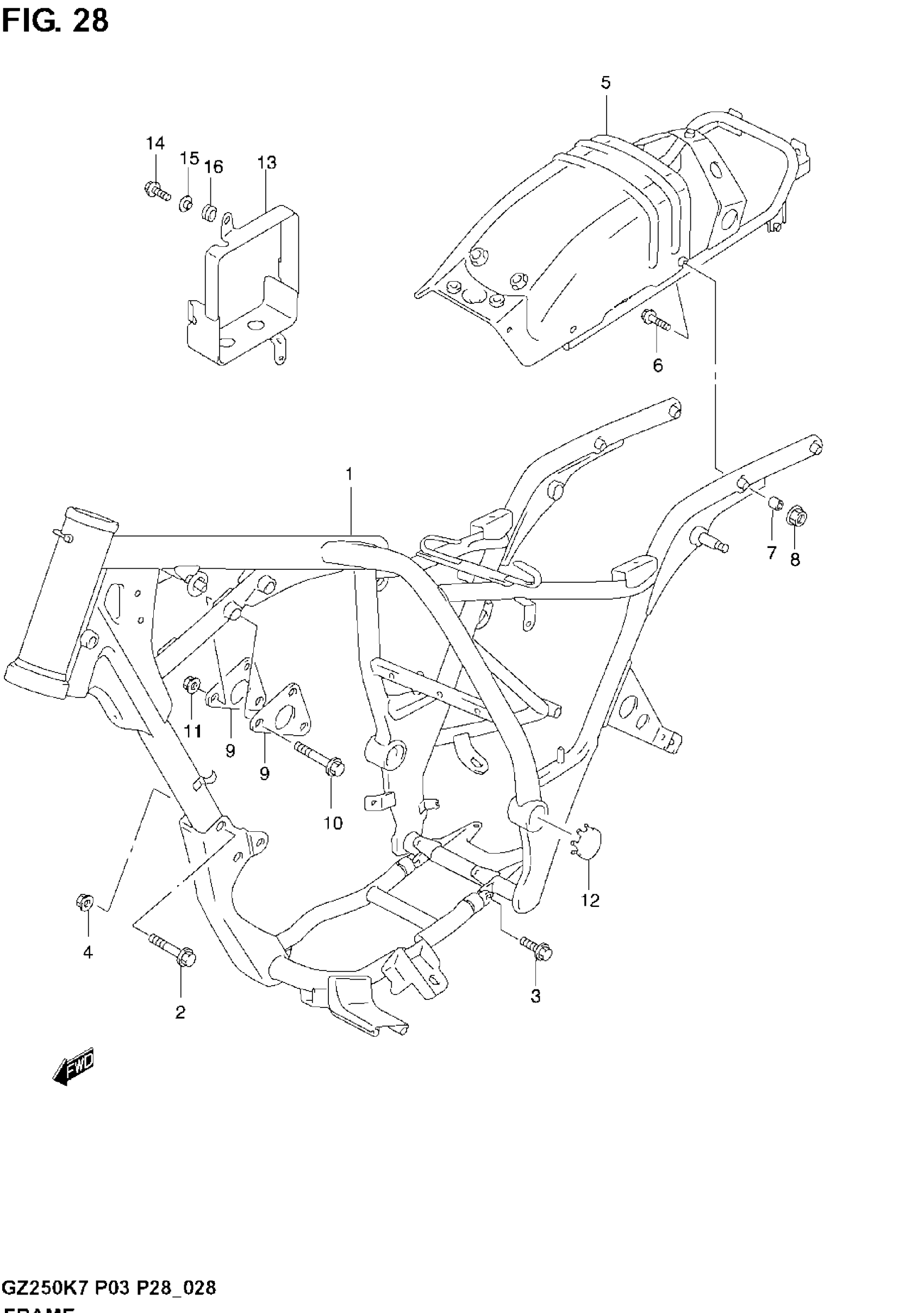

Suzuki GZ250 (2007) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-13F01-EE3

Unavailable

2

BOLT This part replaces 01550-08603.

01550-0860A

$4.17

3

BOLT This part replaces 01550-08253.

01550-0825A

$2.32

4

NUT This part replaces 08316-10083.

08316-1008B

$2.66

5

BRACE, REAR FRAME

41580-12FA0-EE3

Unavailable

6

.BOLT This part replaces 01550-08553.

01550-0855A

$3.05

7

SPACER

09180-08208

$7.47

8

NUT, BRACE

08313-20087

$2.19

9

PLATE, ENGINE MOUNT UPPER

41991-13FA0-EE3

Unavailable

10

BOLT (8X50)

09103-08289

$4.50

11

NUT This part replaces 08319-31088.

08319-3108A

$2.32

12

CAP, PIVOT

61222-38A01

$13.35

13

HOLDER, BATTERY (BLACK)

41540-12FA0-EE3

Unavailable

14

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

15

WASHER

09169-06065

$4.32

16

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97
