2007 Suzuki GZ250 Evapo System Diagram

← All diagrams

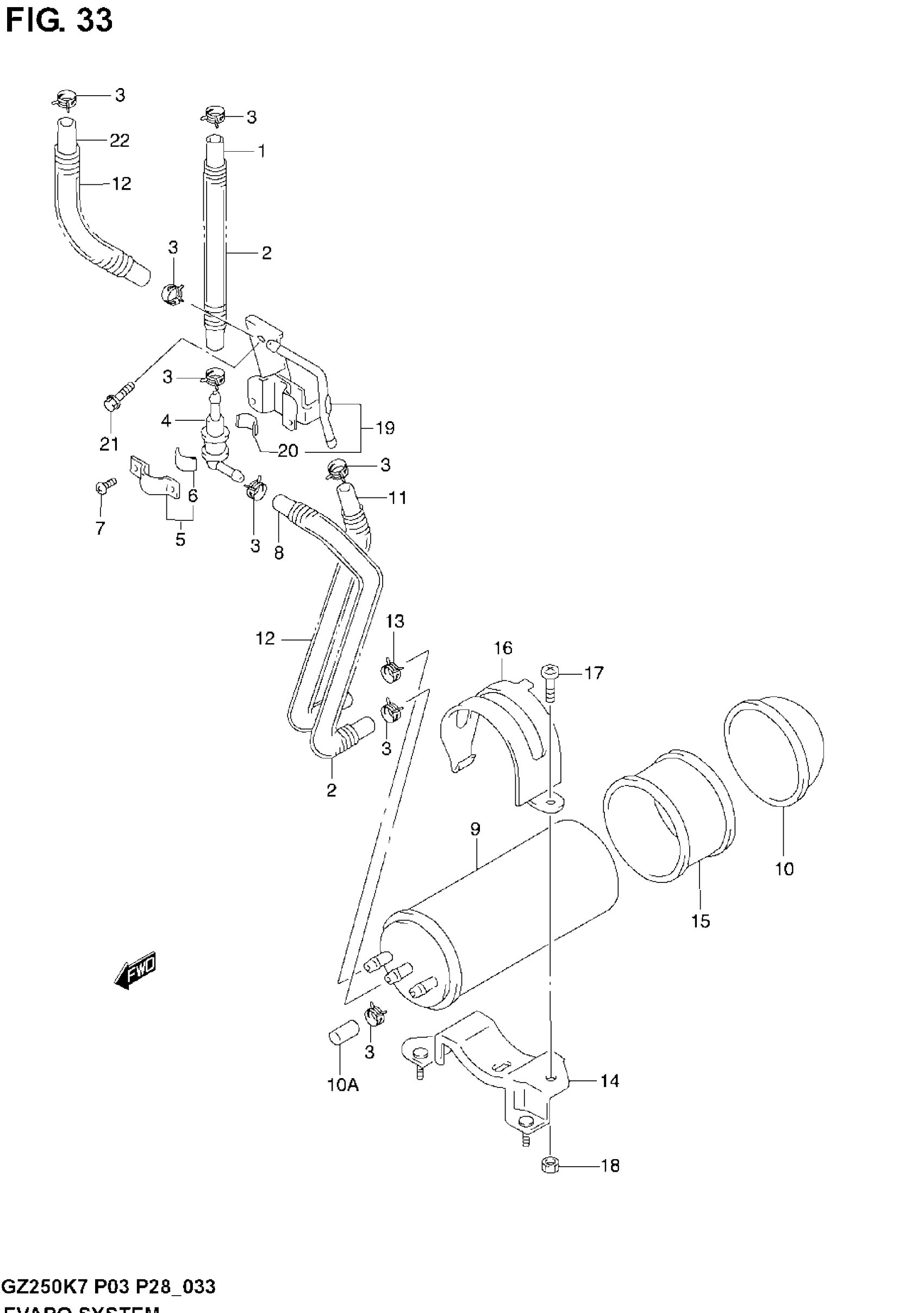

Find the part on the Evapo System diagram for your 2007 Suzuki GZ250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki GZ250 Evapo System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE, TANK & VALVE | L:600 -->240

09355-54116-600

1
Out of stock

2

SPRING

09440-13043

2
Out of stock

3

CLIP

09401-11413

8
Out of stock

4

VALVE FUEL TANK BREATHER

44240-17C00

1
Out of stock

5

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 6

44892-24A00

1
Out of stock

6

CUSHION (10X30X2)

44894-24A00

1
Out of stock

7

2

$1.79

In stock

8

HOSE, VALVE & CANISTER

44433-13F00

1
Out of stock

9

CANISTER ASSY CHARCOAL

17210-26E00

1
Out of stock

10

CAP CANISTER This part replaces 17211-48E00.

17211-48E01

1
Out of stock

10A

CAP, PARGE

09251-07003

1
Out of stock

11

HOSE, CANISTER & CARBURETOR

44434-13F00

1
Out of stock

12

SPRING

09440-13052

2
Out of stock

13

CLIP

09401-12404

1
Out of stock

14

BRACKET, CANISTER

44880-02F01

1
Out of stock

15

CUSHION CANISTER

44883-26E00

1
Out of stock

16

HOLDER

44882-02F01

1
Out of stock

17

SCREW This part replaces 02142-06123.

02142-0612A

1
Out of stock

18

NUT This part replaces 08316-10063.

08316-1006B

2
Out of stock

19

BRACKET, BREATHER VALVE | Includes Item(s) 20

44890-13F00

1
Out of stock

20

CUSHION (10X30X2)

44894-24A00

1
Out of stock

21

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

1
Out of stock

22

HOSE, CARBURETOR | L:600 -->130

09355-54115-600

1
Out of stock
