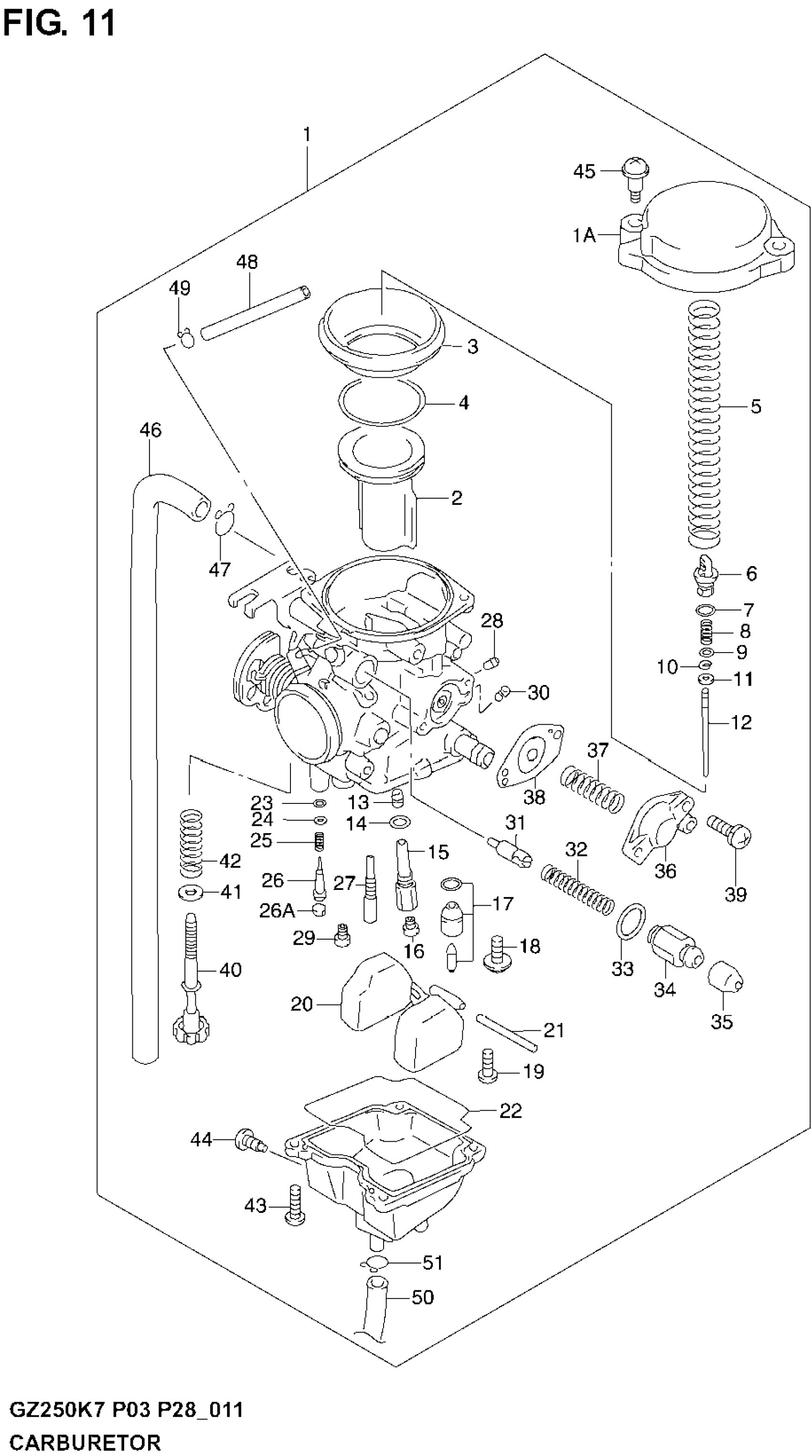

Suzuki GZ250 (2007) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY | E3, E28

13200-13F30

Unavailable

1

CARBURETOR ASSY | E33; Includes Item(s) 1A - 51

13200-13F40

Unavailable

1A

DIAPHRAGM COVER

13502-19E00

$31.86

2

VALVE, PISTON

13501-13F00

$101.87

3

DIAPHRAGM This part replaces 13507-19E00.

13507-19E01

$25.98

4

RING

13504-16E00

$7.03

5

SPRING

13573-04F00

$15.43

6

HOLDER

13418-33E00

$5.20

7

O RING (D:1.9, ID:4.8)

09280-05004

$2.17

8

SPRING

13481-13F00

$4.92

9

WASHER

13382-12F40

$4.92

10

E RING, MULTIPLE JET NOZZLE

13394-17E60

$1.89

11

RING

13387-13F00

$7.48

12

NEEDLE, JET (5C65-1)

13383-13F30

$23.08

13

JET, NEEDLE (P-0M)

09494-00921

$38.54

14

.O RING This part replaces 13246-43010.

13246-43011

$3.97

15

HOLDER, JET

13385-13F00

$38.53

16

JET, MAIN (120)

09491-24026

$18.87

17

VALVE ASSY,NEED This part replaces 13370-04F00.

13370-04F01

$71.12

18

SCREW

13602-05A10

$3.26

19

SCREW This part replaces 02112-04083.

02112-0408A

$1.09

20

FLOAT ASSY

13250-04F00

$31.80

21

.PIN, FLOAT

13254-01010

$3.41

22

GASKET

13258-04F00

$9.06

23

O-RING This part replaces 13295-29900.

13295-29901

$3.97

24

WASHER

13291-29900

$1.87

25

SPRING,THROTTLE SCREW

13268-48700

$3.97

26

ADJUSTER (1 1/2)

13279-13F00

$14.18

26A

PLUG

13281-05A00

$4.21

27

JET

09492-17016

$18.75

28

JET, MAIN (87.5)

09492-87002

$19.22

29

JET, MAIN (52.5)

09491-52003

$13.57

30

JET, PILOT AIR (120)

09493-24013

$18.33

31

PLUNGER

13411-24D00

$30.40

32

SPRING

13417-07F00

$6.61

33

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.89

34

HOLDER, GUIDE

13418-07F00

$16.05

35

.CAP This part replaces 13681-04010.

13681-04011

$4.51

36

COVER ASSY

13502-10F00

$44.80

37

SPRING

13271-13F00

$5.17

38

DIAPHRAGM ASSY This part replaces 13480-13F00.

13480-13F01

$23.17

39

SCREW

13601-04148

$2.80

40

ADJUST SCREW ASSY

13267-13F00

$17.22

41

PACKING

13285-07F00

$3.10

42

SPRING

13342-82370

$8.77

43

SCREW

02112-04107

$1.55

44

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.56

45

SCREW

13247-33E00

$2.80

46

HOSE

13686-13F00

Unavailable

47

CLIP

13671-06A10

Unavailable

48

HOSE This part replaces 13686-13F10.

13686-13F11

$22.42

49

CLIP

13671-13F00

$1.49

50

HOSE(4.5X8X650) This part replaces 13683-20B00.

13683-20B01

$23.40

51

CLIP

09401-08410

$1.88
