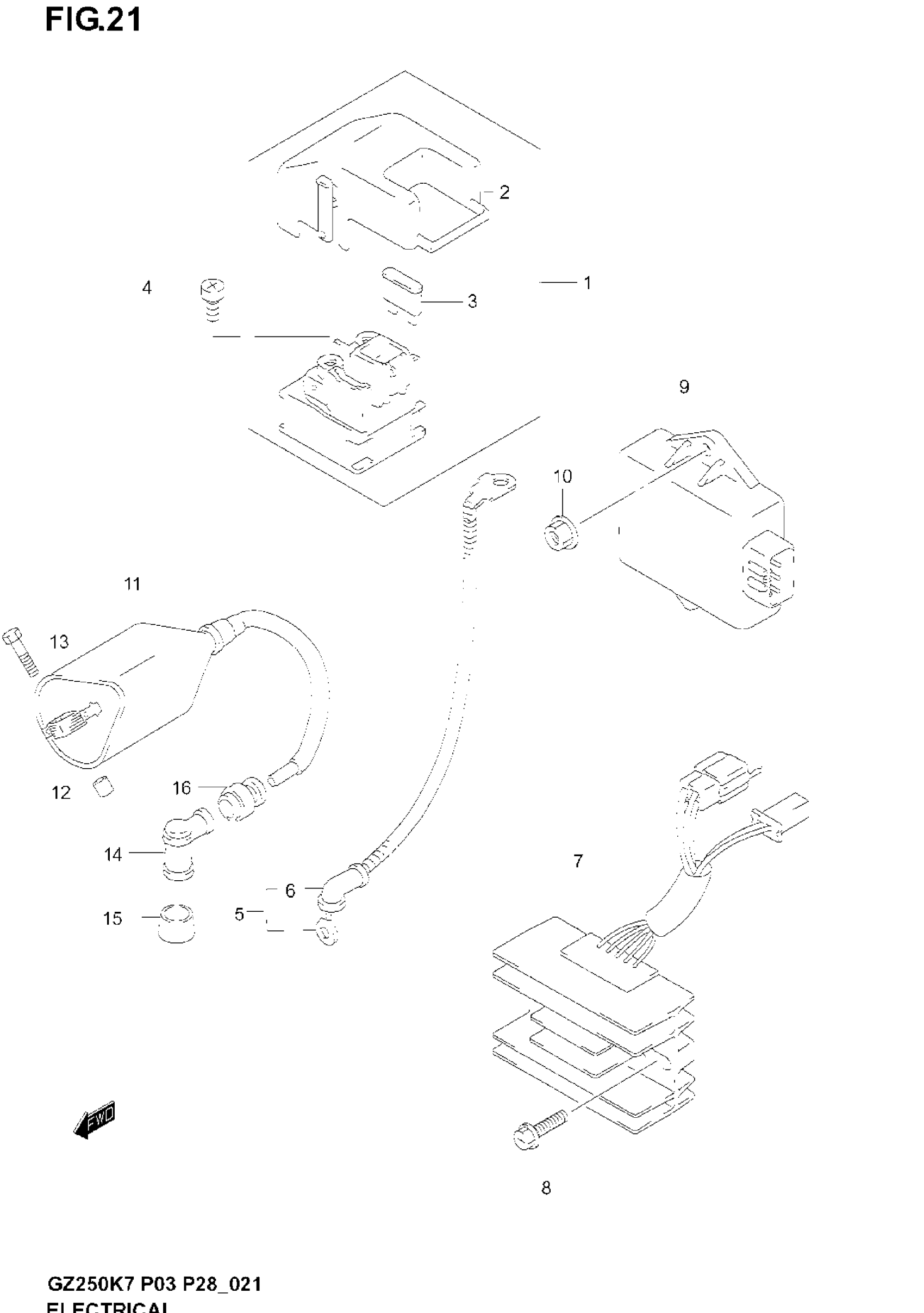

Suzuki GZ250 (2007) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STAR | Includes Item(s) 2 - 3 This part replaces 31800C47E00J000.

31800-47E01

$80.01

2

.COVER This part replaces 31861C47E00J000.

31861-47E00

$16.15

3

.FUSE (20A) This part replaces 09481C20102J000.

09481-20102

$2.98

4

SCREW (6X8)

09128-06013

$1.49

5

WIRE, STARTER MOTOR LEAD | MODEL K3

33810-13F00

Unavailable

5

WIRE, STARTER MOTOR LEAD | MODEL K5/K6/K7; Includes Item(s) 6

33810-0AE10

Unavailable

6

CAP, STARTER MOTOR This part replaces 31861C48B10J000.

31861-48B10

$6.55

7

RECTIFIER ASSY, REGULATOR

32800-29B00

$278.28

8

BOLT This part replaces 02162-06203.

02162-0620C

$1.71

9

IGNITER ASSY

32900-13F00

$697.98

10

NUT This part replaces 08316-10063.

08316-1006B

$2.50

11

COIL ASSY,IGNIT This part replaces 33410-13F00.

33410-13F01

$124.23

12

SPACER (6.2X12X14)

09180-06174

$5.57

13

BOLT

01500-05353

Unavailable

14

CAP, SPARK PLUG

33510-45010

$24.99

15

SEAL, SPARK PLUG

33541-38210

$4.68

16

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34
