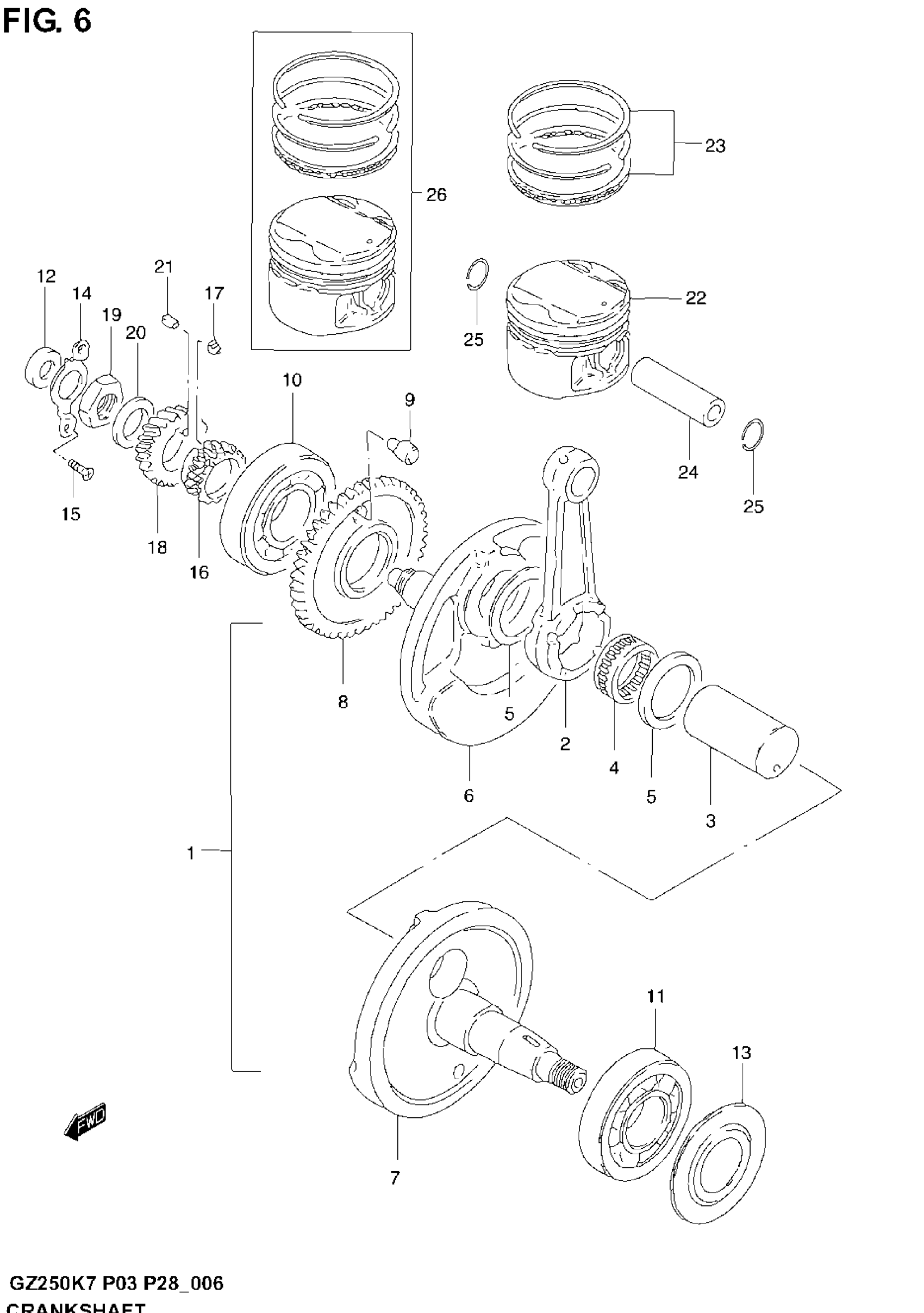

Suzuki GZ250 (2007) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | MODEL K3

12200-38320

Unavailable

1

CRANKSHAFT ASSY | MODEL K4/K5/K6/K7; Includes Item(s) 2 - 9 This part replaces 12200-26G00.

12200-26G01

Unavailable

2

ROD, CONNECTING

12161-38201

Unavailable

3

PIN, CRANK

12211-38211

Unavailable

4

BEARING (31X39X21)

09263-31004

$64.62

5

WASHER (31X48.5X1)

09160-31002

$7.82

6

CRANKSHAFT, RH

12221-38200

Unavailable

7

CRANKSHAFT, LH | MODEL K3

12261-38300

Unavailable

7

CRANKSHAFT, LH | MODEL K4/K5/K6/K7

12261-26G00

Unavailable

8

GEAR, CRANK BALANCER DRIVE

12661-38202

Unavailable

9

PIN

09209-12006

Unavailable

10

BEARING (30X72X19)

09262-30077

$58.43

11

BEARING (35X80X21)

09262-35028

Unavailable

12

OIL SEAL (14X26X6)

09282-14001

Unavailable

13

WASHER, CRANKSHAFT OIL SEALING

12521-38300

Unavailable

14

RETAINER, CRANKSHAFT OIL SEAL

12548-38200

Unavailable

15

SCREW This part replaces 02122-05103.

02122-0510A

Unavailable

16

SPROCKET, CAM CHAIN DRIVE

12731-38200

Unavailable

17

KEY, SPROCKET

12749-32400

Unavailable

18

GEAR, PRIMARY DRIVE (NT:21)

21111-38200

Unavailable

19

NUT This part replaces 09140-20008.

09140-20013

$4.26

20

WASHER

09164-20003

$3.85

21

KEY

09421-07002

Unavailable

22

PISTON

12111-38201-0F0

$91.88

23

RING SET, PISTON | MODEL K3

12140-49270

$44.54

23

RING SET, PISTON | MODEL K4/K5/K6/K7

12140-49280

$53.13

24

PIN, PISTON

12151-15501

$17.37

25

SNAP RING

09381-18002

$1.67

26

PISTON SET (OS:0.5) | OPT

12100-38200-050

$161.73

26

PISTON SET (OS:0.5) | OPT

12100-38210-050

$194.25
